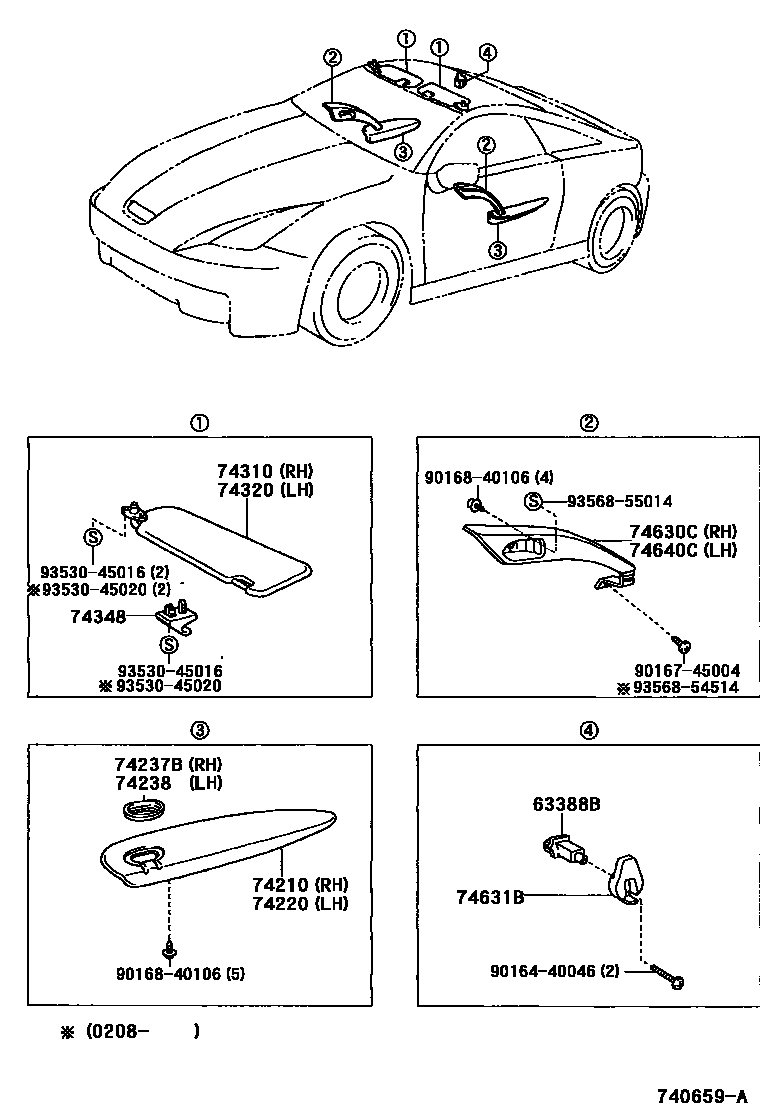

Toyota CELICA — ARMREST & VISOR

63388BSTOPPER, ROOF HEADLINING TRIM CLIP

main63388-20040×2iZZT23#199908-200208

74210ARMREST ASSY, FRONT, RH

main74210-20240-C0iZZT23#199908-200208

BLACK,TRIM2#,20,21,22

74220ARMREST ASSY, FRONT, LH

main74220-20240-C0iZZT23#199908-200208

BLACK,TRIM2#,20,21,22

74237BCAP, DOOR ARMREST BASE

main74615-20020iZZT23#199908-200208

74238CAP, DOOR ARMREST BASE

main74616-20010iZZT23#199908-200208

74310VISOR ASSY, RH

main74310-2D210-B0iZZT230..RHD199908-200008

LT. GRAY,TRIM2#,20,21,22

main74310-2D230-B0iZZT230..LHD199908-200008

LT. GRAY,TRIM2#,20,21,22

main74310-2D260-B0iZZT23#..RHD200008-200208

LT. GRAY,TRIM2#,20,21,22

main74310-2D270-B0iZZT23#..LHD200008-200208

LT. GRAY,TRIM2#,20,21,22

main74310-2D320-B1iZZT23#..RHD200208-200310

LT.GRAY,TRIM20,21,22,23

main74310-2D321-B1iZZT23#..RHD200310-200509

LT.GRAY,TRIM20,21,22,23

main74310-2D350-B1iZZT23#..LHD200208-200310

LT.GRAY,TRIM20,21,22,23

main74310-2D351-B1iZZT23#..LHD200310-200509

LT.GRAY,TRIM20,21,22,23

74320VISOR ASSY, LH

main74320-2D060-B0iZZT230..RHD199908-200008

LT. GRAY,TRIM2#,20,21,22

main74320-2D080-B0iZZT230..LHD199908-200008

LT. GRAY,TRIM2#,20,21,22

main74320-2D110-B0iZZT23#..RHD200008-200208

LT. GRAY,TRIM2#,20,21,22

main74320-2D120-B0iZZT23#..LHD200008-200208

LT. GRAY,TRIM2#,20,21,22

main74320-2D160-B1iZZT23#..RHD200208-200310

LT.GRAY,TRIM20,21,22,23

main74320-2D161-B1iZZT23#..RHD200310-200509

LT.GRAY,TRIM20,21,22,23

main74320-2D170-B1iZZT23#..LHD200208-200310

LT.GRAY,TRIM20,21,22,23

main74320-2D171-B1iZZT23#..LHD200310-200509

LT.GRAY,TRIM20,21,22,23

74348HOLDER, VISOR

main74348-12030-B0×2iZZT23#199908-200208

LT.GRAY,TRIM2#,20,21,22

main74348-12030-B5×2iZZT23#200208-200407

LT.GRAY,TRIM20,21,22,23

74630CGRIP ASSY, DOOR ASSIST, RH

main74630-20060-C0iZZT23#199908-200208

BLACK,TRIM2#,20,21,22

74631BHOOK, COAT

main74631-20100-B0×2iZZT23#199908-200208

AMETHYST,TRIM2#,20,21,22

main74631-20100-B2×2iZZT23#200208-200509

DK.GRAY,TRIM20,21,22,23

74640CGRIP ASSY, DOOR ASSIST, LH

main74640-20080-C0iZZT23#199908-200208

BLACK,TRIM2#,20,21,22

9016440046

main90164-40046

9016745004

main90167-45004

9016840106

main90168-40106

9353045016

main93530-45016

9353045020

main93530-45020

9356854514

main93568-54514

9356855014

main93568-55014

18 parts on this diagram · 1 diagram in section
