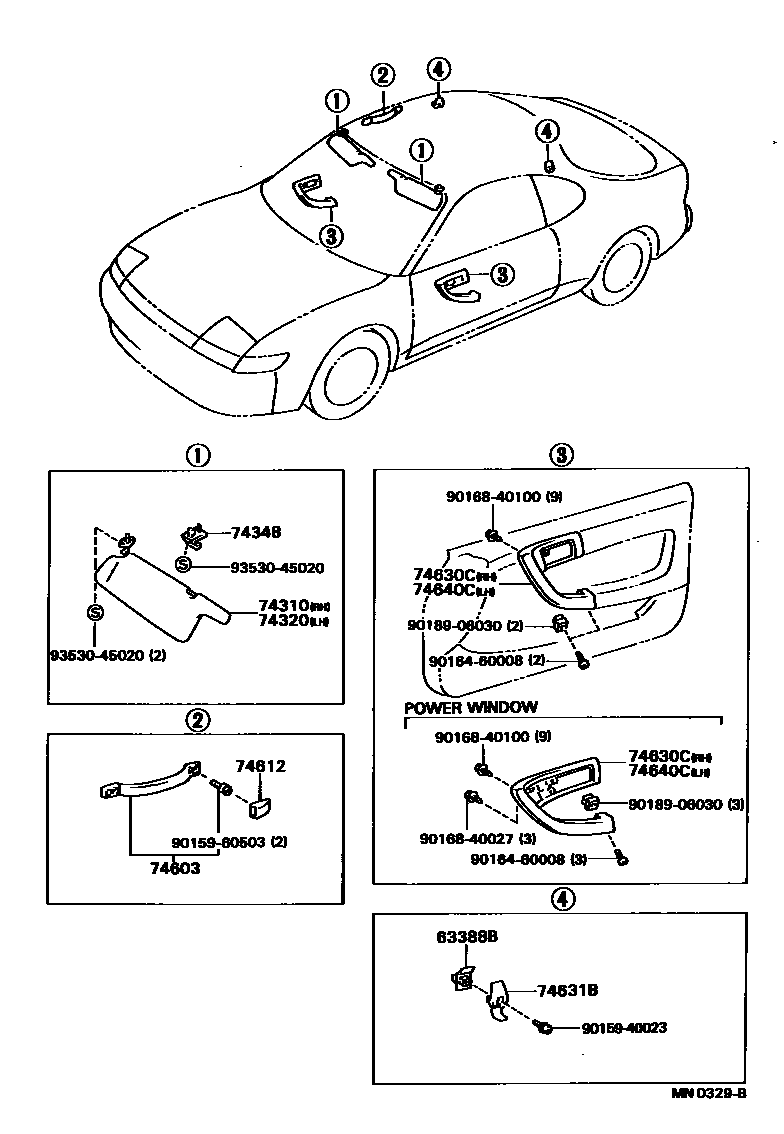

Toyota CELICA — ARMREST & VISOR

63388BSTOPPER, ROOF HEADLINING TRIM CLIP

main63388-20020×2iAT180,ST18#..CP,LB198910-199311

74310VISOR ASSY, RH

main74310-20830-03iAT180198910-199311

SHADOW GRAY,TRIM1#

main74310-20830-04iAT180199108-199311

W(TILT STEERING & AIR BACK SYSTEM),DARK BLUE,TRIM8#

main74310-20870-03iST18#..LHD..LB198910-199311

SHADOW GRAY,TRIM1#

main74310-20870-04iST182..LHD..LB198910-199311

W(SUNROOF),DARK BLUE,TRIM8#

main74310-2B010-03iST182..RHD..LB198910-199311

SHADOW GRAY,TRIM1#

main74310-2B010-04iST182..RHD..LB198910-199311

DARK BLUE,TRIM8#

main74310-2B030-03iST185..RHD198910-199311

SHADOW GRAY,TRIM1#

main74310-2B080-03iST182..RHD..CVT199010-199109

SHADOW GRAY,TRIM1#

main74310-2B120-03iST182..LHD..CVT199010-199109

SHADOW GRAY,TRIM1#

main74310-2B120-B0iST182..CVT199109-199311

SHADOW GRAY,TRIM1#

main74310-2B190-B0iST182..RHD..LB199108-199311

W(AIR BACK SYSTEM),SHADOW GRAY,TRIM1#

main74310-2B190-J0iST182..RHD..LB199108-199311

W(AIR BACK SYSTEM),DARK BLUE,TRIM8#

74320VISOR ASSY, LH

main74320-20700-03iST182..LHD..CVT199010-199109

SHADOW GRAY,TRIM1#

main74320-20700-B0iST182..CVT199109-199311

SHADOW GRAY,TRIM1#

main74320-20780-03iAT180198910-199311

SHADOW GRAY,TRIM1#

main74320-20780-04iAT180198910-199311

DARK BLUE,TRIM8#

main74320-20820-03iST182..LHD..LB198910-199311

SHADOW GRAY,TRIM1#

main74320-20820-04iST182..LHD..LB198910-199311

W(SUNROOF),DARK BLUE,TRIM8#

main74320-20830-03iST185..LHD198910-199311

SHADOW GRAY,TRIM1#

main74320-20840-03iST18#..RHD..LB199008-199311

SHADOW GRAY,TRIM1#

main74320-20840-04iST182..RHD..LB198910-199311

DARK BLUE,TRIM8#

main74320-20870-03iST182..RHD..CVT199010-199109

SHADOW GRAY,TRIM1#

main74320-20880-B0iAT180199108-199311

W(AIR BACK SYSTEM),SHADOW GRAY,TRIM1#

main74320-20880-J0iAT180199108-199311

W(AIR BACK SYSTEM),DARK BLUE,TRIM8#

main74320-2B010-B0iST182..LHD..LB199108-199311

W(SUNROOF & AIR BACK SYSTEM),SHADOW GRAY,TRIM1#

main74320-2B010-J0iST182..LHD..LB199108-199311

W(SUNROOF & AIR BACK SYSTEM),DARK BLUE,TRIM8#

74348HOLDER, VISOR

main74348-12020-53×2iST182..CVT199010-199311

SHADOW GRAY,TRIM1#

sub74348-60010

sub74348-26020

main74348-20040-02×2iST182..LB;ST185..RHD199008-199108

RED,TRIM1#

main74348-20040-03×2iAT180,ST18#..CP,LB198910-199311

LIGHT GRAY,TRIM1#

main74348-20040-04×2iAT180,ST182..CP,LB198910-199311

LIGHT BLUE,TRIM8#

74603GRIP SUB-ASSY, ASSIST, FRONT

main74610-22050-03iAT180,ST18#..CP,LB198910-199311

LIGHT GRAY,TRIM1#

sub74610-17020

main74610-22050-14iAT180,ST182..CP,LB198910-199311

DARK BLUE,TRIM8#

sub74610-17020

74612COVER, ASSIST GRIP

main74612-20050×2iST185199309-199311

main74612-20050-03×2iAT180,ST18#..CP,LB199107-199108

SHADOW GRAY,TRIM1#

main74612-20050-04×2iAT180,ST182..CP,LB199109-199311

DARK BLUE,TRIM8#

main74612-22050-13×2iAT180,ST18#198910-199004

LIGHT GRAY,TRIM1#

main74612-22050-24×2iAT180,ST182198910-199004

DARK BLUE,TRIM8#

74630CGRIP ASSY, DOOR ASSIST, RH

main74630-20030-03iAT180,ST182..LHD199208-199311

SHADOW GRAY,TRIM1#

main74630-20030-04iAT180,ST182..LHD..(CP,LB)199208-199311

DARK BLUE,TRIM8#

main74630-20040-03iST185..LHD198910-198911

SHADOW GRAY,TRIM1#

main74630-20040-04iAT180,ST182..LHD..(CP,LB)199208-199311

W(POWER WINDOW),DARK BLUE,TRIM8#

74631BHOOK, COAT

main74631-20060-03×2iAT180,ST18#..CP,LB198910-199309

SHADOW GRAY,TRIM1#

main74631-20060-04×2iAT180,ST182..CP,LB198910-199311

DARK BLUE,TRIM8#

74640CGRIP ASSY, DOOR ASSIST, LH

main74640-20030-03iAT180,ST182198910-199208

SHADOW GRAY,TRIM1#

main74640-20030-04iAT180,ST182..CP,LB198910-199208

DARK BLUE,TRIM8#

main74640-20040-03iST182198910-199208

SHADOW GRAY,TRIM1#

main74640-20040-04iST182..RHD199208-199311

DARK BLUE,TRIM8#

9015940023

main90159-40023

9015960503

main90159-60503

9016460008

main90164-60008

9016840027

main90168-40027

9016840100

main90168-40100

9018906030

main90189-06030

9353045020

main93530-45020

16 parts on this diagram · 1 diagram in section
