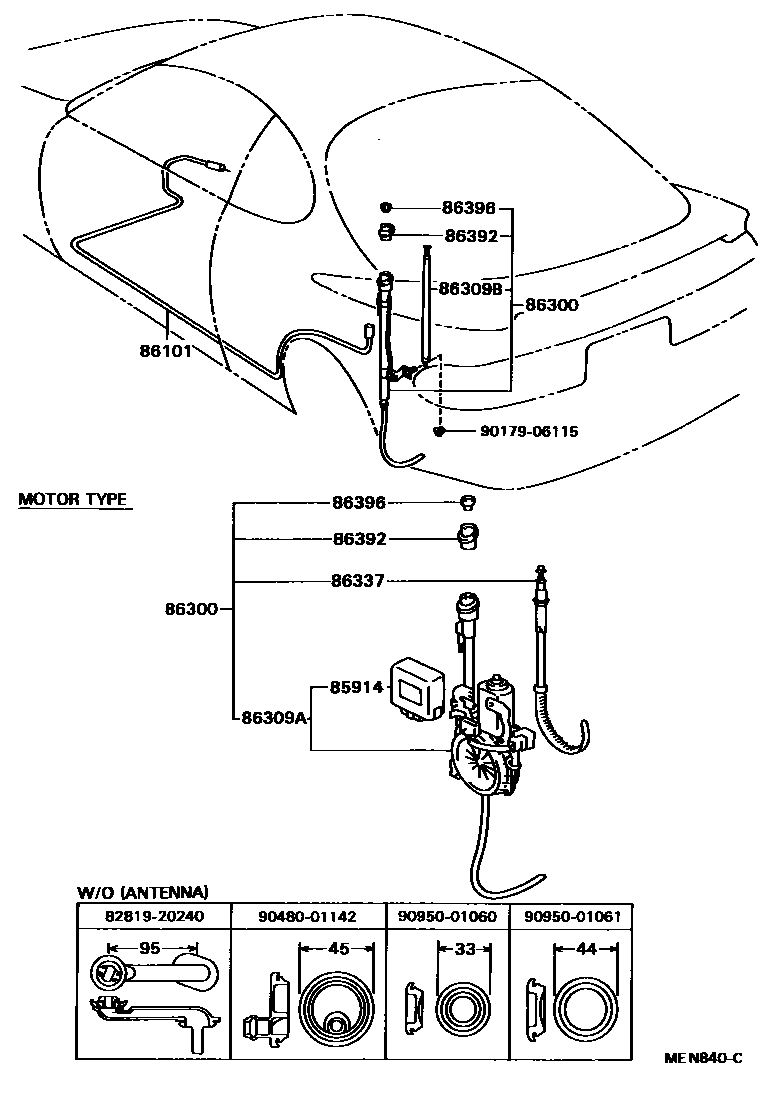

Toyota CELICA — ANTENNA

85914RELAY, MOTOR ANTENNA CONTROL

main85914-30010i198911-199311

86101CORD SUB-ASSY, ANTENNA

main86101-20380i198910-198911

main86101-20480i199010-199311

86300ANTENNA ASSY, W/HOLDER

main86300-20670i198910-199002

MOTOR TYPE

main86300-20671i199002-199311

MOTOR TYPE

main86300-20680i198910-198911

MANUAL TYPE

main86300-20681i199108-199311

MANUAL TYPE

main86300-20690i198910-199108

MANUAL TYPE

main86300-20691i199108-199208

MANUAL TYPE

main86300-20700i198910-199208

MOTOR TYPE

86309APOLE SUB-ASSY, MOTOR ANTENNA

main86309-20220i198910-199311

main86309-20230i198910-199002

main86309-20231i199002-199311

86309BPOLE SUB-ASSY, PULL TOP ANTENNA

main86309-20200i198910-199108

main86309-20201i199108-199208

main86309-20210i198910-199108

main86309-20211i199108-199311

86337ROD & PIPE, SEALED W/CABLE

main86337-32200i198910-198911

86392ORNAMENT, ANTENNA

main86392-20110i198910-199208

MANUAL TYPE

main86392-20120i198910-198911

MANUAL TYPE

main86392-20130i198910-199208

MOTOR TYPE

main86392-20140i198910-199311

MOTOR TYPE

86396NUT, ANTENNA

main86396-12020i198910-198911

MANUAL TYPE

main86396-50010i198911-199311

8281920240GROMMET, WIRING HARNESS

main82819-20240

9017906115

main90179-06115

9048001142

main90480-01142

9095001060

main90950-01060

9095001061

main90950-01061

13 parts on this diagram · 2 diagrams in section

ANTENNA for Toyota CELICA

This section contains 13 genuine Toyota parts for the ANTENNA system of the Toyota CELICA. Key components include: RELAY, MOTOR ANTENNA CONTROL, CORD SUB-ASSY, ANTENNA, ANTENNA ASSY, W/HOLDER, POLE SUB-ASSY, MOTOR ANTENNA, POLE SUB-ASSY, PULL TOP ANTENNA.
