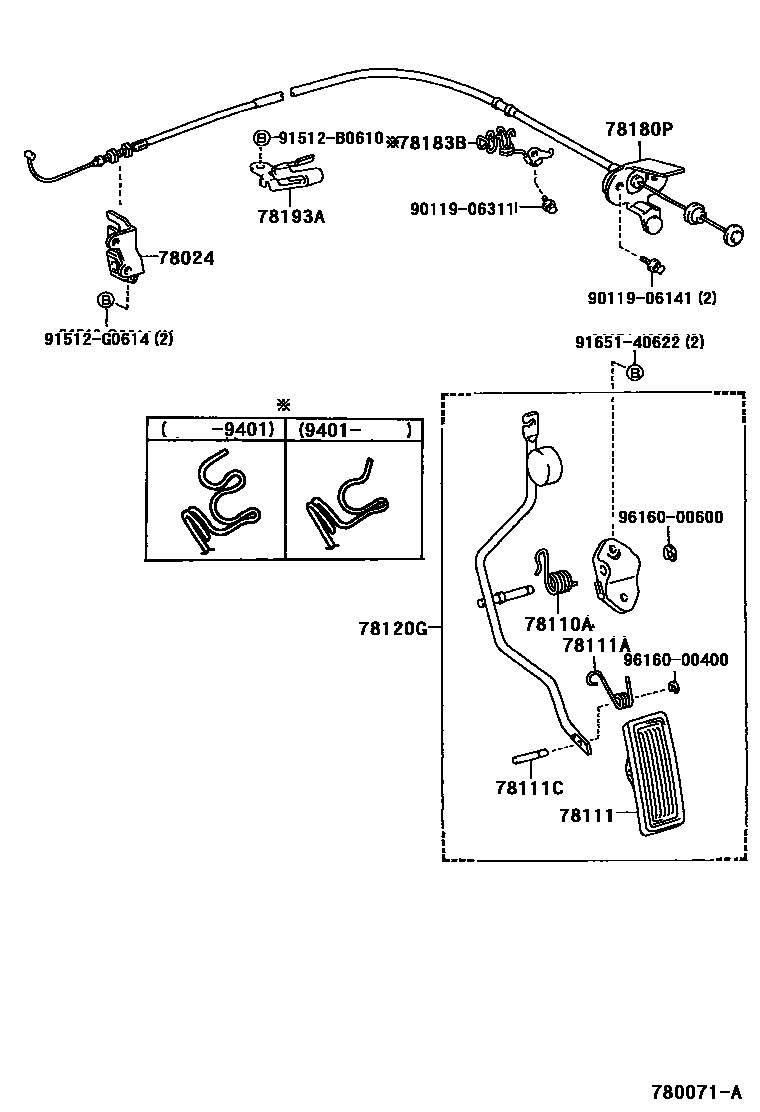

Toyota CELICA — ACCELERATOR LINK

0001 1 0003 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0012 1 0014 1 0015 1

78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE

main78024-88460iST202199311-199606

main78024-88461iST202199606

main78024-88480iST205199402-199606

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-26054iAT200,ST20#..RHD199311

main90959-03039iAT200,ST20#..LHD199311

78111PEDAL, ACCELERATOR

main78111-20030iST202..CVT199508-199512

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-18050iAT200,ST20#199311-199508

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05001iAT200,ST20#199311-199508

78120GROD ASSY, ACCELERATOR PEDAL

main78120-20590iAT200,ST20#..RHD199311-199508

main78120-20610iAT200,ST20#..LHD199311-199508

main78120-20630iAT200,ST20#..RHD..LB199508-199512

main78120-20650iAT200,ST20#..LHD..LB199508-199512

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-2D120iAT200..RHD199508

main78180-2D130iST202..RHD199512

main78180-2D240iAT200..LHD199311-199508

main78180-2D250iST202..RHD..CVT199508-199512

main78180-2D260iST202..LHD..CVT199508-199512

main78180-2D300iST205..RHD199402-199508

main78180-2D310iST205..LHD199402-199508

main78180-2D390iST205..RHD199508-199606

main78180-2D430iST202..LHD..LB199508-199512

main78180-2D440iST205..LHD199508-199606

main78180-2D460iAT200..LHD199508

main78180-2D570iAT200..RHD199505-199508

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-20200iAT200..RHD199505

TYPE A:REFER TO ILLUSTRATION

main78183-20270iAT200..LHD199311

main78183-20310iST202..RHD199311-199401

main78183-20330iST20#..RHD199401

78193ASUPPORT, ACCELERATOR CONTROL CABLE, NO.3

main78193-88460iST202199311

9011906141

main90119-06141

9011906311

main90119-06311

91512B0610

main91512-B0610

91512G0614

main91512-G0614

9165140622

main91651-40622

9616000400

main96160-00400

9616000600

main96160-00600

16 parts on this diagram · 11 diagrams in section
