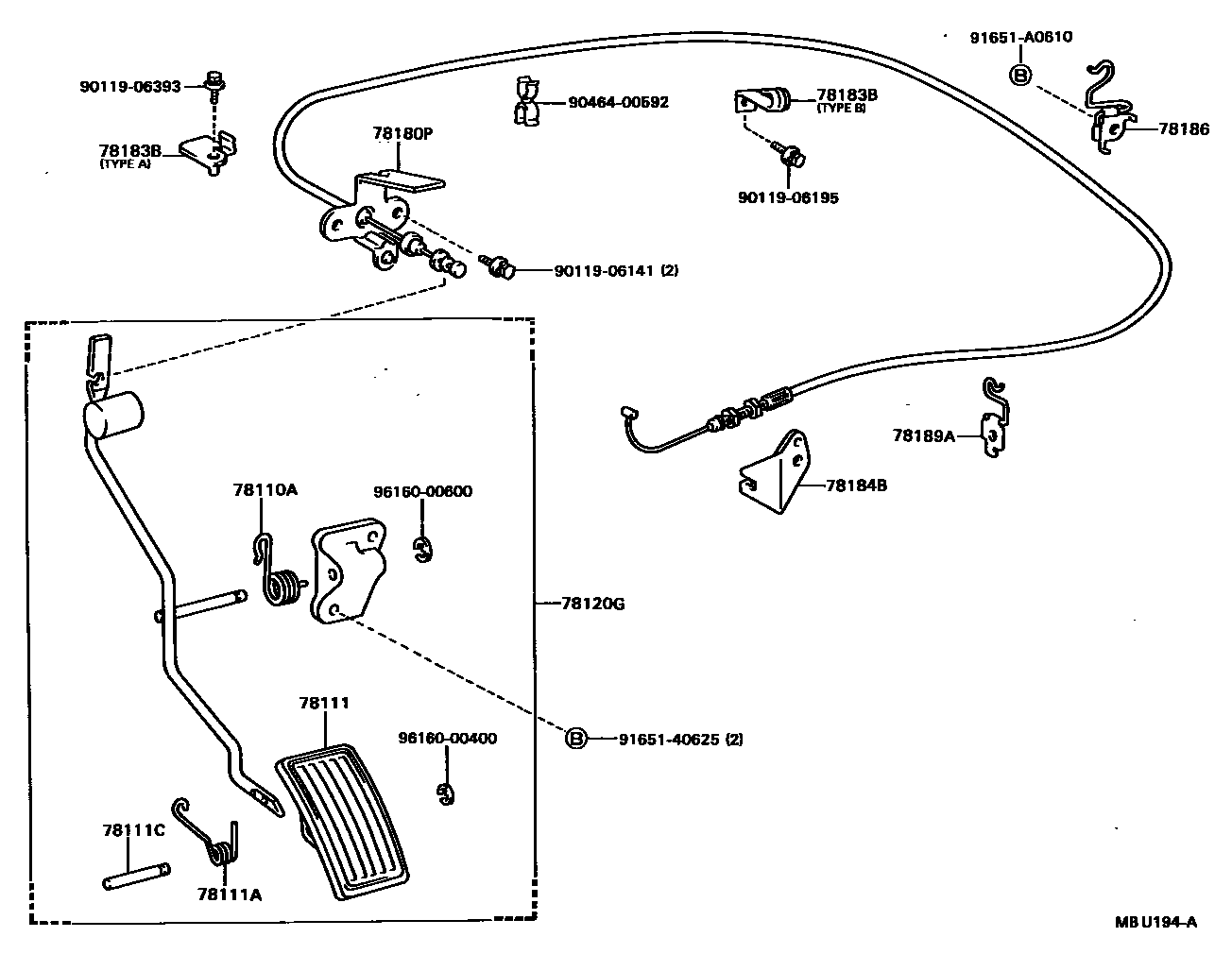

Toyota CELICA — ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1 0005 1

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18050iST182..ATM198910-199311

main90508-26054iST18#..MTM198910-199311

main90508-26062iAT180198910-199311

78111PEDAL, ACCELERATOR

main78111-20030iAT180,ST18#198910-199311

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-18048iST182..ATM198910-199311

main90508-18050iAT180,ST18#..MTM198910-199311

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05001iAT180,ST18#198910-199311

78120GROD ASSY, ACCELERATOR PEDAL

main78120-20420iAT180198910-199311

main78120-20460iST18#..RHD..MTM198910-199311

main78120-20470iST182..ATM198910-199311

main78120-20480iST18#..LHD198910-199311

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-2B470iAT180198910-199311

main78180-2B500iST182..RHD198910-199311

main78180-2B550iST182..LHD198910-199311

main78180-2B590iST185..RHD198910-199311

main78180-2B610iST185..LHD198910-199311

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-20040iAT180198910-199311

TYPE A

main78183-20130iST18#..RHD198910-199311

main78183-20140iAT180198910-199311

TYPE B

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-12260iAT180198910-199311

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-20130iAT180198910-199311

78189ASUPPORT, ACCELERATOR CONTROL CABLE, NO.2

main78186-12260iAT180198910-199311

main78189-20110iST185198910-199311

9011906141

main90119-06141

9011906195

main90119-06195

9011906393

main90119-06393

9046400592

main90464-00592

9165140625

main91651-40625

91651A0610

main91651-A0610

9616000400

main96160-00400

9616000600

main96160-00600

18 parts on this diagram · 5 diagrams in section
