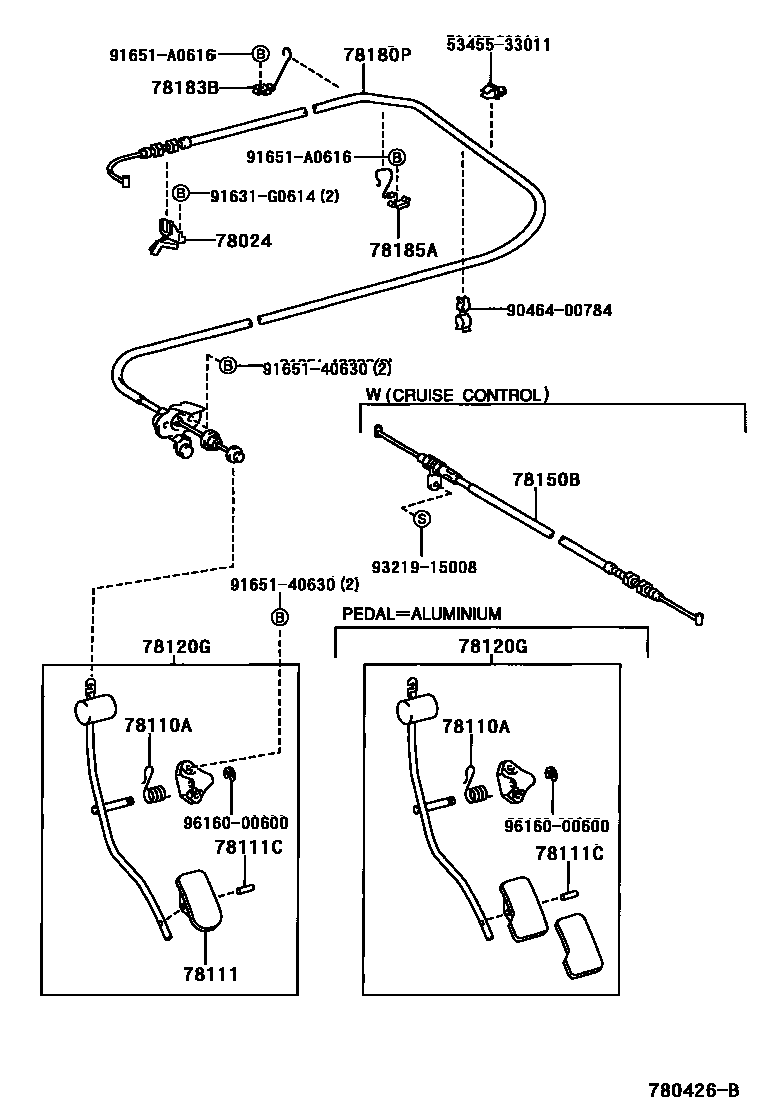

Toyota CELICA — ACCELERATOR LINK

0001 1 0002 1 0003 1

78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE

main78024-20170iZZT230199908-200208

main78024-88600iZZT231199908-200205

main78024-88602iZZT231200205-200208

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-26075iZZT230200208-200507

78111PEDAL, ACCELERATOR

main78101-20150iZZT231200208-200507

PEDAL = ALUMINIUM

main78111-33020iZZT23#199908-200208

main78111-35030iZZT231200208-200507

78111CPIN (FOR ACCELERATOR PEDAL)

main90254-04019iZZT23#199908-200208

78120GROD ASSY, ACCELERATOR PEDAL

main78120-20770iZZT230200208-200507

main78120-20790iZZT230200208-200507

PEDAL = ALUMINIUM

78150BCABLE ASSY, ACCELERATOR AUTO DRIVE

main78150-20180iZZT230199908-200208

main78150-20190iZZT231199908-200208

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-2D730iZZT230200208-200507

W(CRUISE CONTROL)

main78180-2D760iZZT230199908-200208

main78180-2D780iZZT231199908-200208

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-20350iZZT230200208-200507

main78183-20370iZZT231199908-200208

78185ACLAMP, ACCELERATOR CONTROL CABLE, NO.2

main78185-20100iZZT231199908-200208

main78185-20110iZZT230199908-200208

5345533011CLAMP, HOOD SUPPORT ROD

main53455-33011

9046400784

main90464-00784

91631G0614

main91631-G0614

9165140630

main91651-40630

91651A0616

main91651-A0616

9321915008

main93219-15008

9616000600

main96160-00600

16 parts on this diagram · 3 diagrams in section
