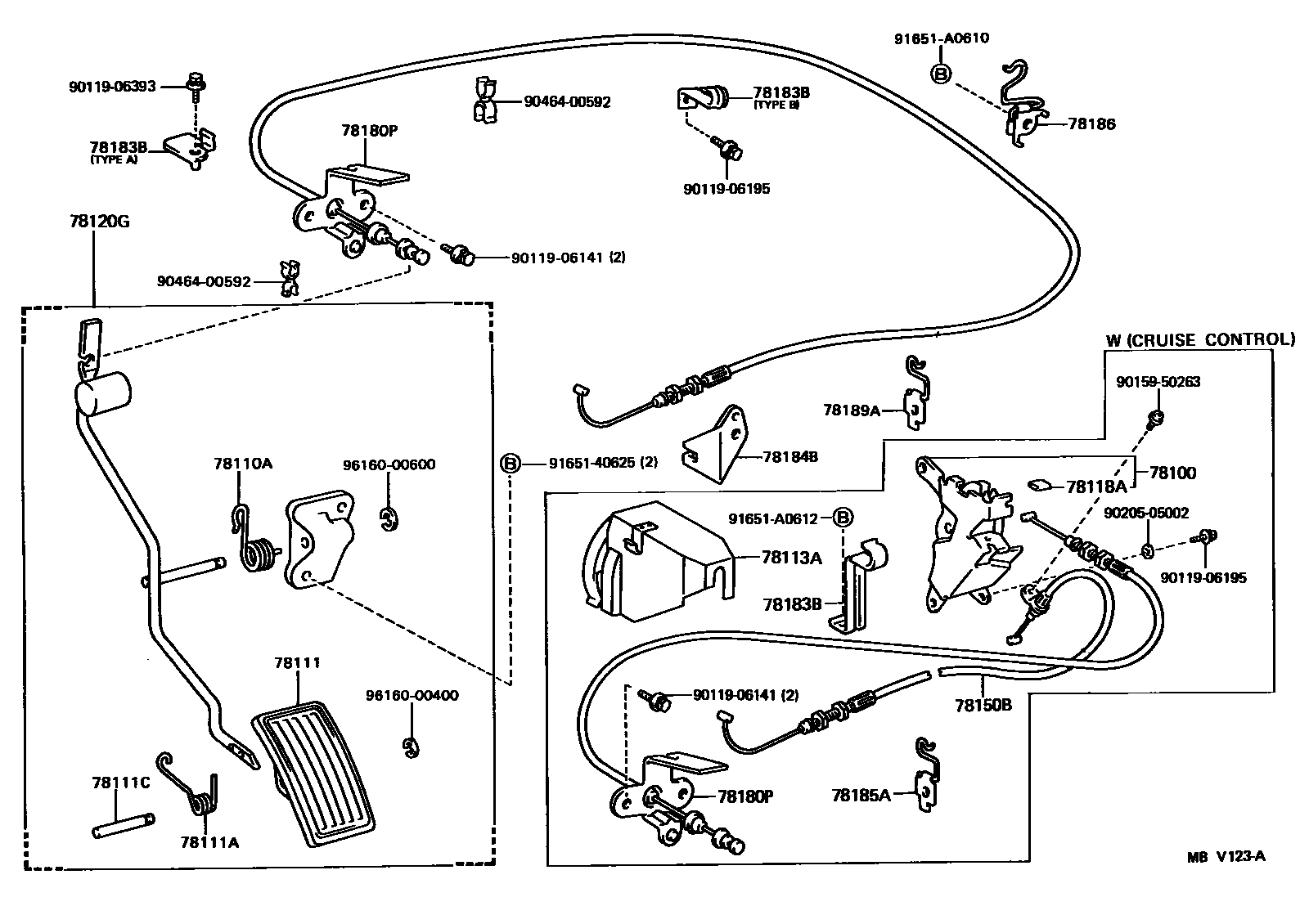

Toyota CELICA — ACCELERATOR LINK
78100LINK ASSY, ACCELERATOR
78110ASPRING (FOR ACCELERATOR PEDAL ROD)
W(CRUISE CONTROL)
78111PEDAL, ACCELERATOR
78111ASPRING (FOR ACCELERATOR PEDAL)
78111CPIN (FOR ACCELERATOR PEDAL)
78113ACOVER, AUTO DRIVE ACCELERATOR LINK
78118ASTOPPER, ACCELERATOR PEDAL
78120GROD ASSY, ACCELERATOR PEDAL
W(*66 & CRUISE CONTROL)
W(CRUISE CONTROL)
78150BCABLE ASSY, ACCELERATOR AUTO DRIVE
78180PCABLE ASSY, ACCELERATOR CONTROL
W(CRUISE CONTROL)
W(CRUISE CONTROL)
W(CRUISE CONTROL)
78183BCLAMP, ACCELERATOR CONTROL CABLE
TYPE A
TYPE B
W(CRUISE CONTROL)
78184BBRACKET, ACCELERATOR CONTROL CABLE
78185ACLAMP, ACCELERATOR CONTROL CABLE, NO.2
78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78189ASUPPORT, ACCELERATOR CONTROL CABLE, NO.2
9011906141
main90119-06141
9011906195
main90119-06195
9011906393
main90119-06393
9015950263
main90159-50263
9020505002
main90205-05002
9046400592
main90464-00592
9165140625
main91651-40625
91651A0610
main91651-A0610
91651A0612
main91651-A0612
9616000400
main96160-00400
9616000600
main96160-00600
26 parts on this diagram · 3 diagrams in section
