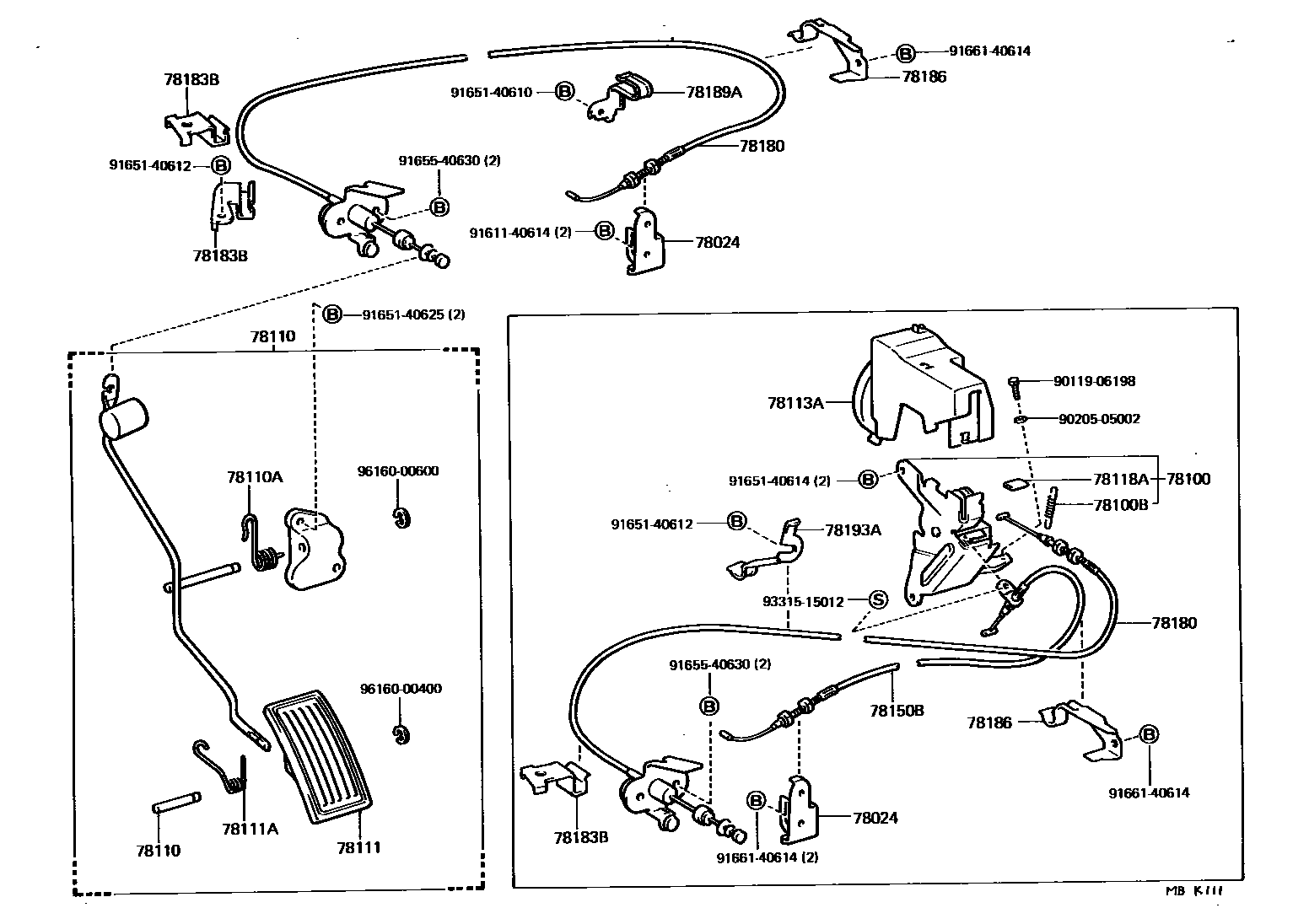

Toyota CELICA — ACCELERATOR LINK
78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
W/AUTO DRIVE
W/O AUTO DRIVE
78100LINK ASSY, ACCELERATOR
78100BSPRING (FOR ACCELERATOR LINK)
78110ROD ASSY, ACCELERATOR PEDAL
W/AUTO DRIVE
78110ASPRING (FOR ACCELERATOR PEDAL ROD)
W/AUTO DRIVE
78111PEDAL, ACCELERATOR
78111ASPRING (FOR ACCELERATOR PEDAL)
78113ACOVER, AUTO DRIVE ACCELERATOR LINK
sub78113-20141
78118ASTOPPER, ACCELERATOR PEDAL
78150BCABLE ASSY, ACCELERATOR AUTO DRIVE
78180WIRE ASSY, ACCELERATOR
W/O AUTO DRIVE
W/O AUTO DRIVE
W/AUTO DRIVE
W/AUTO DRIVE
W/O AUTO DRIVE
W/AUTO DRIVE
78183BCLAMP, ACCELERATOR CONTROL CABLE
W/AUTO DRIVE
W/AUTO DRIVE,HEAD COVER
78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78189ASUPPORT, ACCELERATOR CONTROL CABLE, NO.2
78193ASUPPORT, ACCELERATOR CONTROL CABLE, NO.3
W/AUTO DRIVE
9011906198
main90119-06198
9020505002
main90205-05002
9161140614
main91611-40614
9165140610
main91651-40610
9165140612
main91651-40612
9165140614
main91651-40614
9165140625
main91651-40625
9165540630
main91655-40630
9166140614
main91661-40614
9331515012
main93315-15012
9616000400
main96160-00400
9616000600
main96160-00600
27 parts on this diagram · 3 diagrams in section
