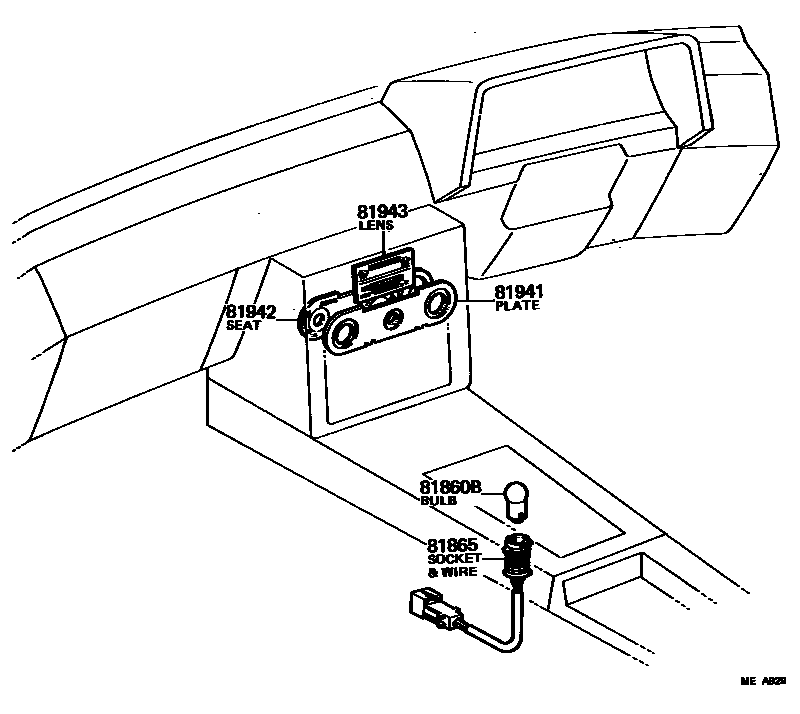

Toyota CARINA — INDICATOR

81860BBULB, TRANSMISSION INDICATOR LAMP

main99132-11034i198108-198309

12V 3.4W,12V 3.4W

81865SOCKET AND WIRE, TRANSMISSION INDICATOR LAMP

main35906-14010i198108-198309

81941PLATE, HEATER CONTROL NAME

main55519-14010i198108-198309

81942SHEET, HEATER CONTROL NAME

main81942-14010i198108-198305

W/HEATER

main81942-14011i198305-198309

W/HEATER

main81942-14030i198108-198309

W/BOOST VENTILATOR

main81942-14040i198108-198309

W/BOOST VENTILATOR & COOLER

main81942-14050i198108-198309

W/HEATER

main81942-14060i198108-198309

W/BOOST VENTILATOR

main81942-14070i198108-198309

W/BOOST VENTILATOR & COOLER

81943LENS, HEATER CONTROL INDICATOR

main81943-14180i198108-198309

W/HEATER

main81943-14220i198108-198309

W/BOOST VENTILATOR

main81943-14370i198108-198309

W/HEATER

main81943-14380i198108-198309

W/BOOST VENTILATOR

5 parts on this diagram · 1 diagram in section

INDICATOR for Toyota CARINA

This section contains 5 genuine Toyota parts for the INDICATOR system of the Toyota CARINA. Key components include: BULB, TRANSMISSION INDICATOR LAMP, SOCKET AND WIRE, TRANSMISSION INDICATOR LAMP, PLATE, HEATER CONTROL NAME, SHEET, HEATER CONTROL NAME, LENS, HEATER CONTROL INDICATOR.
