Toyota CARINA — HEATING & AIR CONDITIONING - SET

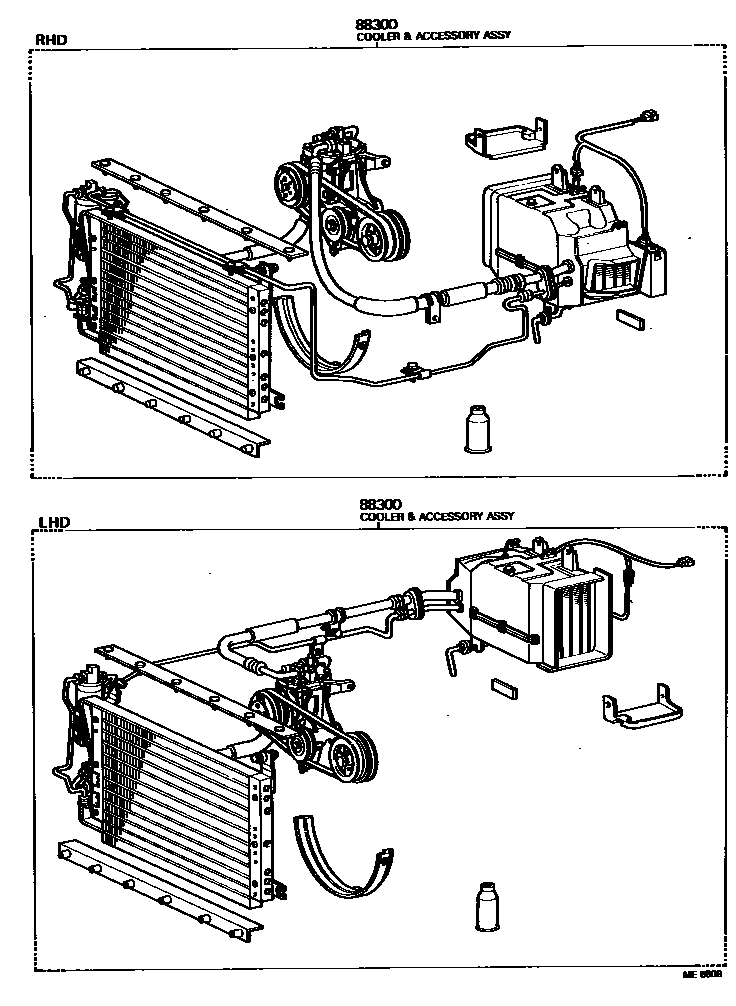

Parts diagram
88300COOLER & ACCESSORY ASSY
main88300-14550i197708-197808
W/HEATER
main88300-14552i197808-197908
W/HEATER
main88300-14560i197708-197808
W/HEATER
main88300-14562i197808-197908
W/HEATER
main88300-14570i197708-197808
W/BOOST VENTILATOR
main88300-14572i197808-197908
W/BOOST VENTILATOR
main88300-14580i197708-197808
W/BOOST VENTILATOR
main88300-14582i197808-197908
W/BOOST VENTILATOR
main88300-1B140i197908-198107
W/HEATER
main88300-1B150i197908-198107
W/HEATER
main88300-1B160i197908-198107
W/BOOST VENTILATOR
main88300-1B170i197908-198107
W/BOOST VENTILATOR

1 parts on this diagram · 1 diagram in section

HEATING & AIR CONDITIONING - SET for Toyota CARINA

This section contains 1 genuine Toyota parts for the HEATING & AIR CONDITIONING - SET system of the Toyota CARINA. Key components include: COOLER & ACCESSORY ASSY.
