Toyota CARINA — HEATING & AIR CONDITIONING - BLOWER MOTOR

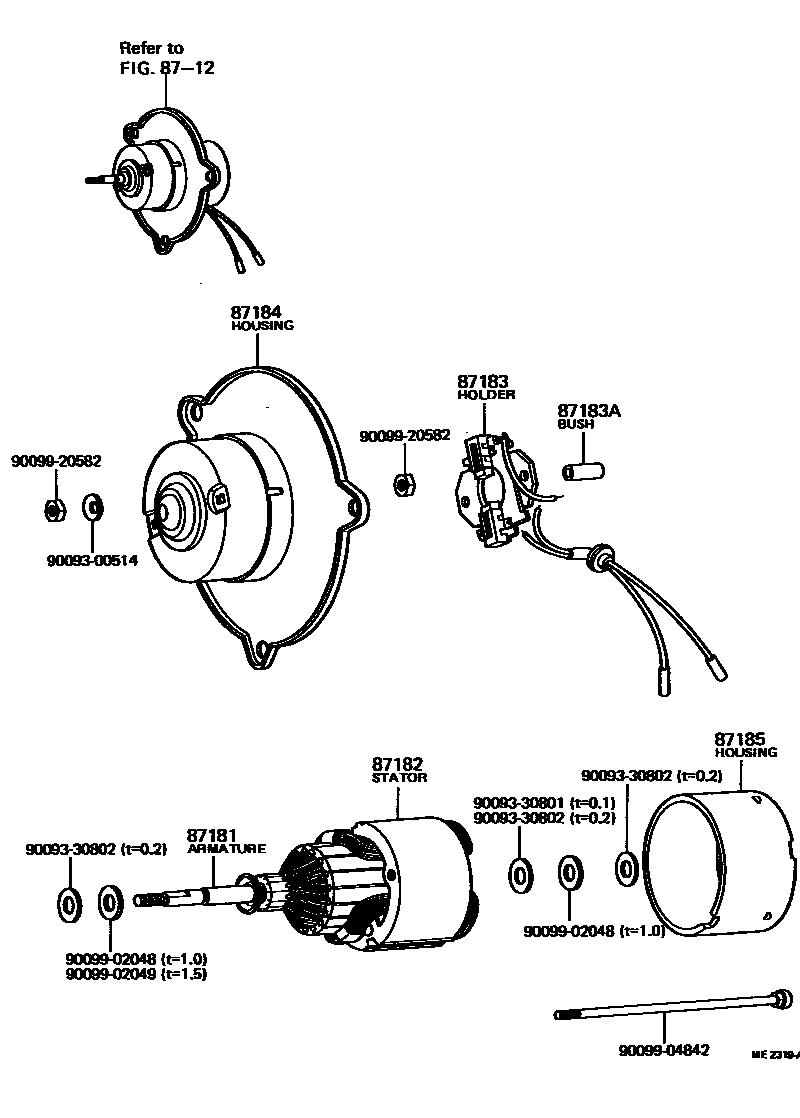

Parts diagram

8712HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

→ Go to FIG 87-12

87181ARMATURE, BLOWER MOTOR

main87181-14010i197012-197207

main87181-20055i197012-197207

W/BOOST VENTILATOR OR COOLER

87182STATOR, HEATER BLOWER MOTOR

main87182-22011i197012-197207

W/BOOST VENTILATOR OR COOLER

87183HOLDER, BLOWER MOTOR BRUSH

main87183-22010i197012-197207

main87183-22020i197012-197207

87183ABUSH, HEATER BLOWER MOTOR BRUSH HOLDER

main90099-19058×2i197012-197207

87184HOUSING, BLOWER MOTOR, NO.1

main87184-14010i197012-197207

main87184-22010i197012-197207

W/BOOST VENTILATOR OR COOLER

87185HOUSING, BLOWER MOTOR, NO.2

main87185-14010i197012-197207

main87185-14020i197012-197207

main87185-22010i197012-197207

W/BOOST VENTILATOR OR COOLER

9009300514

main90093-00514

9009330801

main90093-30801

9009330802

main90093-30802

9009902048

main90099-02048

9009902049

main90099-02049

9009904842

main90099-04842

9009920582

main90099-20582

14 parts on this diagram · 1 diagram in section

HEATING & AIR CONDITIONING - BLOWER MOTOR for Toyota CARINA

This section contains 14 genuine Toyota parts for the HEATING & AIR CONDITIONING - BLOWER MOTOR system of the Toyota CARINA. Key components include: HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER, ARMATURE, BLOWER MOTOR, STATOR, HEATER BLOWER MOTOR, HOLDER, BLOWER MOTOR BRUSH, BUSH, HEATER BLOWER MOTOR BRUSH HOLDER.
