Toyota CARINA — COWL VENTILATOR

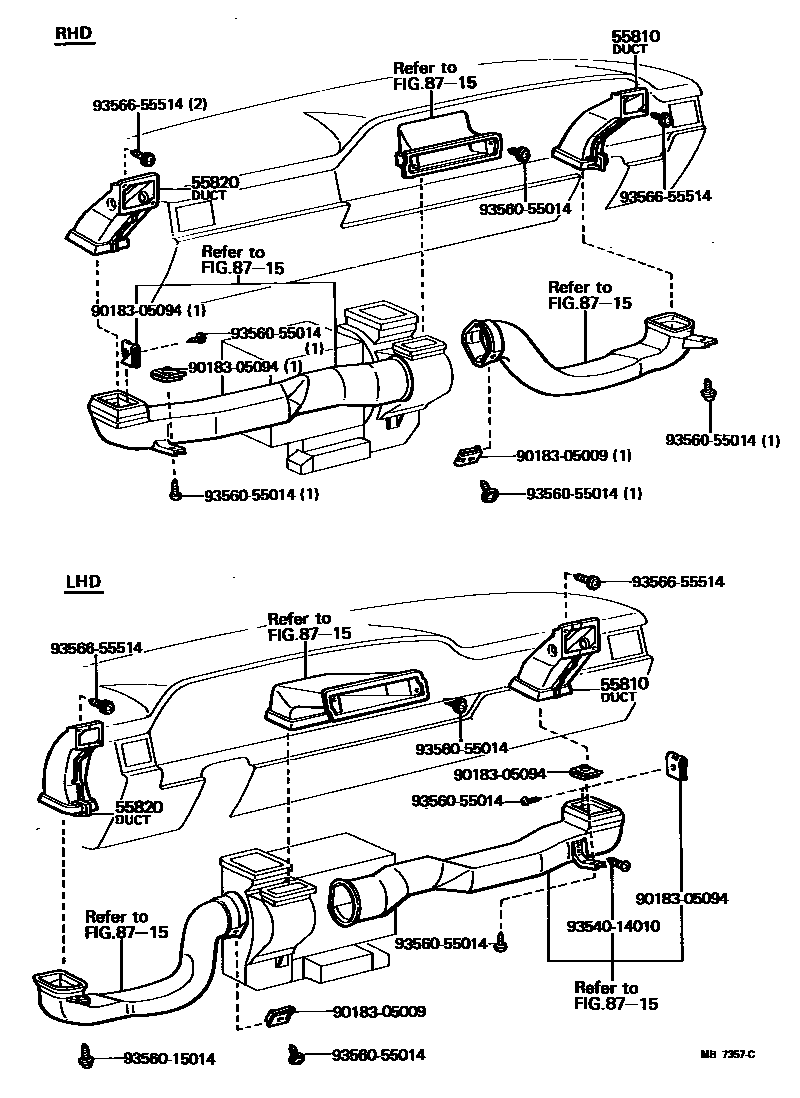

Parts diagram

55810DUCT ASSY, SIDE VENTILATOR, RH

main55084-14050i197708-198107

main55084-14060i197708-198107

55820DUCT ASSY, SIDE VENTILATOR, LH

main55086-14050i197708-198107

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

9018305009

main90183-05009

9018305094

main90183-05094

9354014010

main93540-14010

9356015014

main93560-15014

9356055014

main93560-55014

9356655514

main93566-55514

9 parts on this diagram · 1 diagram in section

COWL VENTILATOR for Toyota CARINA

This section contains 9 genuine Toyota parts for the COWL VENTILATOR system of the Toyota CARINA. Key components include: DUCT ASSY, SIDE VENTILATOR, RH, DUCT ASSY, SIDE VENTILATOR, LH, HEATING & AIR CONDITIONING - CONTROL & AIR DUCT.
