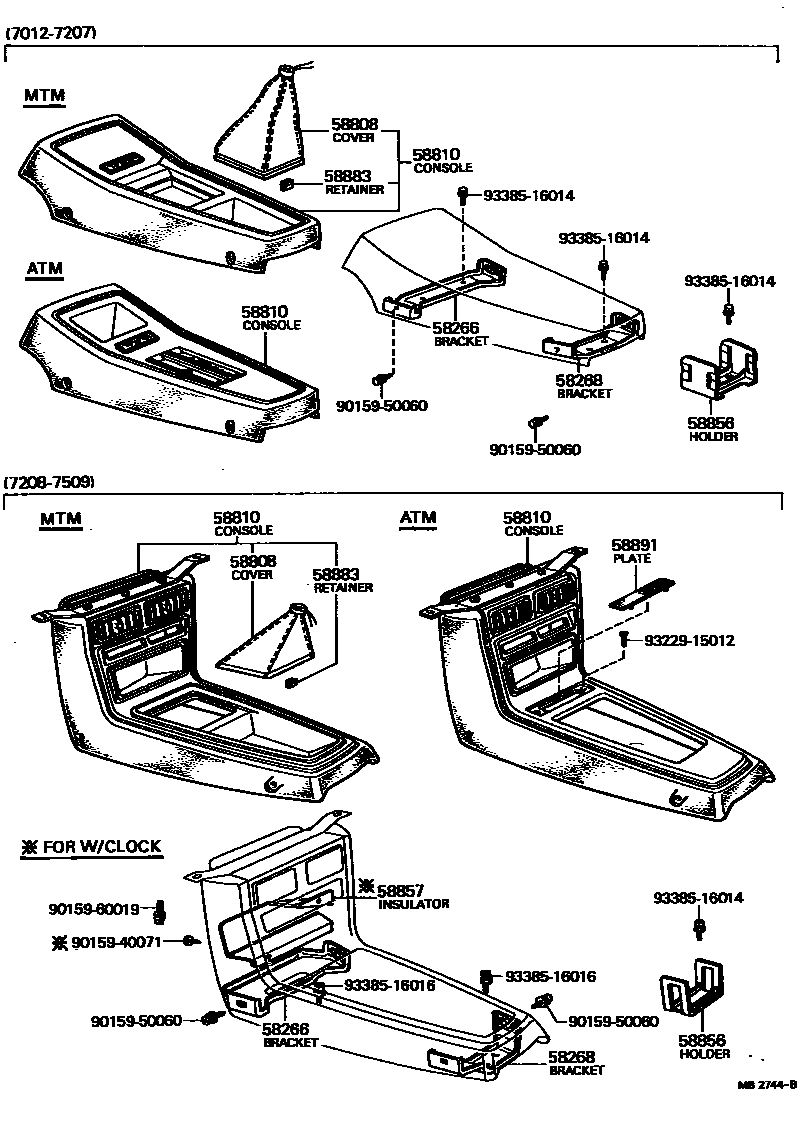

Toyota CARINA — CONSOLE BOX & BRACKET
58266BRACKET, CONSOLE BOX SUPPORT, FRONT
58268BRACKET, CONSOLE BOX SUPPORT, REAR
58808COVER SUB-ASSY, SHIFTING HOLE
58810CONSOLE ASSY
L/HT.BST. CLOCK
BLACK W/HT.BST. L/CLOCK,BLACK,TRIM2#
BROWN W/HT.BST. L/CLOCK,BROWN,TRIM0#,4#
BLACK W/HT.BST.,BLACK,TRIM2#
BROWN W/HT.BST.,BROWN,TRIM0#,4#
L/HT.BST.
L/HT.BST. W/CLOCK
BLACK L/HT.BST. W/CLOCK,BLACK,TRIM2#
BROWN L/HT.BST. W/CLOCK,BROWN,TRIM0#,4#
W/HT.BST. CLOCK
BLACK W/HT.BST.CLOCK,BLACK,TRIM2#
BROWN W/HT.BST.CLOCK,BROWN,TRIM0#,4#
W/HT.BST. L/CLOCK
W/HT.BST.
BLACK L/HT.BST.CLOCK,BLACK,TRIM2#
BROWN L/HT.BST.CLOCK,BROWN,TRIM0#,4#
BLACK L/HT.BST.,BLACK,TRIM2#
BROWN L/HT.BST.,BROWN,TRIM0#,4#
BLACK,BLACK,TRIM2#
BROWN,BROWN,TRIM0#,4#
58856HOLDER, SEAT BELT BUCKLE
58857INSULATOR, CONSOLE
FOR CLOCK
58883RETAINER, SHIFTING HOLE COVER
58891PLATE, CONSOLE NAME
AUTOMATIC
9015940071
main90159-40071
9015950060
main90159-50060
9015960019
main90159-60019
9322915012
main93229-15012
9338516014
main93385-16014
9338516016
main93385-16016
14 parts on this diagram · 2 diagrams in section
CONSOLE BOX & BRACKET for Toyota CARINA
This section contains 28 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota CARINA. Key components include: BRACKET, CONSOLE BOX SUPPORT, FRONT, BRACKET, CONSOLE BOX SUPPORT, CENTER, BRACKET, CONSOLE BOX SUPPORT, REAR, COVER SUB-ASSY, SHIFTING HOLE, CONSOLE ASSY.
