Toyota CARINA — FRONT TURN SIGNAL LAMP

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-19665i198108-198209

main81510-19666i198209-198309

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main99132-11050×2i198108-198305

12V 5W,12V 5W

main99132-11210×2i198108-198309

12V 21W,12V 21W

main99132-12050×2i198305-198309

12V 5W,12V 5W

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-14230i198108-198309

81517SOCKET, FRONT TURN SIGNAL LAMP

main81515-14230×2i198108-198209

main81515-14231×2i198209-198309

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-19665i198108-198209

main81520-19666i198209-198309

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-14230i198108-198309

9016744003

main90167-44003

9018904022

main90189-04022

8 parts on this diagram · 1 diagram in section

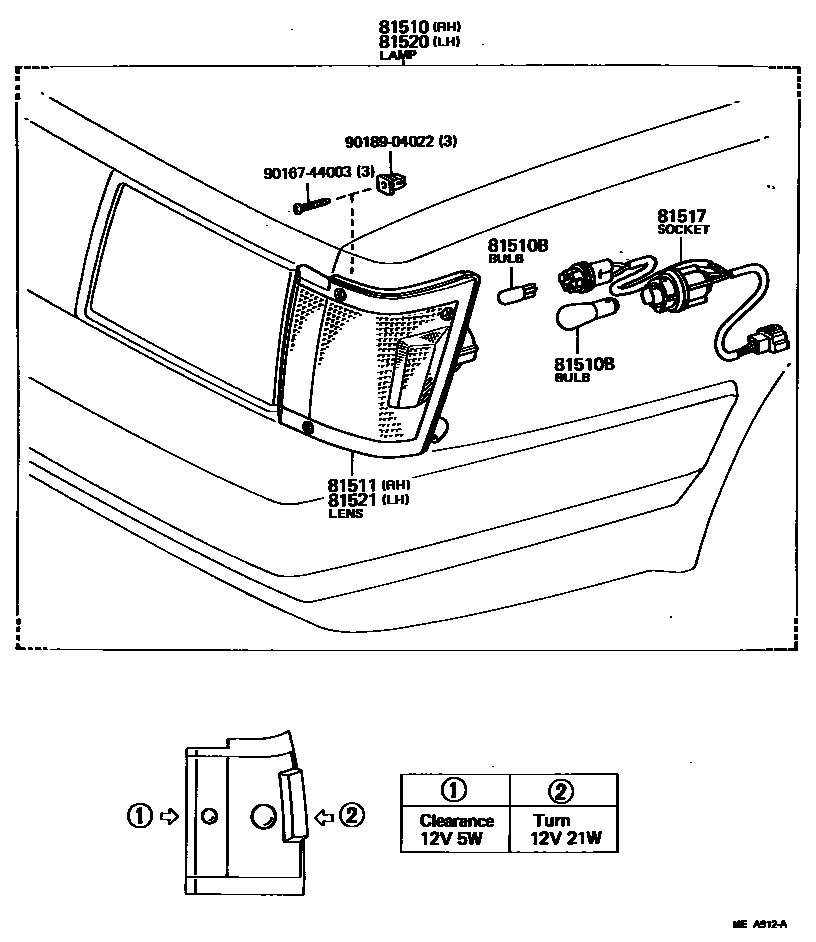

FRONT TURN SIGNAL LAMP for Toyota CARINA

This section contains 8 genuine Toyota parts for the FRONT TURN SIGNAL LAMP system of the Toyota CARINA. Key components include: LAMP ASSY, FRONT TURN SIGNAL, RH, BULB (FOR FRONT TURN SIGNAL LAMP), LENS, FRONT TURN SIGNAL LAMP, RH, SOCKET, FRONT TURN SIGNAL LAMP, LAMP ASSY, FRONT TURN SIGNAL, LH.
