Toyota CARINA FR — PARTIAL ENGINE ASSEMBLY

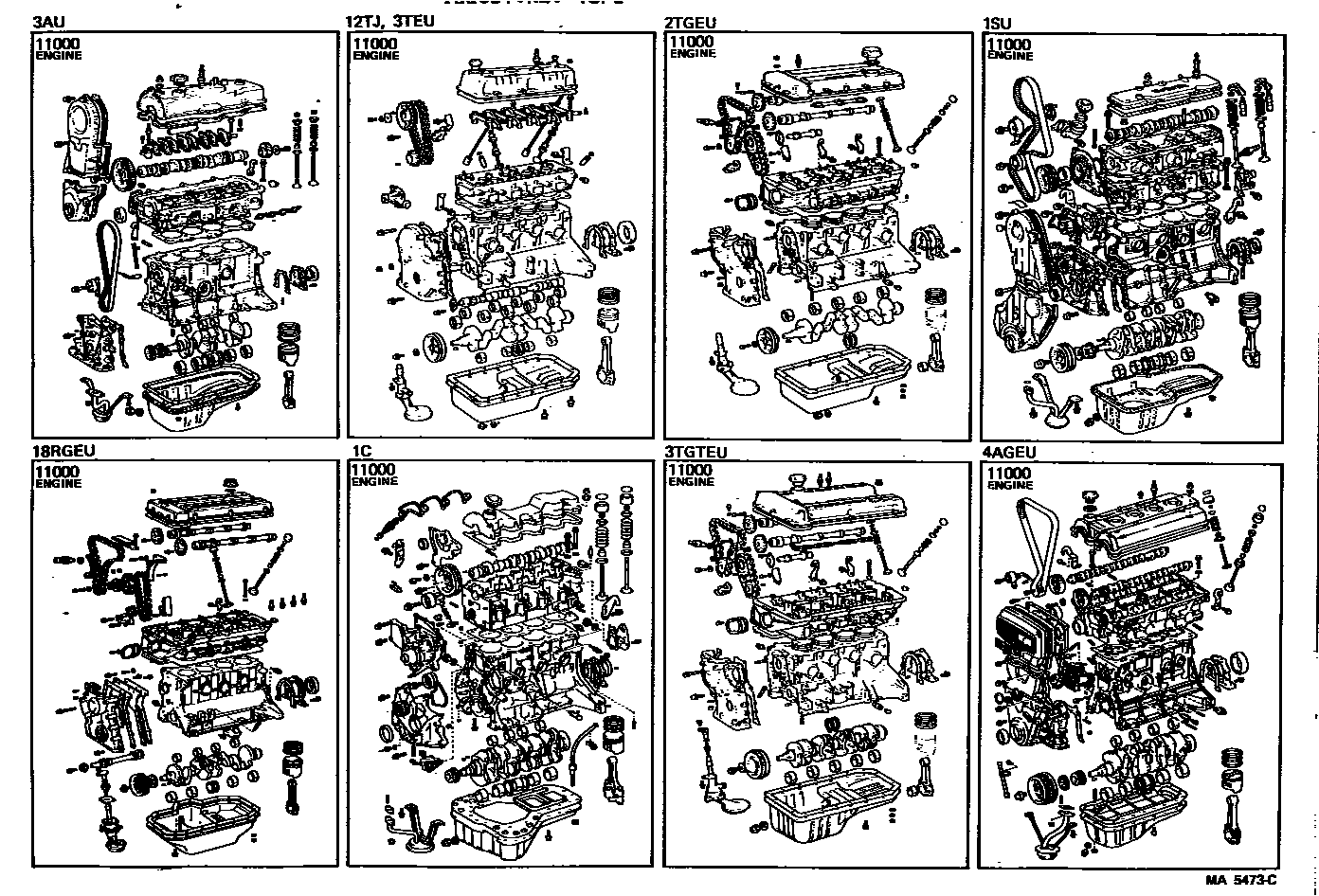

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-13270i198308-198804

main19000-15052i198109-198305

main19000-15200i198305-198712

main19000-16100i198305-198507

main19000-26273i198109-198207

main19000-26274i198207-198305

main19000-27120i198109-198207

main19000-27121i198207-198308

main19000-28032i198109-198207

main19000-28034i198207-198305

main19000-63010i198109-198401

main19000-63011i198401-198607

main19000-63012i198607-198804

main19000-63040i198307-198308

COLD SPEC

main19000-64020i198202-198303

main19000-64022i198303-198307

main19000-64023i198307-198508

main19000-64270i198508-198608

main19000-64271i198608-198804

main19000-88300i198109-198210

main19000-88301i198202-198210

W/PS

main19000-88330i198210-198507

1 parts on this diagram · 2 diagrams in section

PARTIAL ENGINE ASSEMBLY for Toyota CARINA FR

This section contains 1 genuine Toyota parts for the PARTIAL ENGINE ASSEMBLY system of the Toyota CARINA FR. Key components include: ENGINE ASSY, PARTIAL.
