Toyota CARINA FF — RADIATOR GRILLE

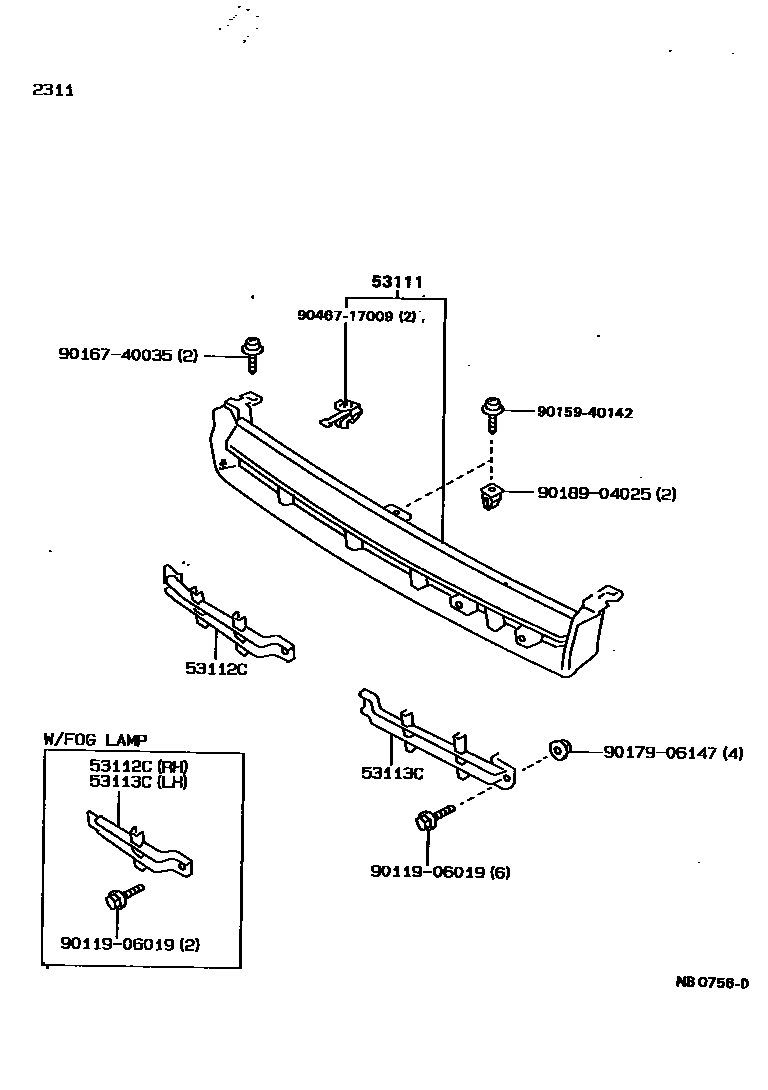

Parts diagram

53111GRILLE, RADIATOR

main53101-20340i198805-199005

main53101-20350i198805-199005

main53101-20370i198908-199005

main53101-20410i199005-199211

main53101-20420i199012-199208

53112CGRILLE, RADIATOR, LOWER RH

main53112-20120i199005-199211

main53112-20121i199005-199211

main53112-20130i198805-199005

main53112-20131i199005-199012

53113CGRILLE, RADIATOR, LOWER LH

main53113-20060i198805-199005

main53113-20061i199005-199211

main53113-20070i198812-198903

main53113-20071i199005-199208

9011906019

main90119-06019

9015940142

main90159-40142

9016740035

main90167-40035

9017906147

main90179-06147

9018904025

main90189-04025

9046717009

main90467-17009

9 parts on this diagram · 2 diagrams in section

RADIATOR GRILLE for Toyota CARINA FF

This section contains 12 genuine Toyota parts for the RADIATOR GRILLE system of the Toyota CARINA FF. Key components include: GRILLE, RADIATOR, GRILLE, RADIATOR, LOWER RH, GRILLE, RADIATOR, LOWER LH.
