Toyota CARINA FF — PARTIAL ENGINE ASSEMBLY

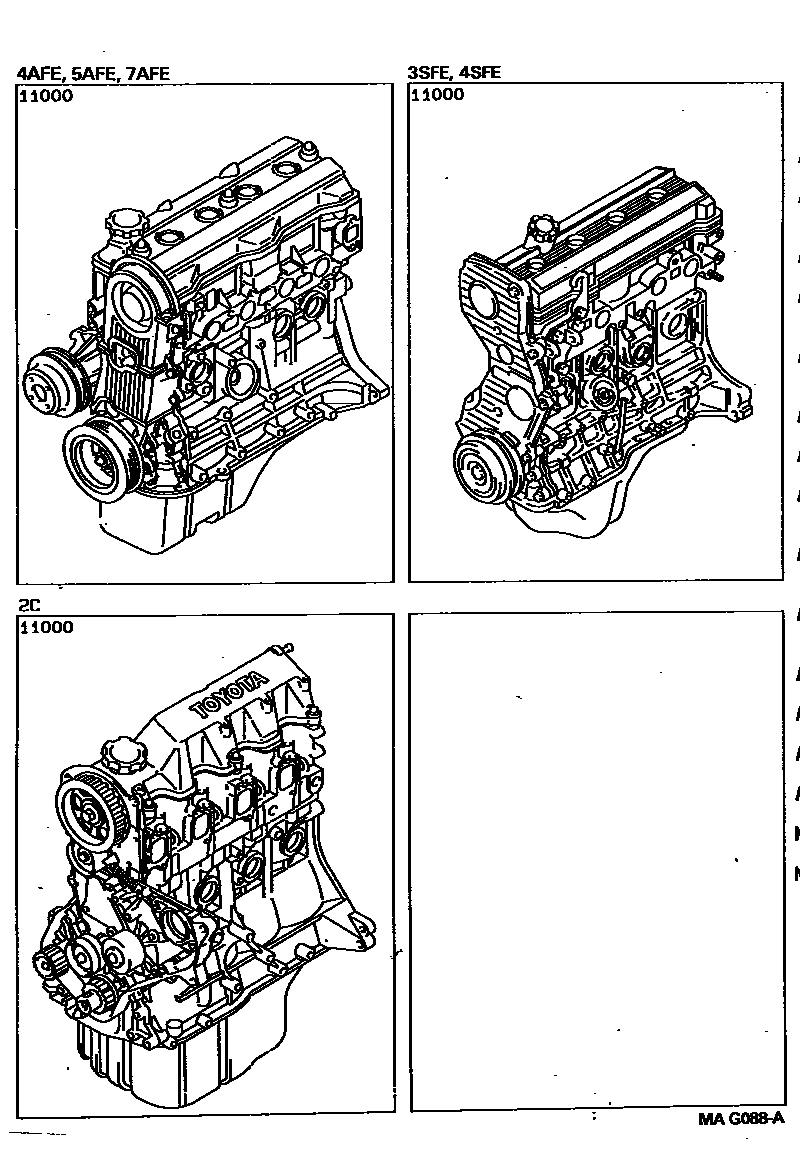

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-1A310i199208-199608
main19000-1A320i199208-199408
main19000-1A360i199408-199608
main19000-1A370i199408-199608
main19000-64720i199208-199504
main19000-64721i199504-199608
sub19000-64722
sub90105-16064
sub90560-16025
main19000-64770i199208-199504
main19000-64771i199504-199608
sub19000-64772
sub90105-16064
sub90560-16025
main19000-74380i199208-199402
main19000-74480i199208-199402
main19000-74550i199208-199402
sub12315-74120
sub12316-74080
sub12362-74380
sub12381-74020
sub90105-10269
sub90119-10599
main19000-74551i199402-199408
main19000-74560i199208-199402
sub12315-74120
sub12316-74090
sub12362-74370
sub12381-74020
sub90105-10269
sub90119-10599
main19000-74561i199402-199408
main19000-74730i199402-199408
main19000-74740i199402-199608

1 parts on this diagram · 1 diagram in section
