Toyota CARINA FF — PARTIAL ENGINE ASSEMBLY

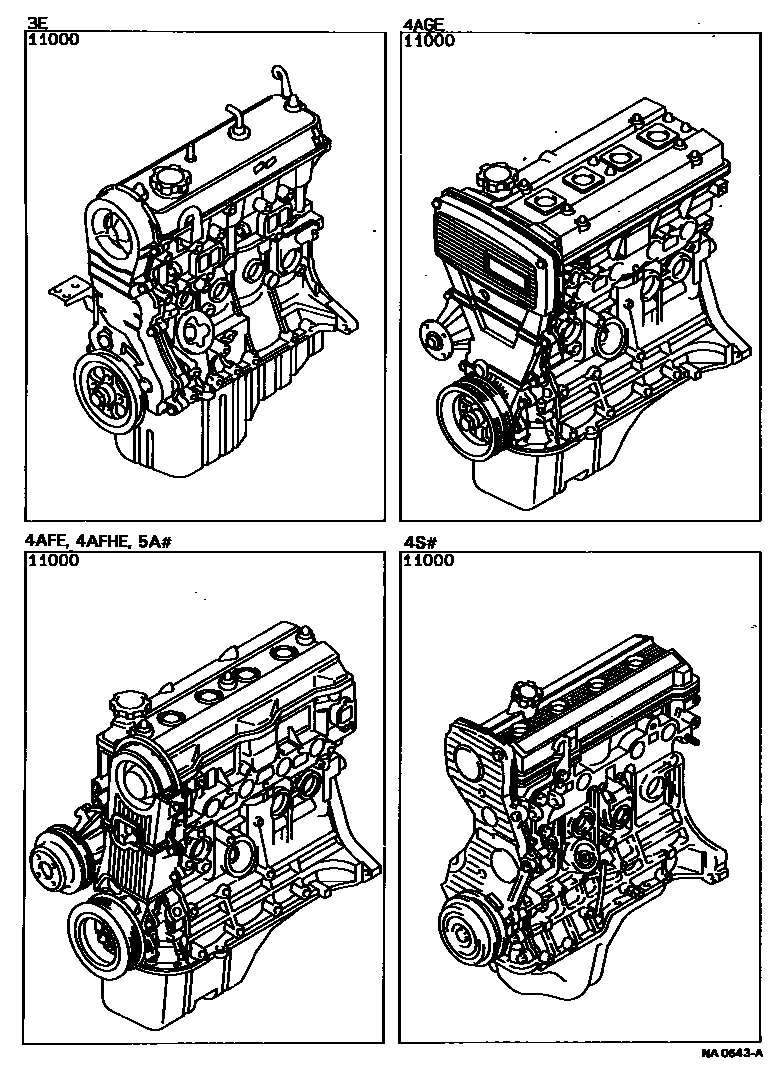

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-11290i198805-199008
sub12329-11020
sub17771-11080
sub17771-11120
sub78184-16050
main19000-11291i199008-199211
main19000-15330i198805-199005
main19000-15360i199005-199211
main19000-16360i198805-198908
sub19000-16361
main19000-16700i198805-199005
main19000-16750i198808-198911
main19000-16751i198911-199004
main19000-16752i199004-199104
main19000-16753i199104-199208
main19000-16830i198908-199101
main19000-16831i199101-199208
main19000-1A040i199005-199104
sub89615-22040
main19000-1A041i199104-199208
main19000-64410i198805-198808
sub19000-64411
main19000-64540i198808-199008
main19000-64541i199008-199110
main19000-64542i199110-199211
sub19000-64543
sub90105-16064
sub90560-16025
main19000-74220i198805-198905
sub19000-74223
main19000-74221i198905-199005
sub19000-74222
sub16321-74030
sub16325-63010
sub90916-03046
main19000-74300i199005-199008
main19000-74301i199008-199211

1 parts on this diagram · 2 diagrams in section
