Toyota CARINA FF — FRONT CLEARANCE LAMP

81610LAMP ASSY, PARKING & CLEARANCE, RH

main81610-20330i198605-198804

main81610-29395i198405-198605

81610BBULB(FOR PARKING & CLEARANCE LAMP)

main99132-12050×4i198405-198804

81611LENS, PARKING & CLEARANCE LAMP, RH

main81611-20200i198405-198605

main81611-20330i198605-198804

81615SOCKET AND WIRE, CLEARANCE LAMP

main81615-20200×2i198405-198605

main81615-20330×2i198605-198804

81620LAMP ASSY, PARKING & CLEARANCE, LH

main81620-20330i198605-198804

main81620-29385i198405-198605

81621LENS, PARKING & CLEARANCE LAMP, LH

main81621-20200i198405-198605

main81621-20330i198605-198804

8161820200BRACKET, PARKING AND CLEARANCE LAMP, RH

main81618-20200

8161920200

main81619-20200

9015940101

main90159-40101

9018904022

main90189-04022

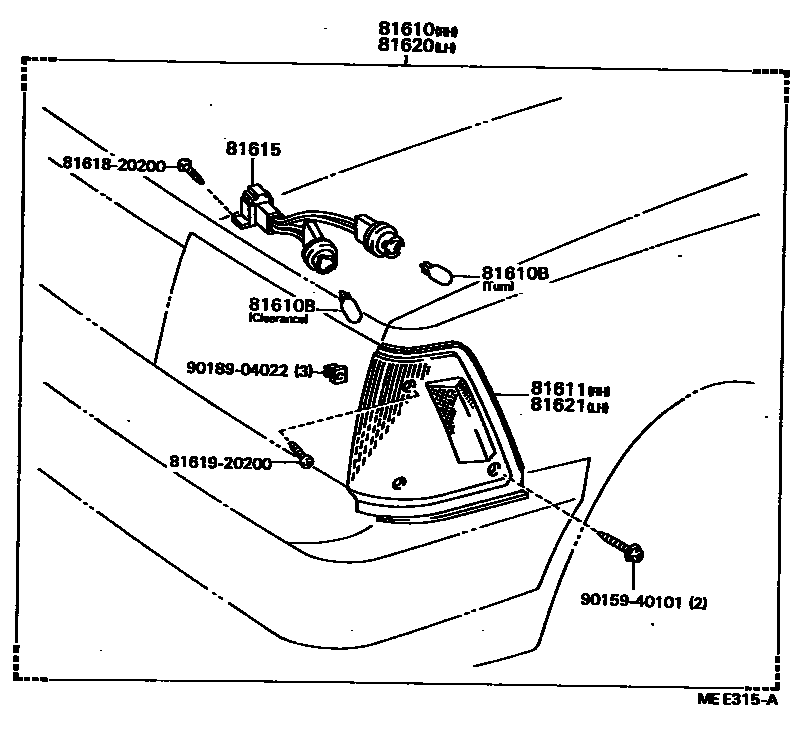

10 parts on this diagram · 2 diagrams in section

FRONT CLEARANCE LAMP for Toyota CARINA FF

This section contains 14 genuine Toyota parts for the FRONT CLEARANCE LAMP system of the Toyota CARINA FF. Key components include: LAMP ASSY, PARKING & CLEARANCE, RH, BULB(FOR PARKING & CLEARANCE LAMP), LENS, PARKING & CLEARANCE LAMP, RH, SOCKET AND WIRE, CLEARANCE LAMP, LAMP ASSY, PARKING & CLEARANCE, LH.
