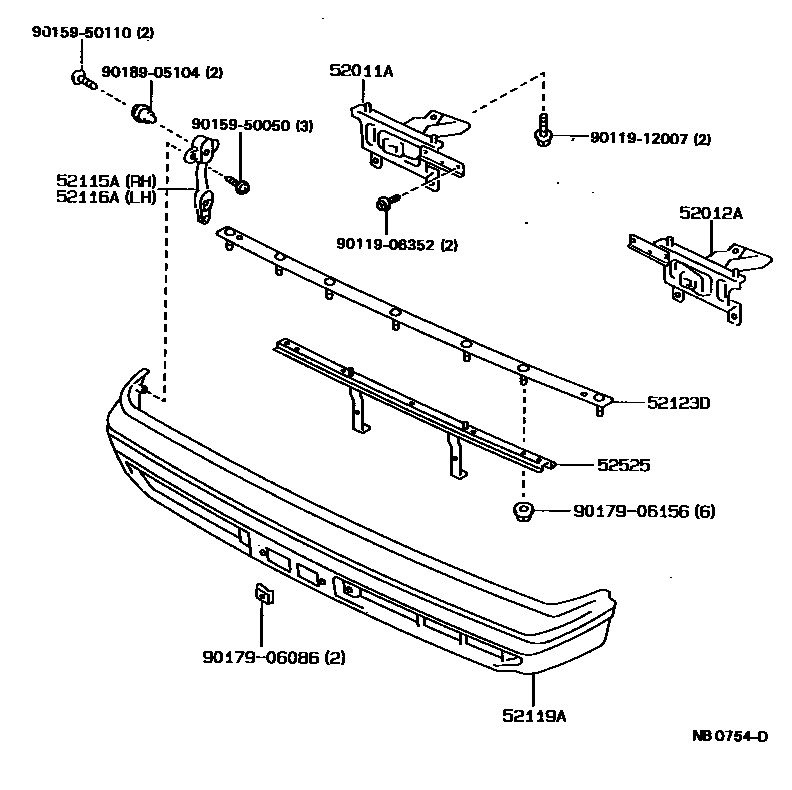

Toyota CARINA FF — FRONT BUMPER & BUMPER STAY
52011AARM SUB-ASSY, FRONT BUMPER, RH
52012AARM SUB-ASSY, FRONT BUMPER, LH
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52119ACOVER, FRONT BUMPER
SUPER RED 2,3E5
DARK BLUE MICA M,8E9
main52119-20510-07iAT170..(4FC,5F)..SG; AT170..4F..SG; CT170;AT17#,ST170..GLIM,S,SE,SGEXT198908-199005
GRAYISH GREEN M,6K6
SUPER WHITE 2,040
RED MICA,3H4
RED MICA,3J9
DARK BLUE MICA M,8E9
main52119-20511-08iAT170..SG,SGEXT,SV; AT171..EFIS; AT175..SG,SGEXT; CT170,ST170..SG,SGEXT,SV,SX199005-199211
DARK GRAY MICA,175
DARK GRAY MICA,175
SUPER WHITE 2,TRIM1#,8#&040
REDISH SILVER M,178
52123DPLATE, FRONT BUMPER REINFORCEMENT
52525RETAINER, FRONT BUMPER, LOWER CENTER
9011906352
main90119-06352
9011912007
main90119-12007
9015950050
main90159-50050
9015950110
main90159-50110
9017906086
main90179-06086
9017906156
main90179-06156
9018905104
main90189-05104
14 parts on this diagram · 2 diagrams in section
FRONT BUMPER & BUMPER STAY for Toyota CARINA FF
This section contains 21 genuine Toyota parts for the FRONT BUMPER & BUMPER STAY system of the Toyota CARINA FF. Key components include: ARM SUB-ASSY, FRONT BUMPER, RH, ARM SUB-ASSY, FRONT BUMPER, LH, SUPPORT, FRONT BUMPER SIDE, RH, SUPPORT, FRONT BUMPER SIDE, LH, COVER, FRONT BUMPER.
