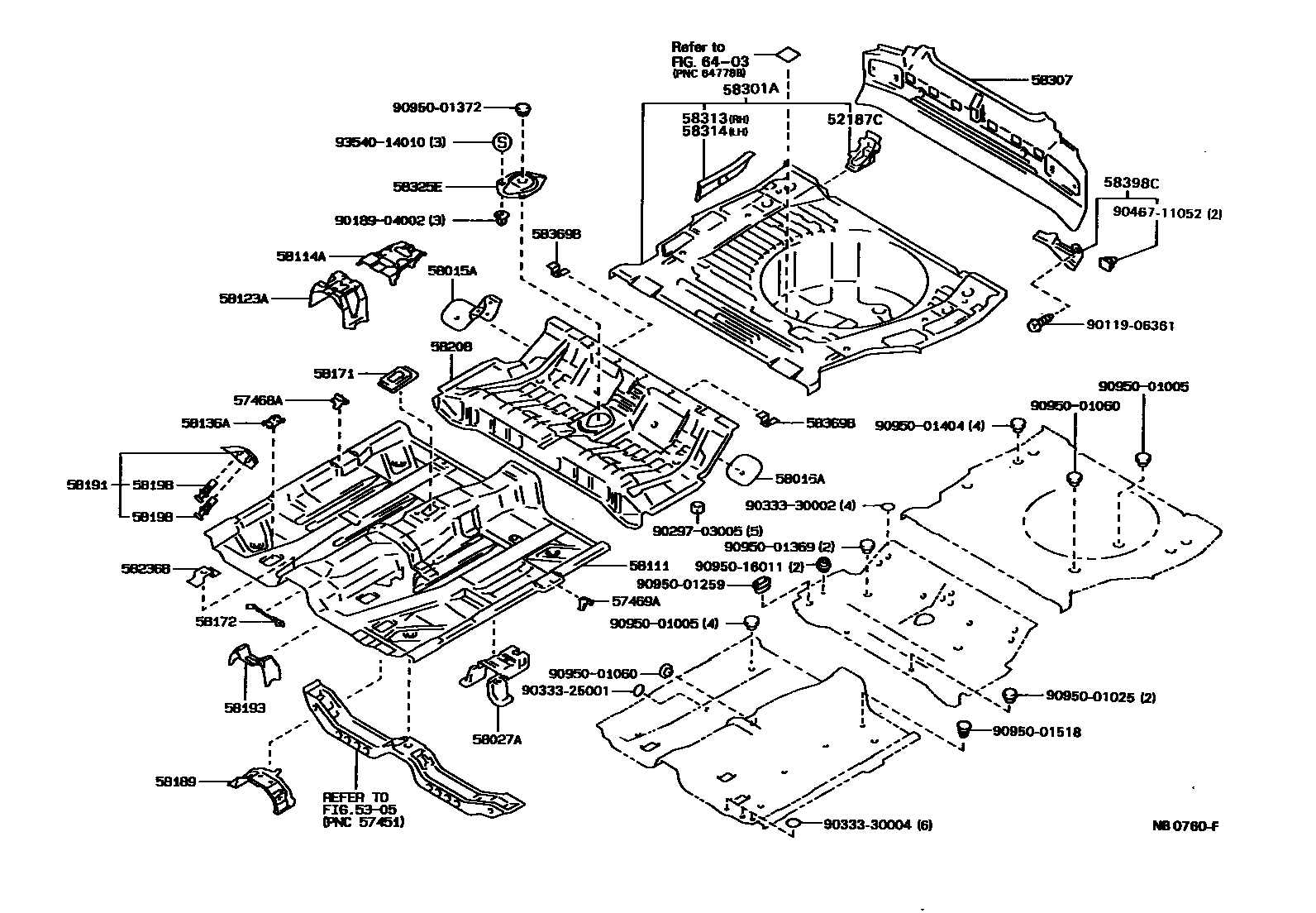

Toyota CARINA FF — FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1 0003 1 0004 1

52187CBRACKET, REAR BUMPER SIDE, NO.2

main52187-20060iAT170,171,CT170,ST170..SED198805-199208

5305

57468ABRACKET, FRONT SEAT, OUTSIDE, REAR RH

main57468-20030iAT170,171,CT17#,ET176,ST170198805-199211

main57468-20040iAT175198808-199208

57469ABRACKET, FRONT SEAT, OUTSIDE, REAR LH

main57469-20030iAT170,171,CT17#,ET176,ST170198805-199211

main57469-20040iAT175198808-199208

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-32030iAT170,171,CT170,ST170198805-199211

58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH

main58016-32020iAT170,171,CT170,ST170198805-199211

58027AREINFORCE SUB-ASSY, SEAT BELT ANCHOR

main58027-20050iAT171,ET176..DX,GLIM,SG,STD198805-199208

main58027-20070iAT170,171,CT17#,ST170..DX,S,SE,SG,SGEXT,SV,SX198805-199211

main58027-20090iAT175198808-199208

58111PAN, FRONT FLOOR

main58111-20111iAT175198808-198812

sub58111-20112

sub57408-20031

sub58277-20032

sub90950-01060

main58111-20113iAT175198812-199208

main58111-20120iAT170,171,CT17#,ET176,ST170198805-199211

58114AREINFORCEMENT, FRONT FLOOR PANEL

main58114-20040iAT170,171,CT17#,ET176,ST170198805-199211

58123ASUPPORT, SHIFT & SELECT LEVER

main58123-20040iAT170,171,CT17#,ET176,ST170198805-199211

58136ACOVER, FRONT FLOOR SERVICE HOLE

main58136-20010iAT170,171,CT17#,ET176,ST170198805-199211

58171REINFORCEMENT, PARKING BRAKE BASE

main58107-20040iAT170,171,CT17#,ET176,ST170198805-198912

main58171-20090iAT175198808-199208

main58171-20100iAT170,171,CT17#,ET176,ST170198912-199211

58172BRACKET, COMPUTER MOUNTING, NO.3

main58172-20040iAT170,171,CT17#,ET176,ST170198805-199211

58189REINFORCEMENT, EXHAUST PIPE CLAMP BRACKET

main58189-20020iAT170,171,CT17#,ET176,ST170198805-199211

58191FOOTREST, FRONT FLOOR

main58191-20030iAT175198808-199208

main58191-20040iAT170,171,CT170,ST170198805-199211

58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING

main58109-20090iAT170,171,CT17#,ET176,ST170198805-199211

main58109-20100iAT175198808-199208

58198CLIP, FOOTREST

main58198-20020iAT170,171,CT170,ST170198805-199211

L=97.1

main58198-20030iAT170,171,CT170,ST170198805-199211

L=89.1

58208PAN, CENTER FLOOR

main58201-32090iAT175198808-199208

main58211-32051iAT170,171,CT170,ST170198805-199211

58236BBRACKET, CENTER FLOOR HEAT INSULATOR

main58236-14010iAT171,ET176..DX,GLIM,SG,STD198805-199208

58301APANEL SUB-ASSY, REAR FLOOR

main58301-20650iAT170,171,CT170,ST170..SED198805-199005

sub58301-20680

main58301-20680iCT170..SE;AT170,171,ST170..GLIM,S,SE,SG,SGEXT198805-199005

main58301-20680iAT170,171,CT170,ST170..SED199005-199208

main58301-95509iAT170,CT170,ST170..WG198805-199211

main58301-95510iCT176,ET176198805-198905

sub58301-95512

main58301-95512iCT176,ET176198905-199211

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-20670iAT17#,CT170,ST170..DX,S,SG,SGEXT198805-199208

main58307-20680iST170..SGEXT198902-199005

sub58307-20670

main58307-20680iAT170,171,CT170,ST170..GLIM,SE198805-199005

sub58307-20670

main58307-20690iAT170..(4FC,5F)..SG198805-199005

main58307-95516iAT170,CT170,ST170..WG198805-199211

main58307-95517iCT176,ET176198805-199211

58313PANEL, REAR FLOOR SIDE, RH

main58313-20290iST170..SE;AT170,171,CT170..SED199005-199208

main58313-20300iAT171198805-199208

sub58313-20290

main58313-20300iAT170,171,CT170,ST170..GLIM,S,SE199005-199208

sub58313-20290

main58313-20320iAT175198808-199208

58314PANEL, REAR FLOOR SIDE, LH

main58314-20270iST170..SE;AT170,171,CT170..SED199005-199208

main58314-20280iAT171198805-199208

sub58314-20270

main58314-20280iAT170,171,CT170,ST170..GLIM,S,SE199005-199208

sub58314-20270

main58314-20300iAT175198808-199208

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-12020iCT176,ET176198805-199211

main58325-20040iAT175198808-199208

main58325-32020iAT170,171,CT170,ST170198805-199211

58369BBRACKET, FUEL TUBE, NO.3

main58369-32010iAT170,171,CT170,ST170198805-199211

58398CCOVER, BODY LOWER BACK, LH

main58398-20070iAT170,171,CT170,ST170..SED198805-199208

6403

9011906361

main90119-06361

9018904002

main90189-04002

9029703005

main90297-03005

9033325001

main90333-25001

9033330002

main90333-30002

9033330004

main90333-30004

9046711052

main90467-11052

9095001005

main90950-01005

9095001025

main90950-01025

9095001060

main90950-01060

9095001259

main90950-01259

9095001369

main90950-01369

9095001372

main90950-01372

9095001404

main90950-01404

9095001518

main90950-01518

9095016011

main90950-16011

9354014010

main93540-14010

44 parts on this diagram · 4 diagrams in section
