Toyota CARINA FF — CONSOLE BOX & BRACKET

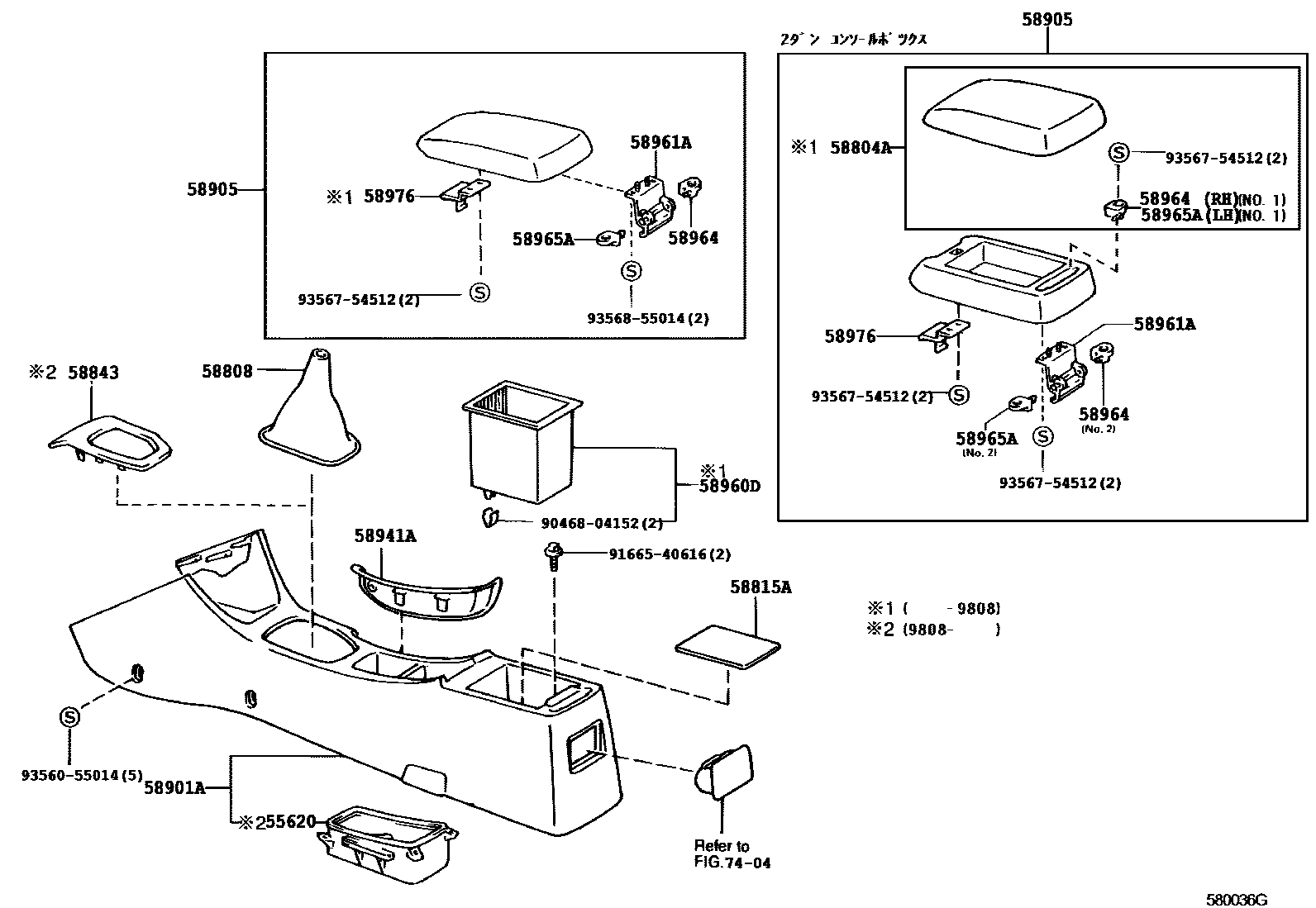

Parts diagram

55620HOLDER ASSY, INSTRUMENT PANEL CUP

main55604-20060-B0i199808

SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM13

main55604-20060-B1i199808

DK. CHARCOAL,TRIM12

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-20190-B0i199608-199808

SHADOW GRAY,TRIM1#

main58804-20190-E0i199608-199808

ANTELOPE,TRIM4#

main58804-20210-B0i199608-199808

main58804-20210-E0i199608-199808

main58804-20290-B0i199808-200112

SHADOW GRAY,TRIM13

main58804-20290-B1i199808-200112

DK.CHARCOAL,TRIM12

main58804-20300-B2i199808-200112

main58804-20300-B3i199808-200112

main58804-20300-B4i200101-200112

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-20130-C0i199608-199808

BLACK,TRIM1#; BLACK,TRIM1#,4#

main58808-20150-C0i199808

BLACK,TRIM1#; BLACK,TRIM12,13

58815ACARPET, CONSOLE BOX

main58815-20060i199608-199708

main58815-20070i199808

main58815-21010i199708-199808

58843BEZEL, SHIFTING HOLE

main58843-20130-B0i199808

SHADOW GRAY,TRIM13

main58843-20130-B1i199808

DK.CHARCOAL,TRIM12

main58843-20140i199808

main58843-20150i199808

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-20140-B0i199608-199808

SHADOW GRAY,TRIM1#

main58901-20140-E0i199608-199808

ANTELOPE,TRIM4#

main58901-20160-B0i199808

SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM13

main58901-20160-B1i199808

DK.CHARCOAL,TRIM12

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-20250-B0i199802-199807

main58905-20250-E0i199802-199807

main58905-20260-B0i199608-199808

SHADOW GRAY,TRIM1#

main58905-20260-E0i199608-199808

ANTELOPE,TRIM4#

main58905-20280-B0i199608-199808

main58905-20280-E0i199608-199808

main58905-20340-B0i199808

SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM13

main58905-20340-B1i199808

DK.CHARCOAL,TRIM12

main58905-20350-B0i199808

main58905-20350-B1i199808

main58905-20360-B2i199808

main58905-20360-B3i199808

main58905-20380-B0i200101

58941ACOVER, PARKING BRAKE HOLE

main58904-20050-B0i199608-199808

SHADOW GRAY,TRIM1#

main58904-20050-E0i199608-199808

ANTELOPE,TRIM4#

main58904-20070-B0i199808

SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM13

main58904-20070-B1i199808

DK.CHARCOAL,TRIM12

58960DHOLDER ASSY, CD CASE

main58960-20060i199608-199808

58961AHINGE, CONSOLE COMPARTMENT DOOR MALE

main58961-20030i199608

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-20030-C0i199608-199808

BLACK,TRIM1#; BLACK,TRIM1#,4#

main58964-20040i199608-199808

main58964-20050i199808

main58964-20060i199808

58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2

main58965-20040-C0i199608-199808

BLACK,TRIM1#; BLACK,TRIM1#,4#

main58965-20050i199608-199808

main58965-20060i199808

main58965-20070i199808

58976STRIKER, CONSOLE COMPARTMENT DOOR LOCK

main58976-20020i199608-199808

main58976-32020i199808

7404ASH RECEPTACLE

→ Go to FIG 74-04

9046804152

main90468-04152

9166540616

main91665-40616

9356055014

main93560-55014

9356754512

main93567-54512

9356855014

main93568-55014

19 parts on this diagram · 1 diagram in section

CONSOLE BOX & BRACKET for Toyota CARINA FF

This section contains 19 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota CARINA FF. Key components include: HOLDER ASSY, INSTRUMENT PANEL CUP, PANEL SUB-ASSY, CONSOLE, UPPER, COVER SUB-ASSY, SHIFTING HOLE, CARPET, CONSOLE BOX, BEZEL, SHIFTING HOLE.
