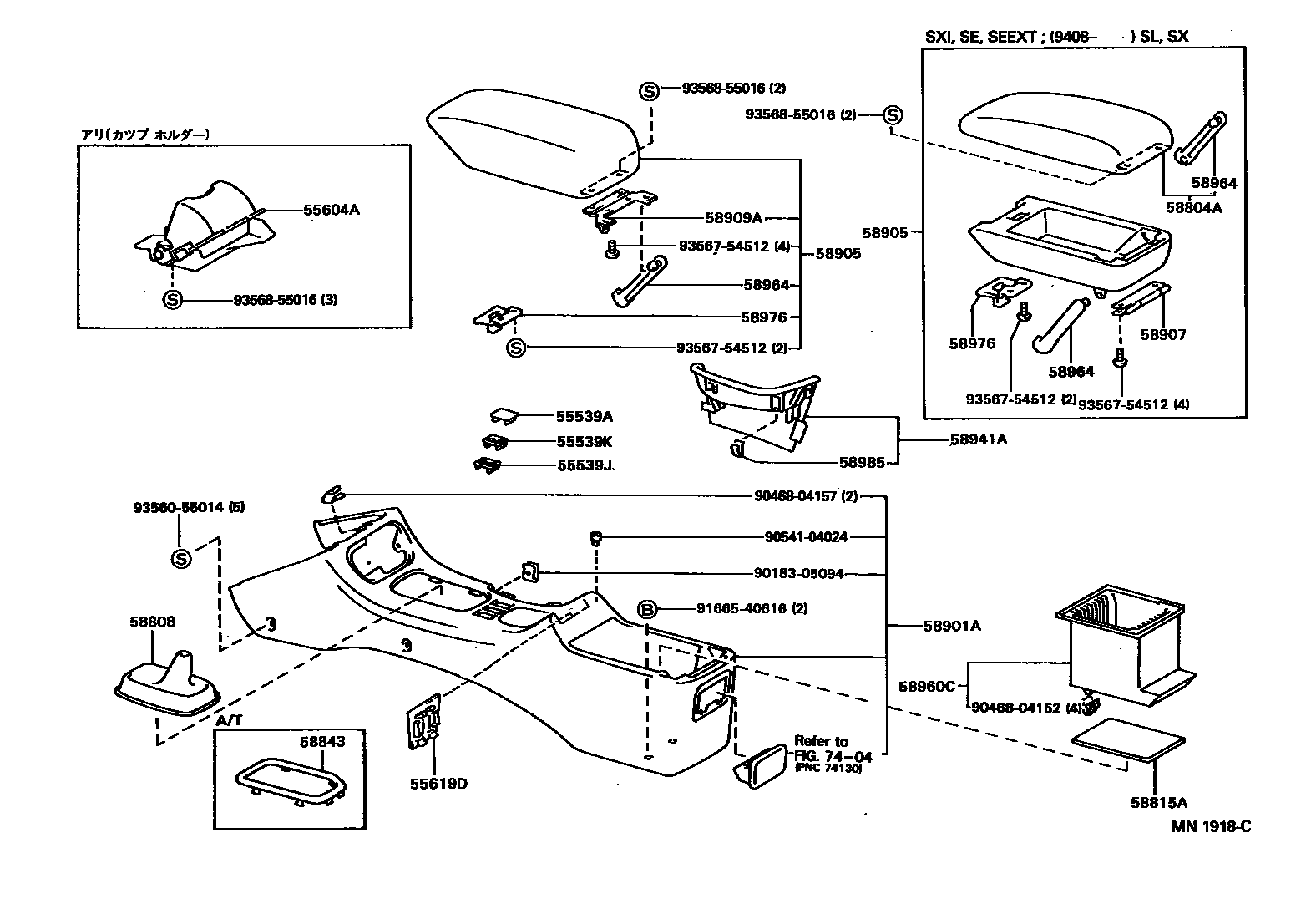

Toyota CARINA FF — CONSOLE BOX & BRACKET

55539ACOVER, SPARE SWITCH HOLE

main55539-12120-B0iAT19#,CT19#,ST195199408-199608

SHADOW GRAY,TRIM1#

sub55539-12120

sub55539-32010

main55539-12120-E0iAT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI199408-199608

ANTELOPE,TRIM4#

sub55539-12120

sub55539-32010

main55539-12130-B1iAT19#,CT19#,ST19#199208-199408

SHADOW GRAY,TRIM1#

sub55539-12130

sub55539-32010

main55539-12130-E0iAT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI199208-199408

DK.ROSE,TRIM4#

sub55539-12130

sub55539-32010

55539JCOVER, SPARE SWITCH HOLE

main55539-20020-E3iAT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI199208-199408

DK.ROSE,TRIM4#

sub55539-20020

main55539-20020-E4iAT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI199408-199608

ANTELOPE,TRIM4#

sub55539-20020

main55539-20020-P0iAT19#,CT19#,ST19#199208-199608

SHADOW GRAY,TRIM1#

sub55539-20020

55539KCOVER, SPARE SWITCH HOLE

main55539-20020-E3iAT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI199208-199408

DK.ROSE,TRIM4#

sub55539-20020

main55539-20020-E4iAT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI199408-199608

ANTELOPE,TRIM4#

sub55539-20020

main55539-20020-P0iAT19#,CT19#,ST19#199208-199608

SHADOW GRAY,TRIM1#

sub55539-20020

55604AHOLDER SUB-ASSY, INSTRUMENT PANEL CUP

main55604-20050-B1iAT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI199208-199608

SHADOW GRAY,TRIM1#

sub55604-20050

main55604-20050-B1iCT190..SG199308-199408

sub55604-20050

main55604-20050-E0iAT19#,CT19#,ST195..SE,SEEXT,SX,SXI199408-199608

ANTELOPE,TRIM4#

sub55604-20050

main55604-20050-E1iAT19#,CT19#,ST19#..SE,SEEXT,SX,SXI199208-199408

DK.ROSE,TRIM4#

sub55604-20050

main55604-20050-E1iCT190..SG199308-199408

sub55604-20050

55619DCOVER, CUP HOLDER HOLE

main55619-20010-B1iAT19#,CT19#,ST195..SG,SGI199208-199608

SHADOW GRAY,TRIM1#

sub55619-20010

main55619-20010-E0iAT19#,CT19#,ST195..SG,SGI199408-199608

ANTELOPE,TRIM4#

sub55619-20010

main55619-20010-E1iAT19#,CT19#,ST195..SG,SGI199208-199408

DK.ROSE,TRIM4#

sub55619-20010

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-20110-B2iAT19#,CT19#,ST195..SE,SL,SX,SXI199208-199608

SHADOW GRAY,TRIM1#

sub58804-20110

main58804-20110-E1iAT19#,CT19#,ST195..SE,SX,SXI199408-199608

ANTELOPE,TRIM4#

sub58804-20110

main58804-20110-E2iAT190,CT19#,ST19#..SE,SXI199208-199408

DK.ROSE,TRIM4#

sub58804-20110

main58804-20140-B2iST190..SEEXT199208-199408

GRAY,TRIM1#

main58804-20140-E1iST190..SEEXT199208-199408

ROSE,TRIM4#

main58804-20141-B3iAT191..SEEXT199408-199608

SHADOW GRAY,TRIM1#

main58804-20141-E2iAT191..SEEXT199408-199608

ANTELOPE,TRIM4#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-20100-C0iAT191,ST190..MTM..SL199208-199608

BLACK,TRIM1#,4#

main58808-20100-C0iAT19#,CT19#,ST19#..MTM..(SE,SG,SGI,SX,SXI)199208-199608

BLACK,TRIM1#

58815ACARPET, CONSOLE BOX

main58815-20030-B1iAT19#,CT19#,ST19#199208-199402

SHADOW GRAY,TRIM1#

sub58815-20030

main58815-20030-C0iAT191,ST190..SL199402-199608

BLACK,TRIM1#

sub58815-20030

main58815-20030-C0iAT191,ST190..SL199402-199608

BLACK,TRIM1#,4#

sub58815-20030

main58815-20030-E1iAT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI199208-199402

DK.ROSE,TRIM4#

sub58815-20030

58843BEZEL, SHIFTING HOLE

main58843-20060iAT19#,CT190,ST19#..ATM199305-199608

main58843-20090-B0iAT19#,CT190,ST19#..ATM199208-199305

SHADOW GRAY,TRIM1#

main58843-20090-E0iAT19#,CT190,ST19#..ATM..(SE,SEEXT,SG,SGI,SX,SXI)199208-199305

DK.ROSE,TRIM4#

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-20120-B1iAT19#,CT19#,ST19#199208-199402

SHADOW GRAY,TRIM1#

sub58901-20120

main58901-20120-B2iAT19#,CT19#,ST19#199402-199608

SHADOW GRAY,TRIM1#

sub58901-20120

main58901-20120-E1iAT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI199208-199402

DK.ROSE,TRIM4#

sub58901-20120

main58901-20120-E2iAT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI199408-199608

ANTELOPE,TRIM4#

sub58901-20120

main58901-20120-E3iAT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI199402-199408

DK. ROSE,TRIM4#

sub58901-20120

main58901-21010-B1iAT19#,CT19#,ST195..SG,SGI199408-199608

main58901-21010-E0iAT19#,CT19#,ST195..SG,SGI199408-199608

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-20170-B1iAT19#,CT19#,ST19#..SG,SGI,SL,SX199208-199608

SHADOW GRAY,TRIM1#

sub58905-20170

main58905-20170-E0iAT19#,CT19#,ST195..SG,SGI199408-199608

ANTELOPE,TRIM4#

sub58905-20170

main58905-20170-E1iAT19#,CT19#,ST19#..SG,SGI,SX199208-199408

DK.ROSE,TRIM4#

sub58905-20170

main58905-20180-B1iAT190,CT19#,ST19#..SE,SXI199208-199608

SHADOW GRAY,TRIM1#

sub58905-20180

main58905-20180-E1iAT19#,CT19#,ST195..SE,SX,SXI199408-199608

ANTELOPE,TRIM4#

sub58905-20180

main58905-20180-E2iAT190,CT19#,ST19#..SE,SXI199208-199408

DK.ROSE,TRIM4#

sub58905-20180

main58905-20210-B3iST190..SEEXT199208-199408

SHADOW GRAY,TRIM1#

main58905-20210-E2iST190..SEEXT199208-199408

DK. ROSE,TRIM4#

main58905-20211-B4iAT191..SEEXT199408-199608

SHADOW GRAY,TRIM1#

main58905-20211-E3iAT191..SEEXT199408-199608

ANTELOPE,TRIM4#

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-20020iAT19#,CT19#,ST195..SE,SEEXT,SL,SX,SXI199208-199608

58909ASTOPPER SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58909-20030iAT19#,CT19#,ST19#..SG,SGI,SL,SX199208-199608

58941ACOVER, PARKING BRAKE HOLE

main58904-20030-B1iAT19#,CT19#,ST19#199208-199608

SHADOW GRAY,TRIM1#

sub58904-20030

main58904-20030-E0iAT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI199408-199608

ANTELOPE,TRIM4#

sub58904-20030

main58904-20030-E1iAT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI199208-199408

DK.ROSE,TRIM4#

sub58904-20030

main58904-21010-B0iAT19#,CT19#,ST195..SG,SGI199408-199608

sub58904-21010

main58904-21010-E0iAT19#,CT19#,ST195..SG,SGI199408-199608

sub58904-21010

58960CHOLDER ASSY, CASSETTE CASE

main58960-20050iAT190..S;AT191,CT19#,ST19#..SE,SEEXT,SL199208-199608

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-12040iAT19#,CT19#,ST19#..SG,SGI,SL,SX199208-199608

main58965-12040iAT19#,CT19#,ST195..SG,SGI199208-199608

58976STRIKER, CONSOLE COMPARTMENT DOOR LOCK

main58976-20020iAT19#,CT19#,ST19#199208-199608

58985RETAINER, CONSOLE BOX

main58985-20050iAT19#,CT19#,ST19#199208-199608

7404

9018305094

main90183-05094

9046804152

main90468-04152

9046804157

main90468-04157

9054104024

main90541-04024

9166540616

main91665-40616

9356055014

main93560-55014

9356754512

main93567-54512

9356855016

main93568-55016

27 parts on this diagram · 1 diagram in section
