Toyota CARINA FF — CONSOLE BOX & BRACKET
55539ACOVER, SPARE SWITCH HOLE
BLUE,BLUE,TRIM8#; SE-CUSTOM,BLUE,BLUE,TRIM8#
SE-CUSTOM,SHADOW GRAY,GRAY,TRIM1#; SHADOW GRAY,GRAY,TRIM1#
BEIGE,DARK BEIGE,TRIM4#
SE-CUSTOM,MY ROAD,SEPIA BROWN,BROWN,TRIM4#; SEPIA BROWN,BROWN,TRIM4#
GRAY,MEDIUM GRAY,TRIM1#
BLUE,DARK BLUE,TRIM8#
58808COVER SUB-ASSY, SHIFTING HOLE
SE-CUSTOM,SHADOW GRAY,GRAY,TRIM1#; SHADOW GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#; SE-CUSTOM,BLUE,BLUE,TRIM8#
BEIGE,DARK BEIGE,TRIM4#
SEPIA BROWN,BROWN,TRIM4#
GRAY,MEDIUM GRAY,TRIM1#
BLUE,DARK BLUE,TRIM8#
58810CONSOLE ASSY
SHADOW GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
SEPIA BROWN,BROWN,TRIM4#
GRAY,MEDIUM GRAY,TRIM1#
SE-CUSTOM,SHADOW GRAY,GRAY,TRIM1#; SHADOW GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#; SE-CUSTOM,BLUE,BLUE,TRIM8#
SE-CUSTOM,MY ROAD,SEPIA BROWN,BROWN,TRIM4#; SEPIA BROWN,BROWN,TRIM4#
SE-CUSTOM,SHADOW GRAY,GRAY,TRIM1#; SHADOW GRAY,GRAY,TRIM1#
BEIGE,DARK BEIGE,TRIM4#
GRAY,MEDIUM GRAY,TRIM1#
BLUE,DARK BLUE,TRIM8#
58812ABOX, CONSOLE, LOWER
SHADOW GRAY,GRAY,TRIM1#; ST-X,SHADOW GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#; ST-X,BLUE,BLUE,TRIM8#
BEIGE,DARK BEIGE,TRIM4#
GRAY,MEDIUM GRAY,TRIM1#
BLUE,DARK BLUE,TRIM8#
58812BSPACER, CONSOLE BOX, LOWER
ST-X
58813BOX, CONSOLE, UPPER
BEIGE,DARK BEIGE,TRIM4#
GRAY,MEDIUM GRAY,TRIM1#
BLUE,DARK BLUE,TRIM8#
58904ASTOPPER SUB-ASSY, CONSOLE COMPARTMENT DOOR
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
SE-CUSTOM,SHADOW GRAY,GRAY,TRIM1#; SHADOW GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#; SE-CUSTOM,BLUE,BLUE,TRIM8#
BEIGE,DARK BEIGE,TRIM4#
SE-CUSTOM,MY ROAD,SEPIA BROWN,BROWN,TRIM4#; SEPIA BROWN,BROWN,TRIM4#
GRAY,MEDIUM GRAY,TRIM1#
BLUE,DARK BLUE,TRIM8#
58976STRIKER, CONSOLE COMPARTMENT DOOR LOCK
58985RETAINER, CONSOLE BOX
7404ASH RECEPTACLE
9016750020
main90167-50020
9054104079
main90541-04079
9356754512
main93567-54512
9616000500
main96160-00500
15 parts on this diagram · 1 diagram in section

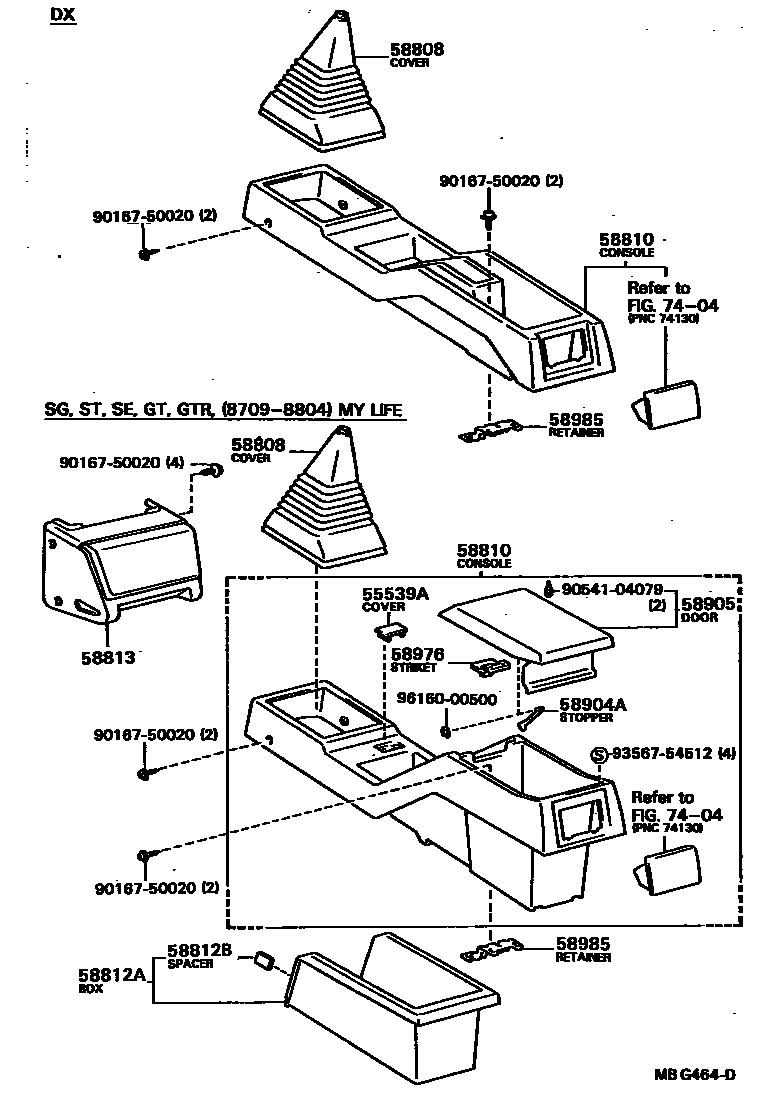

CONSOLE BOX & BRACKET for Toyota CARINA FF
This section contains 15 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota CARINA FF. Key components include: COVER, SPARE SWITCH HOLE, COVER SUB-ASSY, SHIFTING HOLE, CONSOLE ASSY, BOX, CONSOLE, LOWER, SPACER, CONSOLE BOX, LOWER.
