Toyota CARINA FF — CLUTCH & RELEASE FORK

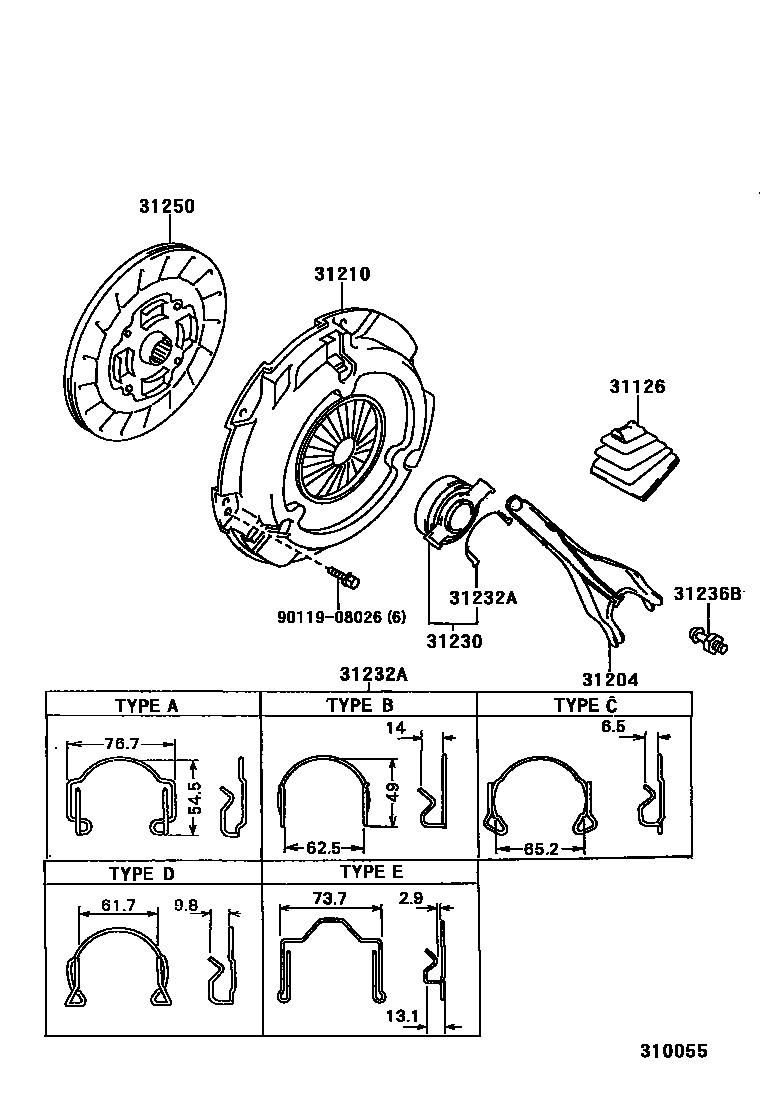

Parts diagram

31126BOOT, CLUTCH RELEASE FORK

main31126-12051i199608-200112

main31126-32010i199608-200112

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-17010i199608-200112

main31204-20100i199608-200112

31210COVER ASSY, CLUTCH

main31210-12152i199608

main31210-12191i199608

main31210-12201i199608

main31210-20331i199608

main31210-32130i199608-199808

main31210-44010i199808

31230BEARING ASSY, CLUTCH RELEASE

main31230-12170i199608-200101

main31230-12171i200101-200112

main31230-20170i199608-199808

main31230-32060i199608-200112

31232ACLIP, RELEASE BEARING HUB

main31232-12050i199608-199808

main31232-12060i199608-199808

main31232-12070i199608-200112

main31232-20020i199608-200112

main31232-32050i199608-200112

31236BSUPPORT, RELEASE FORK

main31236-12020i199608-200112

main31236-20060i199608-199808

main31236-32010i199608-200112

31250DISC ASSY, CLUTCH

main31250-12360i199608

main31250-20141i199608-199808

main31250-20271i199808

main31250-20280i199608

main31250-20290i199608-199808

main31250-32100i199608-199906

main31250-32101i199906

9011908026

main90119-08026

8 parts on this diagram · 1 diagram in section

CLUTCH & RELEASE FORK for Toyota CARINA FF

This section contains 8 genuine Toyota parts for the CLUTCH & RELEASE FORK system of the Toyota CARINA FF. Key components include: BOOT, CLUTCH RELEASE FORK, FORK SUB-ASSY, CLUTCH RELEASE, COVER ASSY, CLUTCH, BEARING ASSY, CLUTCH RELEASE, CLIP, RELEASE BEARING HUB.
