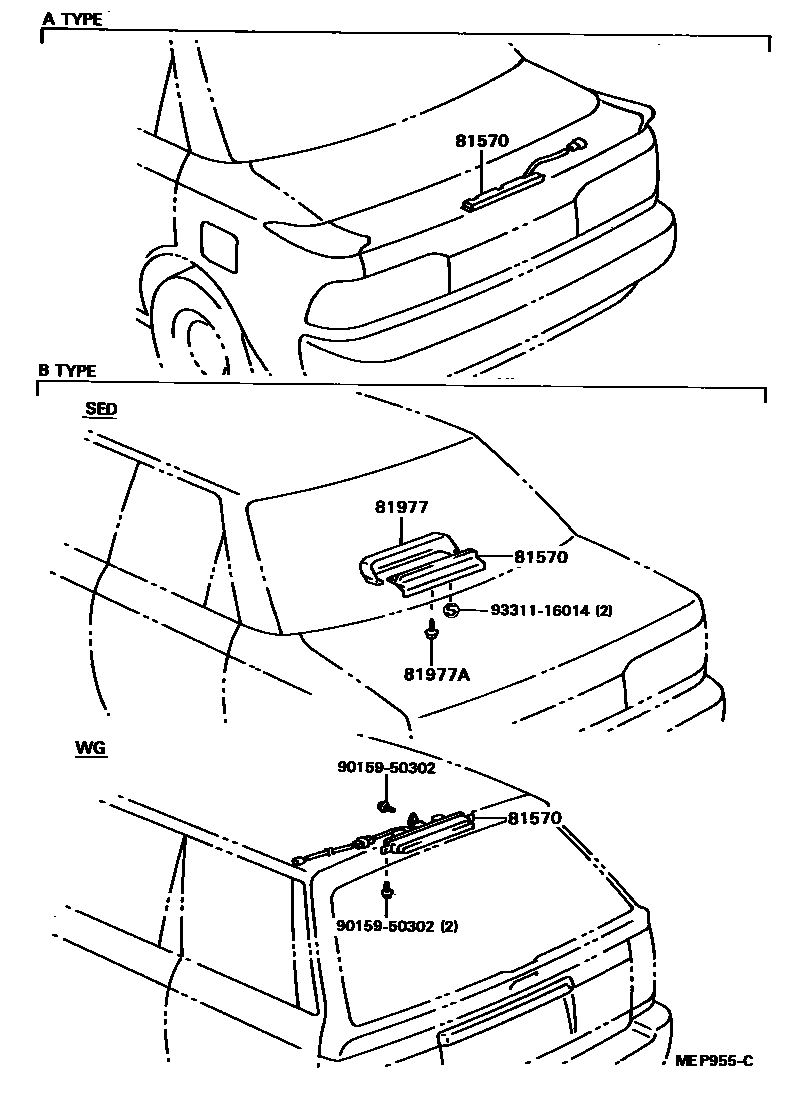

Toyota CARINA FF — CENTER STOP LAMP
81570LAMP ASSY, CENTER STOP
A TYPE
main81570-20130-03iAT175;CT170..SE;AT170,171,ST170..GLIM,S,SE,SG; CT170..SG;AT170,ST170..SGEXT199012-199208
GRAY,TRIM1#,B TYPE
main81570-20130-04iAT175;CT170..SE;AT170,171,ST170..S,SE,SG; CT170..SG;AT170,ST170..SGEXT199012-199208
BLUE,TRIM8#,B TYPE
main81570-20130-06iAT175;CT170..SE;AT170,171,ST170..S,SE,SG; CT170..SG;AT170,ST170..SGEXT199012-199208
SABLE,TRIM4#,B TYPE
81977COVER, CENTER STOP LAMP
GRAY,TRIM1#
BLUE,TRIM8#
main81977-20070-06iAT175;CT170..SE;AT170,171,ST170..S,SE,SG; CT170..SG;AT170,ST170..SGEXT199012-199208
SABLE,TRIM4#
81977ACLIP (FOR CENTER STOP LAMP)
main90467-06126-03×3iAT175;CT170..SE;AT170,171,ST170..GLIM,S,SE,SG; CT170..SG;AT170,ST170..SGEXT199012-199208
GRAY,TRIM1#
main90467-06126-04×3iAT175;CT170..SE;AT170,171,ST170..S,SE,SG; CT170..SG;AT170,ST170..SGEXT199012-199208
BLUE,TRIM8#
main90467-06126-06×3iAT175;CT170..SE;AT170,171,ST170..S,SE,SG; CT170..SG;AT170,ST170..SGEXT199012-199208
SABLE,TRIM4#
9015950302
main90159-50302
9331116014
main93311-16014
5 parts on this diagram · 1 diagram in section
CENTER STOP LAMP for Toyota CARINA FF
This section contains 5 genuine Toyota parts for the CENTER STOP LAMP system of the Toyota CARINA FF. Key components include: LAMP ASSY, CENTER STOP, COVER, CENTER STOP LAMP, CLIP (FOR CENTER STOP LAMP).
