Toyota CARINA FF — ANTENNA

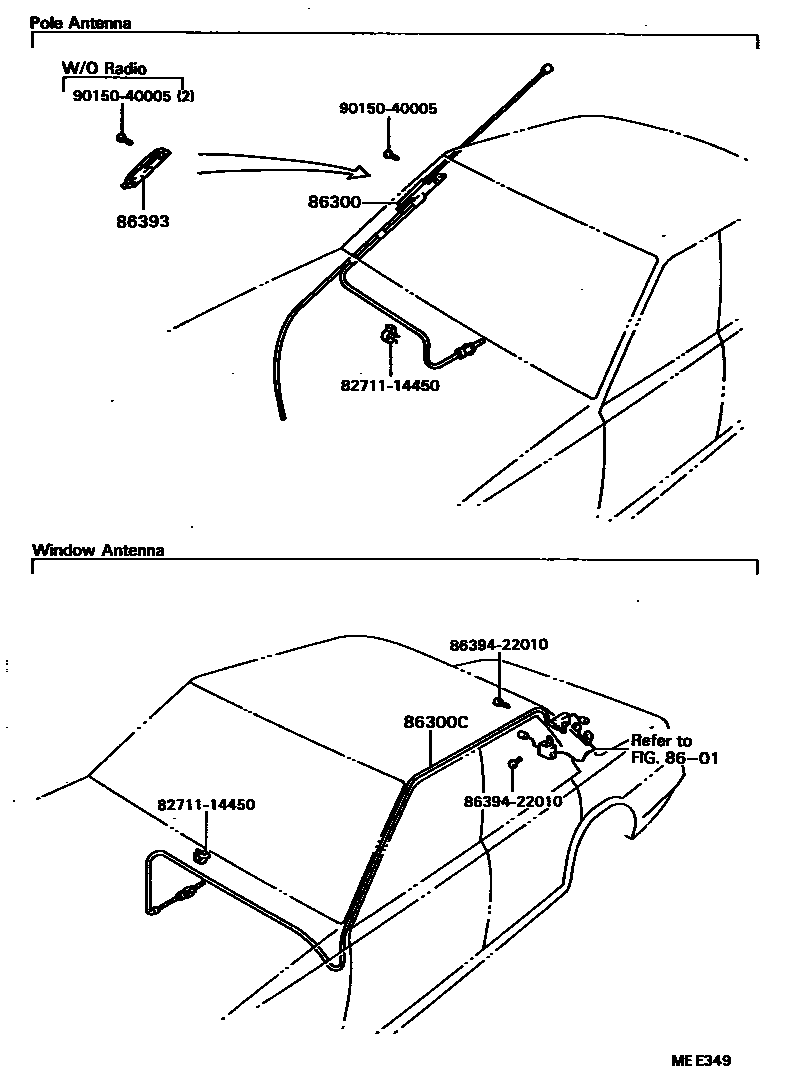

Parts diagram

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

86300ANTENNA ASSY, W/HOLDER

main86300-20430i198405-198605

main86300-20620i198710-198804

86300CANTENNA ASSY, AMPLIFIER, NO.2

main86300-20440i198405-198605

86393ORNAMENT, ANTENNA

main86392-20030i198405-198506

main86392-20031i198506-198804

8271114450WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14450

8639422010

main86394-22010

9015040005

main90150-40005

7 parts on this diagram · 1 diagram in section

ANTENNA for Toyota CARINA FF

This section contains 7 genuine Toyota parts for the ANTENNA system of the Toyota CARINA FF. Key components include: RADIO RECEIVER & AMPLIFIER & CONDENSER, ANTENNA ASSY, W/HOLDER, ANTENNA ASSY, AMPLIFIER, NO.2, ORNAMENT, ANTENNA, WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER).
