Toyota CARINA FF — ACCELERATOR LINK

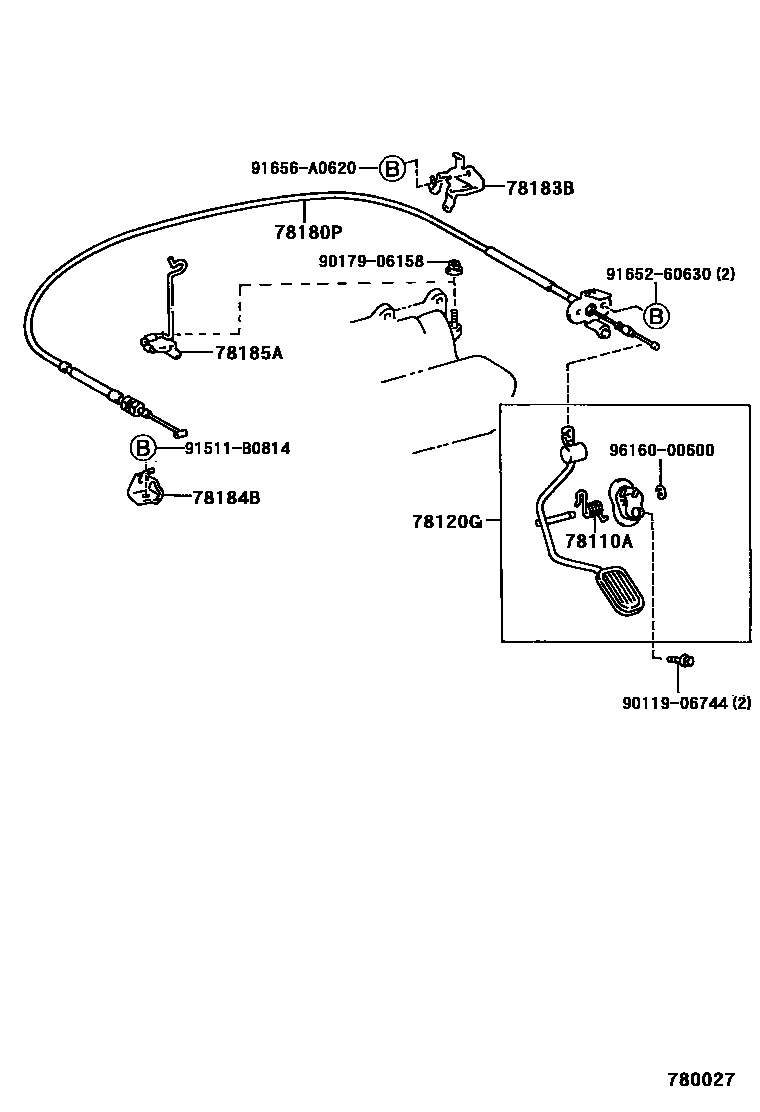

Parts diagram

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-26054i199608

main90959-03009i199608

main90959-03102i199608

main90959-03140i199808

main90959-03178i199808

78120GROD ASSY, ACCELERATOR PEDAL

main78010-20081i199808

main78010-21012i199808

main78120-20680i199608

main78120-20690i199608

main78120-20700i199608

main78120-20710i199608-199808

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-21090i199808

main78180-2D530i199608-199808

main78180-2D550i199608-199808

main78180-2D560i199608-199808

main78180-2D630i199608

main78180-2D660i199608-199808

main78180-2D661i199808

main78180-2D670i199608

main78180-2D680i199608

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-20170i199608

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-12280i199608

main78184-20290i199608

78185ACLAMP, ACCELERATOR CONTROL CABLE, NO.2

main78183-20200i199608

main78183-20240i199608

9011906744

main90119-06744

9017906158

main90179-06158

91511B0814

main91511-B0814

9165260630

main91652-60630

91656A0620

main91656-A0620

9616000600

main96160-00600

12 parts on this diagram · 5 diagrams in section

ACCELERATOR LINK for Toyota CARINA FF

This section contains 26 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota CARINA FF. Key components include: BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE, SPRING (FOR ACCELERATOR PEDAL ROD), PEDAL, ACCELERATOR, SPRING (FOR ACCELERATOR PEDAL), PIN (FOR ACCELERATOR PEDAL).
