Toyota CARINA FF — ACCELERATOR LINK

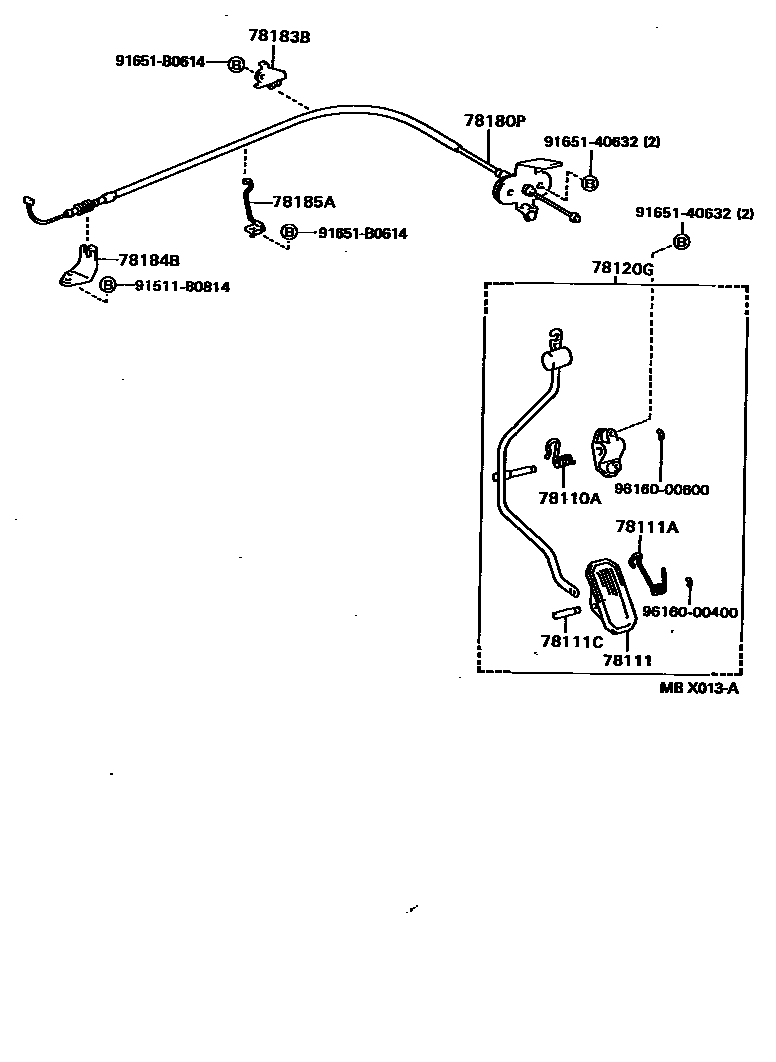

Parts diagram

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18048i199208-199608

main90508-26054i199208-199608

main90959-03009i199208-199608

78111PEDAL, ACCELERATOR

main78111-20050i199208-199608

main78111-32010i199208-199608

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-18050i199208-199608

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05001i199208-199608

78120GROD ASSY, ACCELERATOR PEDAL

main78120-20540i199208-199608

main78120-20550i199208-199608

main78120-20560i199208-199608

main78120-20570i199208-199608

main78120-20580i199208-199608

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-21040i199208-199608

main78180-2B850i199208-199608

main78180-2B860i199208-199608

main78180-2B870i199208-199608

main78180-2B880i199208-199307

main78180-2B881i199307-199608

main78180-2D100i199208-199410

main78180-2D101i199307-199608

main78180-2D150i199208-199608

main78180-2D200i199208-199608

main78180-2D210i199208-199608

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-20170i199208-199608

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-12280i199208-199608

main78184-20240i199208-199408

main78184-20290i199408-199608

78185ACLAMP, ACCELERATOR CONTROL CABLE, NO.2

main78183-20200i199208-199608

main78183-20300i199208-199608

91511B0814

main91511-B0814

9165140632

main91651-40632

91651B0614

main91651-B0614

9616000400

main96160-00400

9616000600

main96160-00600

14 parts on this diagram · 3 diagrams in section

ACCELERATOR LINK for Toyota CARINA FF

This section contains 25 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota CARINA FF. Key components include: BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE, SPRING (FOR ACCELERATOR PEDAL ROD), PEDAL, ACCELERATOR, SPRING (FOR ACCELERATOR PEDAL), PIN (FOR ACCELERATOR PEDAL).
