Toyota CARINA ED — SWITCH & RELAY & COMPUTER

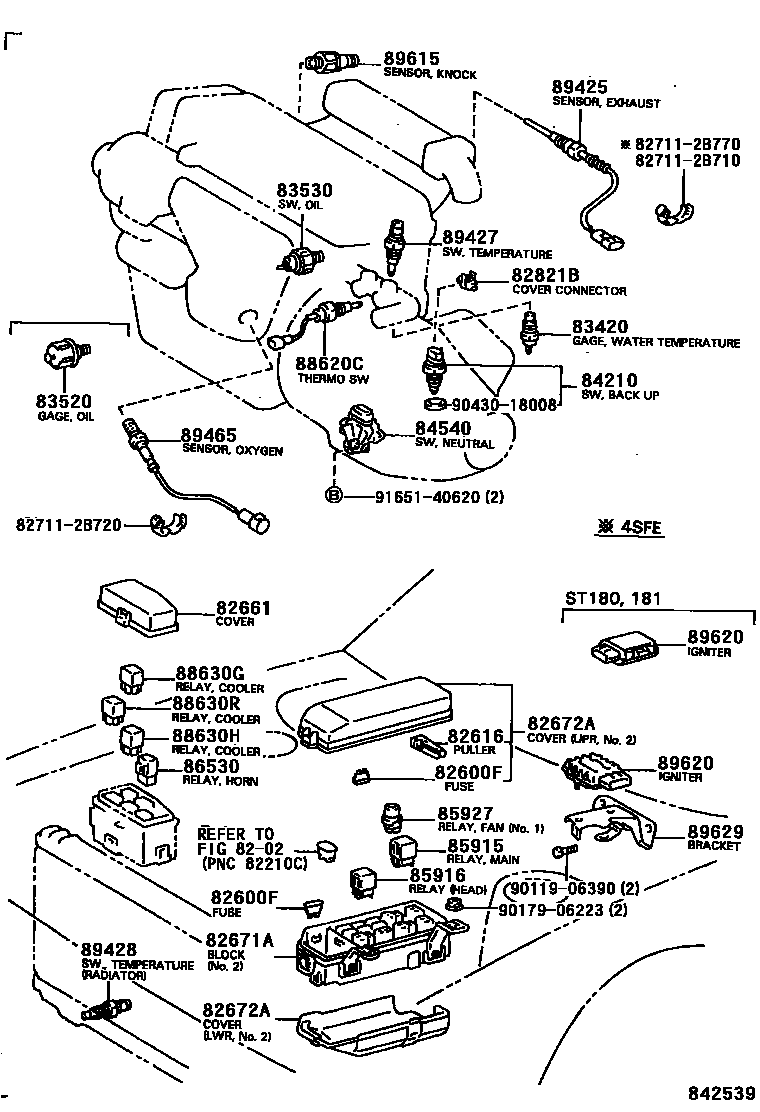

Parts diagram
8202
82600FFUSE, FUSE BLOCK
main90982-07011i198909-199309
main90982-09002i198909-199309
main90982-09003i198909-199309
main90982-09004i198909-199309
main90982-09005i198909-199309
82616PULLER, FUSE
main82616-12020i198909-199309
82661COVER, RELAY BLOCK, NO.1
main82662-20040i198909-199309
82671ABLOCK, JUNCTION
main82671-20150i198909-199309
NO.1
main82671-20210i198909-199309
82672ACOVER, JUNCTION BLOCK
main82672-20490i198909-199008
sub82672-20491
main82672-20491i199008-199309
main82672-20580i198909-199309
main82672-20590i198909-199309
LOWER,NO.2
main82672-20760i198909-199309
UPPER,NO.2
82821BCOVER, CONNECTOR
main82821-12250i199108-199203
main82821-12251i199203-199309
83420GAGE ASSY, WATER TEMPERATURE SENDER
main83420-16020i198909-199108
main83420-16040i199211-199309
main83420-20020i198909-199211
main83420-20030i199211-199309
sub83420-16040
83520GAGE ASSY,OIL PRESSURE SENDER
main83520-14043i198909-199309
83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
main83530-30080i198909-199309
sub83530-60040
84210SWITCH ASSY, BACK-UP LAMP
main84210-12040i198909-199309
sub84210-52050
84540SWITCH ASSY, NEUTRAL START
main84540-32070i198909-199309
sub84540-16040
85915RELAY, MAIN
main85925-17010i198909-199309
85916RELAY, LIGHT CONTROL
main90987-02006i198909-199309
HEADLAMP
main90987-02008i198909-199309
TAIL LAMP
85927RELAY, COOLING FAN
main28380-30010i198909-199309
NO.2
main90987-03001i198909-199309
NO.1
86530RELAY ASSY, HORN
main86530-20070i198909-199309
88620CTHERMO SWITCH ASSY
main88625-20290i198909-199009
main88625-20290i199009-199108
88630GRELAY ASSY, COOLER
main90987-04003i198909-199309
88630HRELAY ASSY, COOLER
main90987-02009i199108-199309
main90987-02010i198909-199108
sub90987-02009
main90987-02010i199108-199309
sub90987-02009
88630RRELAY ASSY, COOLER, NO.3
main90987-02009i198909-199108
main90987-02009i199108-199309
main90987-02010i198909-199008
sub90987-02009
main90987-02010i199108-199309
sub90987-02009
89425SENSOR, EXHAUST GAS TEMPERATURE
main89425-12210i198909-199008
sub89425-32090
main89425-20220i199108-199309
main89425-29515i198909-199008
sub89425-29565
main89425-29565i199008-199108
main89425-29595i199108-199309
main89425-32070i199008-199105
sub89425-32100
main89425-32100i199105-199108
89427SWITCH, TEMPERATURE DETECT
main89427-12070i198909-199008
89428SWITCH, TEMPERATURE DETECT, NO.2
main89428-15030i198909-199108
RADIATOR
main89428-20100i199108-199309
WATER INLET
main89428-30090i198909-199108
WATER INLET
main89428-33010i199108-199309
RADIATOR
89465SENSOR, OXYGEN
main89465-10020i199008-199309
main89465-29375i198909-199108
main89465-29545i199108-199309
main89465-32060i198909-199008
main89465-32140i199008-199309
89615SENSOR, KNOCK CONTROL
main89615-20010i199008-199108
main89615-20020i198909-199008
sub89615-20010
main89615-20030i199107-199309
sub89615-32040
main89615-30020i199008-199107
main89615-33020i199107-199309
sub89615-32030
main89615-50010i199108-199309
89620IGNITER ASSY
main89621-12010i198909-199108
main89621-12050i199108-199309
main89621-20040i199008-199309
main89621-26010i199008-199309
89629BRACKET, IGNITER ASSY
main89629-20120i198909-199309
827112B710WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2B710
827112B720WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2B720
827112B770WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2B770
9011906390
main90119-06390
9017906223
main90179-06223
9043018008
main90430-18008
9165140620
main91651-40620

34 parts on this diagram · 5 diagrams in section
