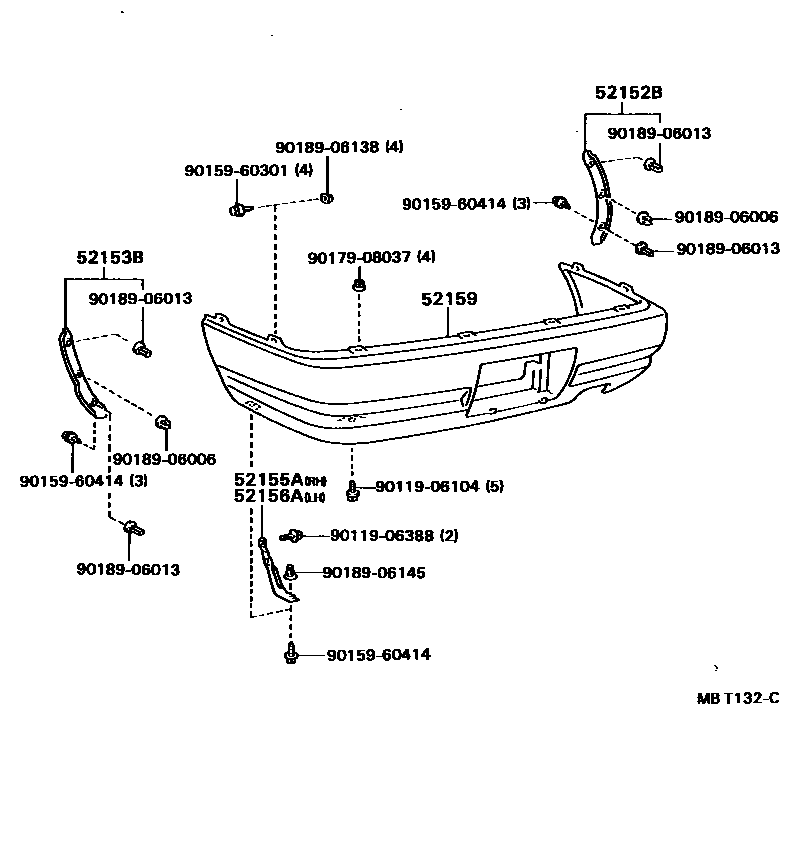

Toyota CARINA ED — REAR BUMPER & BUMPER STAY
52152BEXTENSION, REAR BUMPER, RH
52153BEXTENSION, REAR BUMPER, LH
52155ASUPPORT, REAR BUMPER SIDE, RH
52156ASUPPORT, REAR BUMPER SIDE, LH
52159COVER, REAR BUMPER
RED MICA,3H4
BLUISH GRAY M,182
DARK BLUE M M,8G5
LIGHT KHAKI G M M,6K7
SUPER WHITE 2,040
BLACKISH KHAKI M,6K8
WINE RED M,3J8
DARK MOSS GREEN M.M,6M4
BLACKISH KHAKI M,6K8
MEDIUM TURQUOISE M,749
DARK TURQUOISE MC,742
9011906104
main90119-06104
9011906388
main90119-06388
9015960301
main90159-60301
9015960414
main90159-60414
9017908037
main90179-08037
9018906006
main90189-06006
9018906013
main90189-06013
9018906138
main90189-06138
9018906145
main90189-06145
14 parts on this diagram · 1 diagram in section
REAR BUMPER & BUMPER STAY for Toyota CARINA ED
This section contains 14 genuine Toyota parts for the REAR BUMPER & BUMPER STAY system of the Toyota CARINA ED. Key components include: EXTENSION, REAR BUMPER, RH, EXTENSION, REAR BUMPER, LH, SUPPORT, REAR BUMPER SIDE, RH, SUPPORT, REAR BUMPER SIDE, LH, COVER, REAR BUMPER.
