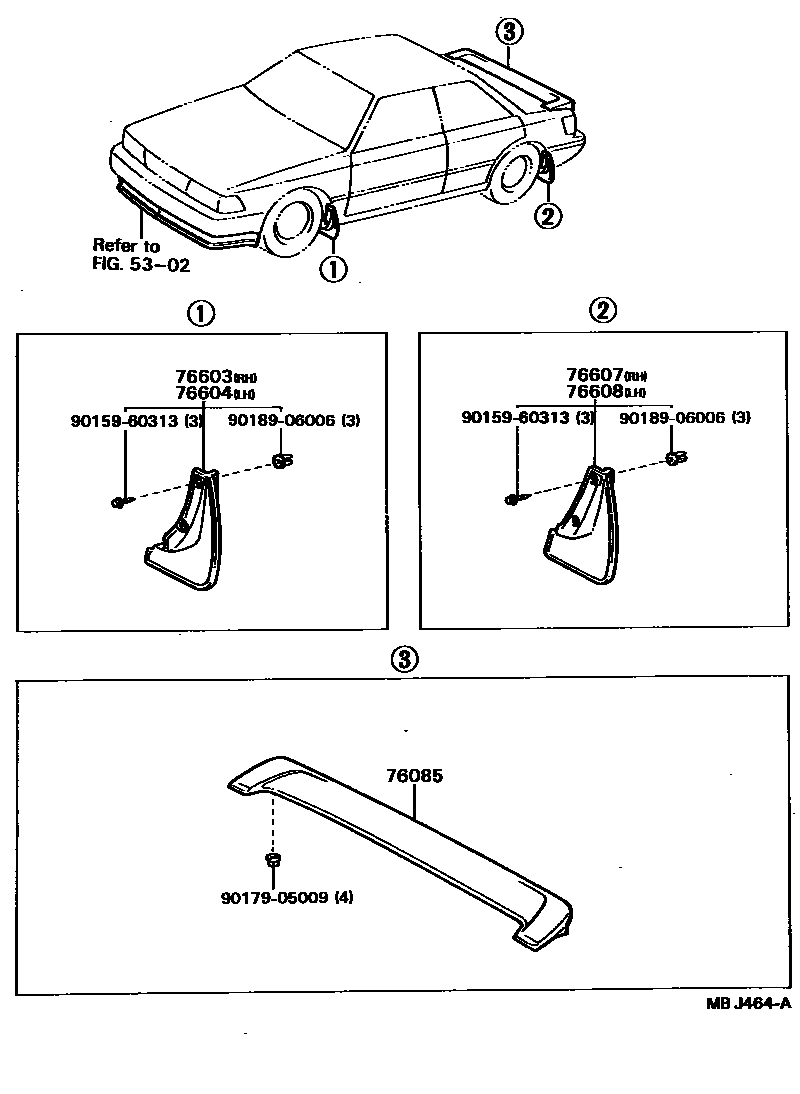

Toyota CARINA ED — MUDGUARD & SPOILER

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

76085SPOILER SUB-ASSY, REAR

main76085-20050-04i198708-198908

B BLUE MAICA M,8E4

main76085-20050-07i198708-198908

LIGHT GREEN METALLIC,6J9

main76085-20050-12i198708-198908

RED MAICA,3H4

main76085-20050-15i198708-198908

BEIGE METALLIC,4H9

main76085-20050-18i198708-198908

SUPER WHITE 2,040

main76085-20050-23i198708-198908

GRAY METALLIC,168 ,23E

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76621-29035i198708-198908

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76622-29035i198708-198908

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76625-29055i198708-198908

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76626-29055i198708-198908

9015960313

main90159-60313

9017905009

main90179-05009

9018906006

main90189-06006

9 parts on this diagram · 1 diagram in section

MUDGUARD & SPOILER for Toyota CARINA ED

This section contains 9 genuine Toyota parts for the MUDGUARD & SPOILER system of the Toyota CARINA ED. Key components include: HOOD & FRONT FENDER, SPOILER SUB-ASSY, REAR, MUDGUARD SUB-ASSY, FRONT FENDER, RH, MUDGUARD SUB-ASSY, FRONT FENDER, LH, MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH.
