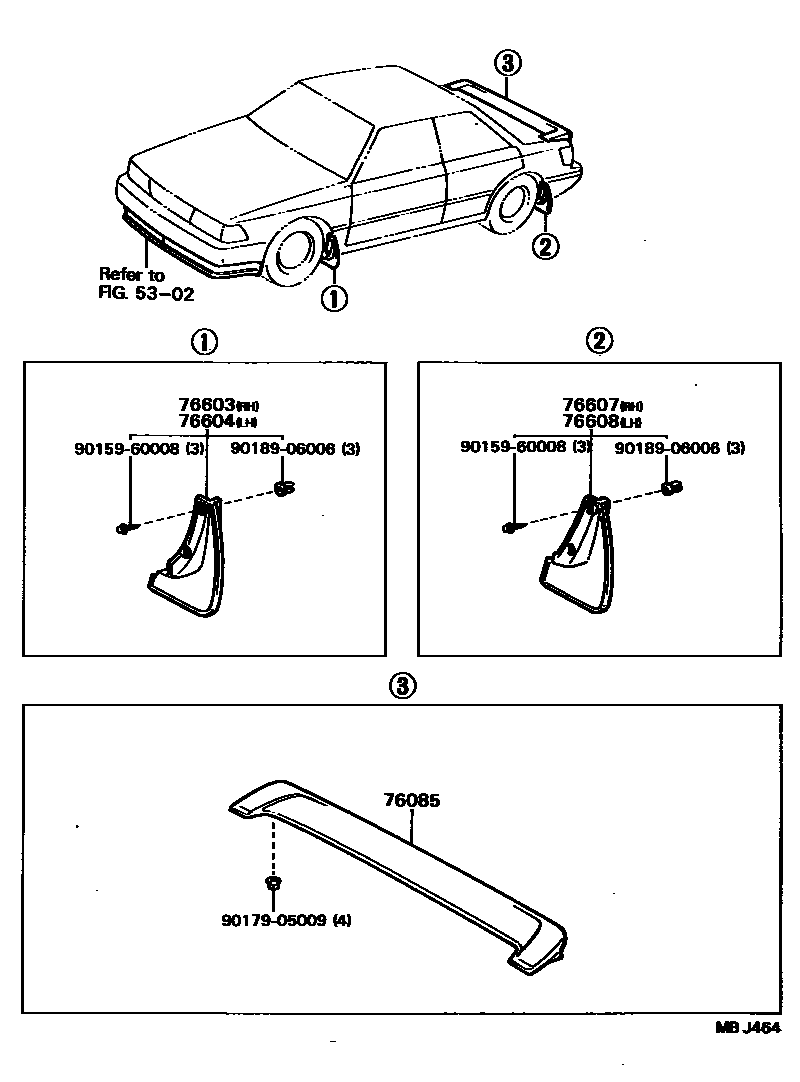

Toyota CARINA ED — MUDGUARD & SPOILER

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

76085SPOILER SUB-ASSY, REAR

main76085-20050-02i198508-198708

RED,RED METALLIC,3G7

main76085-20050-03i198508-198708

SILVER-M,BLUISH SILVER M,160

main76085-20050-05i198508-198708

BEIGE-M,LIGHT BEIGE METALLIC,2R4

main76085-20050-06i198508-198708

BROWN-M,BROWN METALLIC,4G3

main76085-20050-08i198508-198605

WHITE,WHITE,041

main76085-20050-13i198508-198708

SILVER-M,GREENISH SILVER M,154

main76085-20050-18i198605-198708

SUPER WHITE,SUPER WHITE 2,040

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76621-29035i198508-198708

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76622-29035i198508-198708

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76625-29055i198508-198708

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76626-29055i198508-198708

9015960008

main90159-60008

9017905009

main90179-05009

9018906006

main90189-06006

9 parts on this diagram · 1 diagram in section

MUDGUARD & SPOILER for Toyota CARINA ED

This section contains 9 genuine Toyota parts for the MUDGUARD & SPOILER system of the Toyota CARINA ED. Key components include: HOOD & FRONT FENDER, SPOILER SUB-ASSY, REAR, MUDGUARD SUB-ASSY, FRONT FENDER, RH, MUDGUARD SUB-ASSY, FRONT FENDER, LH, MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH.
