Toyota CARINA E (UKP) — WATER PUMP

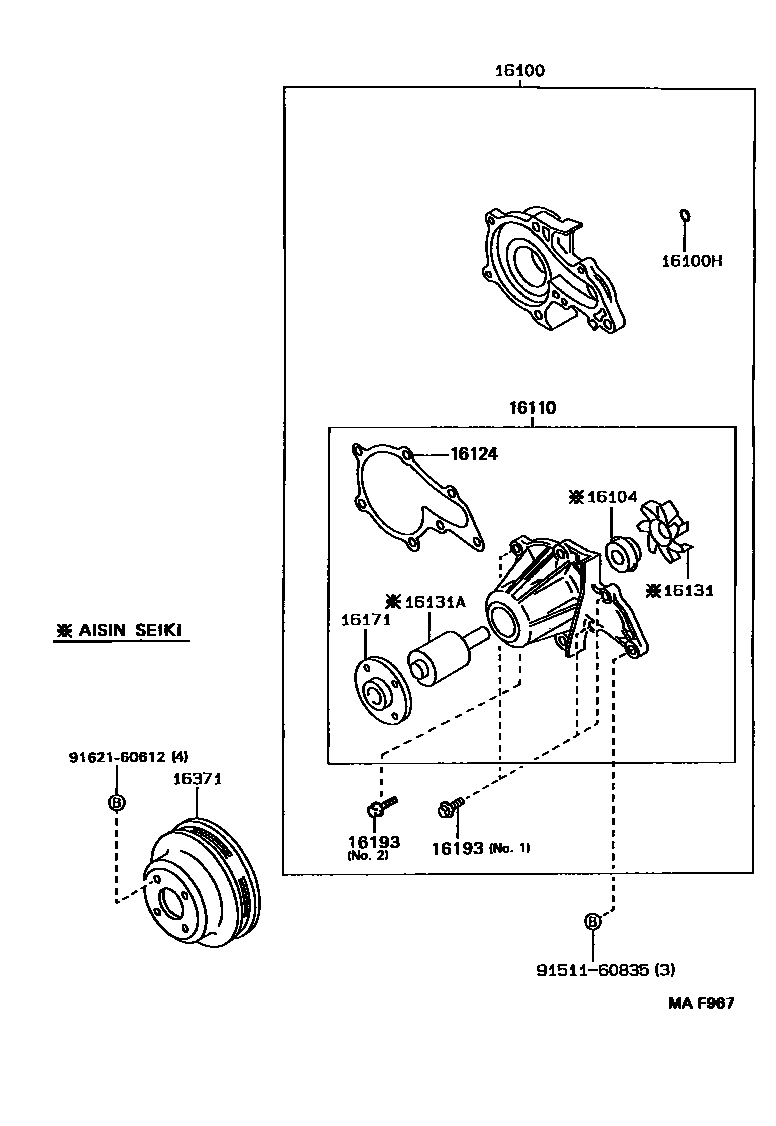

Parts diagram

16100PUMP ASSY, ENGINE WATER

main16100-09050i199412-199710

main16100-09060i199412-199601

main16100-09060i199601-199710

SEM

main16100-19255i199212-199412

main16100-19265i199601-199605

AISIN SEIKI

main16100-19305i199605-199710

AISIN SEIKI

main16100-69295i199410-199704

main16100-69296i199704-199710

main16100-79185i199212-199710

16100HRING, O(FOR WATER PUMP)

main90301-37005i199212-199710

main96711-24035i199212-199502

main96761-24035i199502-199710

16104SEAL SET, WATER PUMP

main16104-16040i199212-199412

main16104-54030i199605-199710

main16104-74010i199601-199605

16110PUMP ASSY, WATER, W/O COUPLING

main16110-09020i199412-199710

main16110-09030i199412-199601

main16110-09030i199601-199710

SEM

main16110-19135i199212-199412

main16110-19145i199212-199312

AISAN

main16110-19185i199601-199710

AISIN SEIKI

16124GASKET, WATER PUMP COVER

main16124-02010i199601-199710

SEM

main16124-02010i199412-199601

main16124-15110i199605-199710

AISIN SEIKI

main16124-16020i199212-199412

main16124-16050i199601-199605

AISIN SEIKI

main16124-74020i199212-199309

main16124-88460i199309-199710

16131ROTOR, WATER PUMP

main16131-16020i199212-199605

main16131-16090i199605-199710

16131ABEARING, WATER PUMP

main90029-36846i199605-199710

main90369-35071i199212-199605

16171SEAT, WATER PUMP PULLEY

main16171-10012i199212-199710

16193BOLT, STUD(FOR WATER PUMP COVER)

main16193-02020i199601-199710

SEM

main16193-02020i199412-199601

main16193-15011i199605-199710

AISIN SEIKI

main16193-15011i199212-199605

AISIN SEIKI, NO.1

main16193-15090i199212-199605

AISIN SEIKI, NO.2

main90029-01500i199212-199710

16371PULLEY, FAN

main16371-02030i199308-199710

main16371-15050i199212-199308

9151160835

main91511-60835

9162160612

main91621-60612

12 parts on this diagram · 3 diagrams in section
