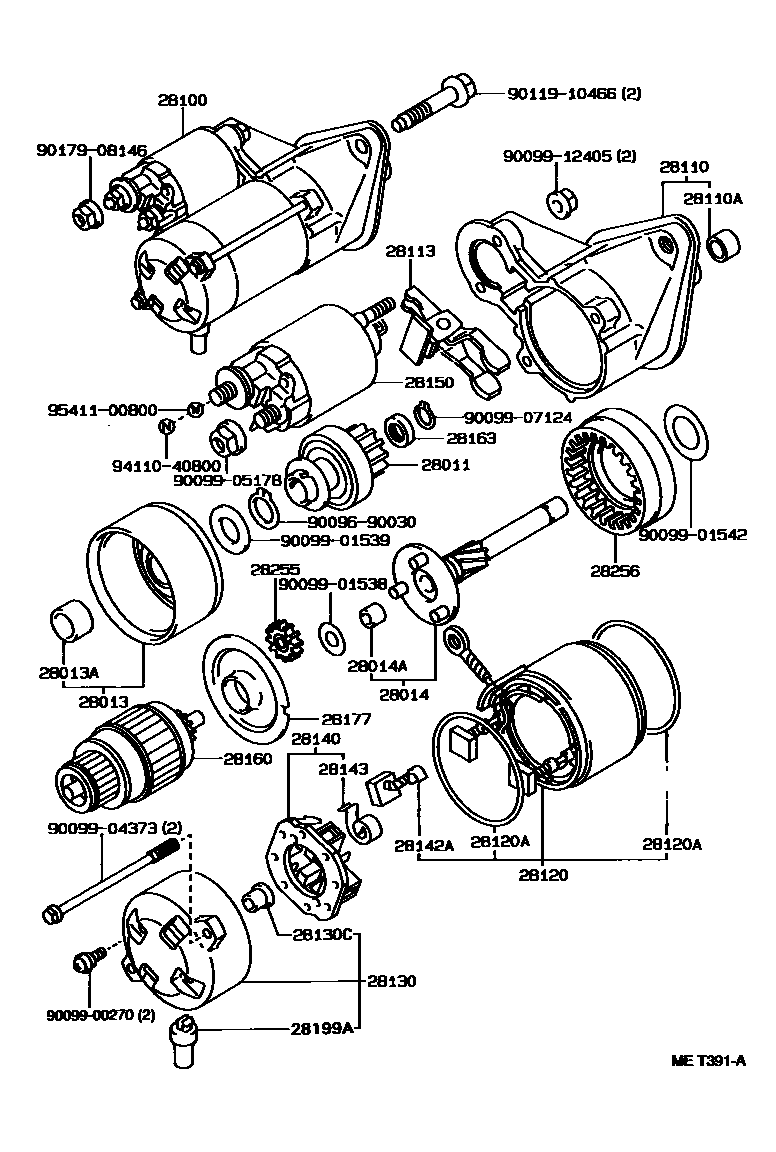

Toyota CARINA E (UKP) — STARTER
28011CLUTCH SUB-ASSY, STARTER
BOSCH
BOSCH
COLD SPEC
28013BEARING, STARTER CENTER & SHOCK ABSORBER, NO.1
sub28013-70030
28013ABEARING, STARTER CENTER & SHOCK ABSORBER, NO.2
28014SHAFT SUB-ASSY, PLANET CARRIER
BOSCH
28014ABUSH OR BEARING, PLANET CARRIER SHAFT
28100STARTER ASSY
12V 2.2KW,NIPPONDENSO
12V 1.4KW,COLD SPEC
28110ABEARING(FOR STARTER HOUSING)
28113LEVER, STARTER PINION DRIVE
BOSCH
28120YOKE ASSY, STARTER
BOSCH
BOSCH
NIPPONDENSO
COLD SPEC
COLD SPEC
COLD SPEC
28120ARING, O(FOR STARTER YOKE)
28130FRAME ASSY, STARTER COMMUTATOR END
BOSCH
COLD SPEC
COLD SPEC
28130CBEARING, STARTER FLANGE
28140HOLDER ASSY, STARTER BRUSH
BOSCH
COLD SPEC
COLD SPEC
28142ASTARTER KIT
28143SPRING, STARTER BRUSH
COLD SPEC
COLD SPEC
28163NUT OR COLLAR, PINION STOP, STARTER
28177PLATE(FOR STARTER ARMATURE)
28199APROTECTOR, DUST STARTER
COLD SPEC
28255GEAR, PLANET
28256GEAR, STARTER INTERNAL
9009690030
main90096-90030
9009900270
main90099-00270
9009901538
main90099-01538
9009901539
main90099-01539
9009901542
main90099-01542
9009904373
main90099-04373
9009905178
main90099-05178
9009907124
main90099-07124
9009912405
main90099-12405
9011910466
main90119-10466
9017908146
main90179-08146
9411040800
main94110-40800
9541100800
main95411-00800
36 parts on this diagram · 6 diagrams in section
