Toyota CARINA E (UKP) — REAR SEAT & SEAT TRACK

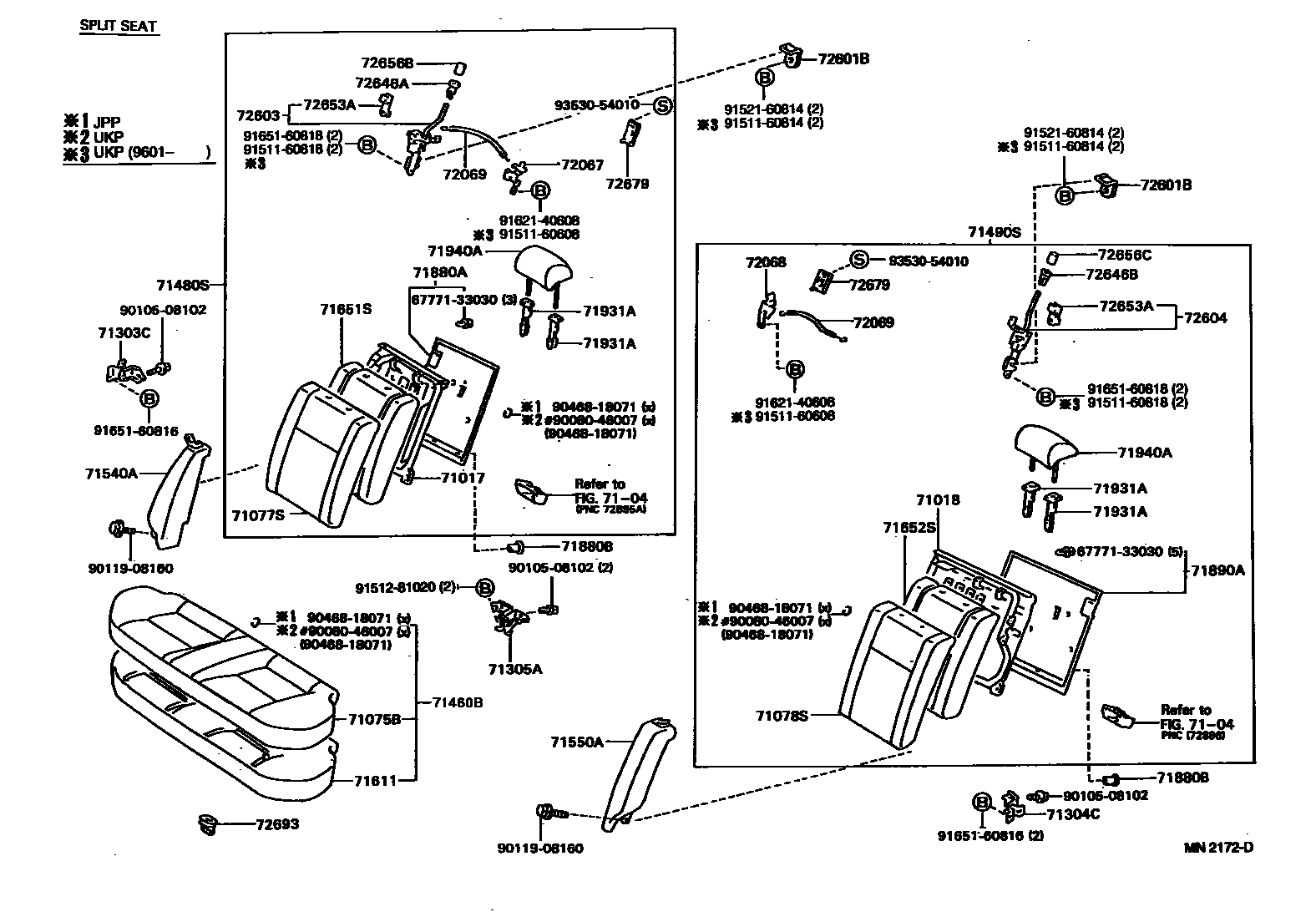

Parts diagram
71017FRAME SUB-ASSY, REAR SEATBACK, RH
main71017-05010i199212-199710
71018FRAME SUB-ASSY, REAR SEATBACK, LH
main71018-05010i199401-199409
W(GL FABRIC)
main71018-05010i199410-199506
XL LUXURY PACKAGE
main71018-05010i199611-199710
'97 SPRING CAMPAIGN OR '97 AUTUMN CAMPAIGN & W(VERTICAL ADJUSTER)
main71018-05010i199501-199601
EX FABRIC
main71018-05010i199501-199601
XL LUXURY PACKAGE & EX FABRIC
main71018-05010i199506-199601
GL FABRIC OR EX FABRIC
main71018-05010i199212-199710
main71018-05020i199407-199710
W(VERTICAL SEAT)
main71018-05020i199212-199710
main71018-05020i199505-199601
XL PACKAGE
7104
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
main71075-05010-B0i199212-199405
SEAT=TYPE A OR TYPE D-*104,GRAY,TRIM2#
main71075-05010-J0i199212-199405
SEAT=TYPE A OR TYPE D-*104,DK. BLUE,TRIM8#
main71075-05020-B1i199212-199405
SEAT=TYPE B-*104,GRAY,TRIM2#
main71075-05020-B1i199401-199405
SEAT=TYPE B-*104;W(GL FABRIC),GRAY,TRIM2#
main71075-05020-J1i199212-199405
SEAT=TYPE B-*104,DK. BLUE,TRIM8#
main71075-05020-J1i199401-199405
SEAT=TYPE B-*104;W(GL FABRIC),DK. BLUE,TRIM8#
main71075-05030-C1i199304-199405
SEAT=TYPE C-*104;W(SPORTS SEAT),BLACK,TRIM2#
main71075-05030-C3i199405-199601
SEAT=TYPE C-*104;W(SPORTS SEAT),BLACK,TRIM1#
main71075-05030-C3i199605-199710
SEAT=TYPE C-*104;SPORTS SEAT & W(VERTICAL ADJUSTER),BLACK,TRIM1#
main71075-05080-B3i199407-199601
SEAT=TYPE A OR TYPE D-*104;W(VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71075-05080-B3i199405-199601
SEAT=TYPE A OR TYPE D-*104,SHADOW GRAY,TRIM1#
main71075-05080-J3i199407-199601
SEAT=TYPE A OR TYPE D-*104;W(VERTICAL SEAT),DK. BLUE,TRIM8#
main71075-05080-J3i199405-199601
SEAT=TYPE A OR TYPE D-*104,DK. BLUE,TRIM8#
main71075-05090-B0i199405-199412
SEAT=TYPE B-*104,SHADOW GRAY,TRIM1#
main71075-05090-B0i199410-199412
XL LUXURY PACKAGE;SEAT=TYPE B-*104,SHADOW GRAY,TRIM1#
main71075-05090-B0i199407-199409
SEAT=TYPE B-*104;W(GL FABRIC),SHADOW GRAY,TRIM1#
main71075-05090-J0i199405-199412
SEAT=TYPE B-*104,DK. BLUE,TRIM8#
main71075-05090-J0i199410-199412
XL LUXURY PACKAGE;SEAT=TYPE B-*104,DK. BLUE,TRIM8#
main71075-05090-J0i199407-199409
SEAT=TYPE B-*104;W(GL FABRIC),DK. BLUE,TRIM8#
main71075-05091-B2i199412-199601
SEAT=TYPE B-*104,GRAY,TRIM1#
main71075-05091-B2i199412-199601
XL LUXURY PACKAGE;SEAT=TYPE B-*104,GRAY,TRIM1#
main71075-05091-J1i199412-199601
XL LUXURY PACKAGE;SEAT=TYPE B-*104,BLUE,TRIM8#
main71075-05091-J1i199412-199601
SEAT=TYPE B-*104,BLUE,TRIM8#
main71075-05120-B0i199501-199601
EX FABRIC;SEAT=TYPE E-*104,GRAY,TRIM1#
main71075-05140-B1i199611-199710
W(VERTICAL ADJUSTER & SEAT HEATER);SEAT=TYPE A-*104,SHADOW GRAY,TRIM1#
main71075-05140-B1i199611-199710
W(VERTICAL ADJUSTER),SHADOW GRAY;SEAT=TYPE A-*104,SHADOW GRAY,TRIM1#
main71075-05140-B1i199601-199710
SEAT=TYPE A-*104,SHADOW GRAY,TRIM1#
main71075-05140-J1i199601-199710
SEAT=TYPE A-*104,DK. BLUE,TRIM8#
main71075-05150-B0i199601-199710
SEAT=TYPE B-*104,SHADOW GRAY,TRIM1#
main71075-05150-J0i199601-199710
SEAT=TYPE B-*104,DK. BLUE,TRIM8#
main71075-05180-B0i199611-199710
SEAT=TYPE D-*104;'97 SPRING CAMPAIGN OR '97 AUTUMN CAMPAIGN & W(VERTICAL ADJUSTER),SHADOW GRAY,TRIM1#
main71075-05260-B0i199705-199710
'97 AUTUMN CAMPAIGN FABRIC & W(VERTICAL ADJUSTER);SEAT=TYPE E-*104,SHADOW GRAY,TRIM1#
main71075-05260-B0i199705-199710
'97 AUTUMN CAMPAIGN FABRIC;SEAT=TYPE E-*104,SHADOW GRAY,TRIM1#
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
main71077-05010-B0i199212-199405
SEAT=TYPE A OR TYPE D-*104,GRAY,TRIM2#
main71077-05010-J0i199212-199405
SEAT=TYPE A OR TYPE D-*104,DK. BLUE,TRIM8#
main71077-05020-B1i199401-199405
SEAT=TYPE B-*104;W(GL FABRIC),GRAY,TRIM2#
main71077-05020-B1i199212-199405
SEAT=TYPE B-*104,GRAY,TRIM2#
main71077-05020-J1i199401-199405
SEAT=TYPE B-*104;W(GL FABRIC),DK. BLUE,TRIM8#
main71077-05020-J1i199212-199405
SEAT=TYPE B-*104,DK. BLUE,TRIM8#
main71077-05030-C1i199212-199405
SEAT=TYPE C-*104;W(SPORTS SEAT),BLACK,TRIM2#
main71077-05030-C3i199605-199710
SEAT=TYPE C-*104;SPORTS SEAT & W(VERTICAL ADJUSTER),BLACK,TRIM1#
main71077-05030-C3i199405-199601
SEAT=TYPE C-*104;W(SPORTS SEAT),BLACK,TRIM1#
main71077-05060-B3i199407-199601
W(VERTICAL SEAT);SEAT=TYPE A-*104,SHADOW GRAY,TRIM1#
main71077-05060-B3i199505-199601
XL LUXURY PACKAGE;SEAT=TYPE A-*104,SHADOW GRAY,TRIM1#
main71077-05060-B3i199405-199601
SEAT=TYPE A-*104,SHADOW GRAY,TRIM1#
main71077-05060-B5i199412-199601
W(VERTICAL SEAT);SEAT=TYPE A-*104,GRAY,TRIM1#
main71077-05060-J3i199407-199601
W(VERTICAL SEAT);SEAT=TYPE A-*104,DK. BLUE,TRIM8#
main71077-05060-J3i199505-199601
XL LUXURY PACKAGE;SEAT=TYPE A-*104,DK. BLUE,TRIM8#
main71077-05060-J3i199405-199601
SEAT=TYPE A-*104,DK. BLUE,TRIM8#
main71077-05060-J4i199412-199601
W(VERTICAL SEAT);SEAT=TYPE A-*104,BLUE,TRIM8#
main71077-05070-B0i199407-199409
SEAT=TYPE B-*104;W(GL FABRIC),SHADOW GRAY,TRIM1#
main71077-05070-B0i199410-199412
XL LUXURY PACKAGE;SEAT=TYPE B-*104,SHADOW GRAY,TRIM1#
main71077-05070-B0i199405-199412
SEAT=TYPE B-*104,SHADOW GRAY,TRIM1#
main71077-05070-J0i199407-199409
SEAT=TYPE B-*104;W(GL FABRIC),DK. BLUE,TRIM8#
main71077-05070-J0i199405-199412
SEAT=TYPE B-*104,DK. BLUE,TRIM8#
main71077-05070-J0i199410-199412
XL LUXURY PACKAGE;SEAT=TYPE B-*104,DK. BLUE,TRIM8#
main71077-05071-B2i199412-199601
XL LUXURY PACKAGE;SEAT=TYPE B-*104,GRAY,TRIM1#
main71077-05071-B2i199412-199601
SEAT=TYPE B-*104,GRAY,TRIM1#
main71077-05071-B2i199506-199601
GL FABRIC;SEAT=TYPE B-*104,GRAY,TRIM1#
main71077-05071-J1i199412-199601
SEAT=TYPE B-*104,BLUE,TRIM8#
main71077-05071-J1i199412-199601
XL LUXURY PACKAGE;SEAT=TYPE B-*104,BLUE,TRIM8#
main71077-05071-J1i199506-199601
GL FABRIC;SEAT=TYPE B-*104,BLUE,TRIM8#
main71077-05090-B0i199501-199601
EX FABRIC;SEAT=TYPE E-*104,GRAY,TRIM1#
main71077-05110-B1i199601-199710
SEAT=TYPE A-*104,SHADOW GRAY,TRIM1#
main71077-05110-B1i199611-199710
W(VERTICAL ADJUSTER & SEAT HEATER);SEAT=TYPE A-*104,SHADOW GRAY,TRIM1#
main71077-05110-J1i199601-199710
SEAT=TYPE A-*104,DK. BLUE,TRIM8#
main71077-05120-B0i199601-199710
SEAT=TYPE B-*104,SHADOW GRAY,TRIM1#
main71077-05120-J0i199601-199710
SEAT=TYPE B-*104,DK. BLUE,TRIM8#
main71077-05130-B0i199611-199710
SEAT=TYPE D-*104;'97 SPRING CAMPAIGN OR '97 AUTUMN CAMPAIGN & W(VERTICAL ADJUSTER),SHADOW GRAY,TRIM1#
main71077-05210-B0i199705-199710
'97 AUTUMN CAMPAIGN FABRIC;SEAT=TYPE E-*104,SHADOW GRAY,TRIM1#
main71077-05210-B0i199705-199710
'97 AUTUMN CAMPAIGN FABRIC & W(VERTICAL ADJUSTER);SEAT=TYPE E-*104,SHADOW GRAY,TRIM1#
71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71078-05010-B1i199401-199405
GL FABRIC;SEAT=TYPE B-*104,GRAY,TRIM2#
main71078-05010-B1i199212-199405
SEAT=TYPE B-*104,GRAY,TRIM2#
main71078-05010-J1i199401-199405
GL FABRIC;SEAT=TYPE B-*104,DK. BLUE,TRIM8#
main71078-05010-J1i199212-199405
SEAT=TYPE B-*104,DK. BLUE,TRIM8#
main71078-05020-C1i199312-199405
SEAT=TYPE C-*104;W(SPORTS SEAT),BLACK,TRIM2#
main71078-05020-C1i199212-199405
W(SPORTS SEAT);SEAT=TYPE B-*104,BLACK,TRIM2#
main71078-05020-C3i199605-199710
SEAT=TYPE C-*104;SPORTS SEAT & W(VERTICAL ADJUSTER)-*99,BLACK,TRIM1#
main71078-05020-C3i199405-199601
SEAT=TYPE C-*104;W(SPORTS SEAT),BLACK,TRIM1#
main71078-05030-B0i199212-199405
SEAT=TYPE A OR TYPE D-*104,GRAY,TRIM2#
main71078-05030-J0i199212-199405
SEAT=TYPE A OR TYPE D-*104,DK. BLUE,TRIM8#
main71078-05050-B3i199405-199601
SEAT=TYPE A-*104,SHADOW GRAY,TRIM1#
main71078-05050-B3i199407-199601
W(VERTICAL SEAT);SEAT=TYPE A-*104,SHADOW GRAY,TRIM1#
main71078-05050-B3i199505-199601
XL LUXURY PACKAGE;SEAT=TYPE A-*104,SHADOW GRAY,TRIM1#
main71078-05050-J3i199407-199601
W(VERTICAL SEAT);SEAT=TYPE A-*104,DK. BLUE,TRIM8#
main71078-05050-J3i199505-199601
XL LUXURY PACKAGE;SEAT=TYPE A-*104,DK. BLUE,TRIM8#
main71078-05050-J3i199405-199601
SEAT=TYPE A-*104,DK. BLUE,TRIM8#
main71078-05060-B0i199407-199409
GL FABRIC;SEAT=TYPE B-*104,SHADOW GRAY,TRIM1#
main71078-05060-B0i199410-199412
XL LUXURY PACKAGE;SEAT=TYPE B-*104,SHADOW GRAY,TRIM1#
main71078-05060-B0i199405-199412
SEAT=TYPE B-*104,SHADOW GRAY,TRIM1#
main71078-05060-J0i199407-199409
GL FABRIC;SEAT=TYPE B-*104,DK. BLUE,TRIM8#
main71078-05060-J0i199405-199412
SEAT=TYPE B-*104,DK. BLUE,TRIM8#
main71078-05060-J0i199410-199412
XL LUXURY PACKAGE;SEAT=TYPE B-*104,DK. BLUE,TRIM8#
main71078-05061-B2i199412-199601
XL LUXURY PACKAGE;SEAT=TYPE B-*104,GRAY,TRIM1#
main71078-05061-B2i199506-199601
GL FABRIC;SEAT=TYPE B-*104,GRAY,TRIM1#
main71078-05061-B2i199412-199601
SEAT=TYPE B-*104,GRAY,TRIM1#
main71078-05061-J1i199412-199601
SEAT=TYPE B-*104,BLUE,TRIM8#
main71078-05061-J1i199412-199601
XL LUXURY PACKAGE;SEAT=TYPE B-*104,BLUE,TRIM8#
main71078-05061-J1i199506-199601
GL FABRIC;SEAT=TYPE B-*104,BLUE,TRIM8#
main71078-05070-B0i199501-199601
EX FABRIC;SEAT=TYPE E-*104,GRAY,TRIM1#
main71078-05080-B1i199601-199710
SEAT=TYPE A-*104,SHADOW GRAY,TRIM1#
main71078-05080-B1i199611-199710
W(VERTICAL ADJUSTER & SEAT HEATER);SEAT=TYPE A-*104,SHADOW GRAY,TRIM1#
main71078-05080-J1i199601-199710
SEAT=TYPE A-*104,DK. BLUE,TRIM8#
main71078-05090-B0i199601-199710
SEAT=TYPE B-*104,SHADOW GRAY,TRIM1#
main71078-05090-J0i199601-199710
SEAT=TYPE B-*104,DK. BLUE,TRIM8#
main71078-05100-B0i199611-199710
SEAT=TYPE D-*104;'97 SPRING CAMPAIGN OR '97 AUTUMN CAMPAIGN & W(VERTICAL ADJUSTER),SHADOW GRAY,TRIM1#
main71078-05180-B0i199705-199710
'97 AUTUMN CAMPAIGN FABRIC & W(VERTICAL ADJUSTER);SEAT=TYPE E-*104,SHADOW GRAY,TRIM1#
main71078-05180-B0i199705-199710
'97 AUTUMN CAMPAIGN FABRIC;SEAT=TYPE E-*104,SHADOW GRAY,TRIM1#
71303CHINGE SUB-ASSY, REAR SEATBACK, RH
main71303-05010i199212-199710
71304CHINGE SUB-ASSY, REAR SEATBACK, LH
main71304-05010i199212-199710
71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER
main71305-05010i199212-199601
main71305-05020i199601-199710
71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
main71460-05010-C0i199212-199405
***,SEAT=TYPE A OR TYPE D-*104,BLACK,TRIM2#
main71460-05010-J0i199212-199405
***,SEAT=TYPE A OR TYPE D-*104,DK. BLUE,TRIM8#
main71460-05020-C0i199401-199405
***,GL FABRIC;SEAT=TYPE B-*104,BLACK,TRIM2#
main71460-05020-C0i199212-199405
***,SEAT=TYPE B-*104,BLACK,TRIM2#
main71460-05020-J0i199212-199405
***,SEAT=TYPE B-*104,DK. BLUE,TRIM8#
main71460-05020-J0i199401-199405
***,GL FABRIC;SEAT=TYPE B-*104,DK. BLUE,TRIM8#
main71460-05030-B0i199405-199601
***,SEAT=TYPE C-*104;W(SPORTS SEAT),BLACK,TRIM1#
sub71460-05030
main71460-05030-B0i199412-199601
***,SEAT=TYPE C-*104,BLACK,TRIM1#
sub71460-05030
main71460-05030-B1i199605-199710
***,SEAT=TYPE C-*104;SPORTS SEAT & W(VERTICAL ADJUSTER),GRAY,TRIM1#
sub71460-05030
main71460-05030-C0i199212-199405
***,SEAT=TYPE C-*104;W(SPORTS SEAT),BLACK,TRIM2#
sub71460-05030
main71460-05070-B0i199505-199601
***,XL LUXURY PACKAGE;SEAT=TYPE A-*104,SHADOW GRAY,TRIM1#
main71460-05070-B0i199405-199601
***,SEAT=TYPE A-*104,SHADOW GRAY,TRIM1#
main71460-05070-B0i199407-199601
***,W(VERTICAL SEAT);SEAT=TYPE A-*104,SHADOW GRAY,TRIM1#
main71460-05070-J0i199405-199601
***,SEAT=TYPE A-*104,DK. BLUE,TRIM8#
main71460-05070-J0i199407-199412
***,W(VERTICAL SEAT);SEAT=TYPE A-*104,DK. BLUE,TRIM8#
main71460-05070-J0i199505-199601
***,XL LUXURY PACKAGE;SEAT=TYPE A-*104,DK. BLUE,TRIM8#
main71460-05080-B0i199407-199409
***,GL FABRIC;SEAT=TYPE B-*104,SHADOW GRAY,TRIM1#
main71460-05080-B0i199405-199412
***,SEAT=TYPE B-*104,SHADOW GRAY,TRIM1#
main71460-05080-B0i199410-199412
***,XL LUXURY PACKAGE;SEAT=TYPE B-*104,SHADOW GRAY,TRIM1#
main71460-05080-J0i199407-199409
***,GL FABRIC;SEAT=TYPE B-*104,DK. BLUE,TRIM8#
main71460-05080-J0i199410-199412
***,XL LUXURY PACKAGE;SEAT=TYPE B-*104,DK. BLUE,TRIM8#
main71460-05080-J0i199405-199412
***,SEAT=TYPE B-*104,DK. BLUE,TRIM8#
main71460-05110-B0i199501-199601
***,EX FABRIC;SEAT=TYPE E-*104,SHADOW GRAY,TRIM1#
main71460-05110-B0i199501-199601
***,SEAT=TYPE E-*104;EX FABRIC-*99,SHADOW GRAY,TRIM1#
main71460-05130-B0i199611-199710
W(VERTICAL ADJUSTER),SHADOW GRAY;SEAT=TYPE A-*104,SHADOW GRAY,TRIM1#
main71460-05130-B0i199611-199710
***,W(VERTICAL ADJUSTER & SEAT HEATER);SEAT=TYPE A-*104,SHADOW GRAY,TRIM1#
main71460-05130-B0i199601-199710
***,SEAT=TYPE A-*104,SHADOW GRAY,TRIM1#
main71460-05130-J0i199601-199710
***,SEAT=TYPE A-*104,DK. BLUE,TRIM8#
main71460-05140-B0i199601-199710
***,SEAT=TYPE B-*104,SHADOW GRAY,TRIM1#
main71460-05140-J0i199601-199710
***,SEAT=TYPE B-*104,DK. BLUE,TRIM8#
main71460-05170-B0i199611-199710
SEAT=TYPE D-*104;'97 SPRING CAMPAIGN OR '97 AUTUMN CAMPAIGN & W(VERTICAL ADJUSTER),SHADOW GRAY,TRIM1#
main71460-05250-B0i199705-199710
'97 AUTUMN CAMPAIGN FABRIC;SEAT=TYPE E-*104,SHADOW GRAY,TRIM1#
main71460-05250-B0i199705-199710
'97 AUTUMN CAMPAIGN & W(VERTICAL ADJUSTER);SEAT=TYPE E-*104,SHADOW GRAY,TRIM1#
71480SBACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)
main71480-05010-C0i199212-199405
***,SEAT=TYPE A-*104,BLACK,TRIM2#
main71480-05010-J0i199212-199405
***,SEAT=TYPE A-*104,DK. BLUE,TRIM8#
main71480-05020-C0i199401-199405
***,GL FABRIC;SEAT=TYPE B-*104,BLACK,TRIM2#
main71480-05020-C0i199212-199405
***,SEAT=TYPE B-*104,BLACK,TRIM2#
main71480-05020-J0i199212-199405
***,SEAT=TYPE B-*104,DK. BLUE,TRIM8#
main71480-05020-J0i199401-199405
***,GL FABRIC;SEAT=TYPE B-*104,DK. BLUE,TRIM8#
main71480-05030-B0i199405-199601
***,SEAT=TYPE C-*104;W(SPORTS SEAT),BLACK,TRIM1#
main71480-05030-C0i199212-199405
***,SEAT=TYPE C-*104;W(SPORTS SEAT),BLACK,TRIM2#
main71480-05031-B0i199412-199601
***,SEAT=TYPE C-*104;W(SPORTS SEAT),SHADOW GRAY,TRIM1#
sub71480-05031
main71480-05031-B1i199605-199710
***,SEAT=TYPE C-*104;SPORTS SEAT & W(VERTICAL ADJUSTER)-*99,GRAY,TRIM1#
sub71480-05031
main71480-05040-C0i199312-199405
***,SEAT=TYPE A-*104,BLACK,TRIM2#
main71480-05040-J0i199312-199405
***,SEAT=TYPE A-*104,DK. BLUE,TRIM8#
main71480-05050-C0i199312-199405
***,SEAT=TYPE B-*104,BLACK,TRIM2#
main71480-05050-C0i199401-199405
***,GL FABRIC;SEAT=TYPE B-*104,BLACK,TRIM2#
main71480-05050-J0i199401-199405
***,GL FABRIC;SEAT=TYPE B-*104,DK. BLUE,TRIM8#
main71480-05050-J0i199312-199405
***,SEAT=TYPE B-*104,DK. BLUE,TRIM8#
main71480-05060-B0i199405-199601
***,SEAT=TYPE C-*104;W(SPORTS SEAT),BLACK,TRIM1#
main71480-05060-C0i199312-199405
***,SEAT=TYPE C-*104;W(SPORTS SEAT),BLACK,TRIM2#
main71480-05061-B0i199412-199505
***,SEAT=TYPE C-*104,SHADOW GRAY,TRIM1#
sub71480-05061
main71480-05061-B0i199412-199601
***,SEAT=TYPE C-*104;W(SPORTS SEAT),SHADOW GRAY,TRIM1#
sub71480-05061
main71480-05061-B1i199605-199710
***,SEAT=TYPE C-*104;SPORTS SEAT & W(VERTICAL ADJUSTER)-*99,GRAY,TRIM1#
sub71480-05061
main71480-05070-B0i199501-199601
***,EX FABRIC;SEAT=TYPE E-*104,SHADOW GRAY,TRIM1#
main71480-05100-B0i199407-199412
***,W(VERTICAL SEAT);SEAT=TYPE A-*104,SHADOW GRAY,TRIM1#
main71480-05100-B0i199405-199412
***,SEAT=TYPE A-*104,SHADOW GRAY,TRIM1#
main71480-05100-J0i199405-199412
***,SEAT=TYPE A-*104,DK. BLUE,TRIM8#
main71480-05100-J0i199407-199412
***,W(VERTICAL SEAT);SEAT=TYPE A-*104,DK. BLUE,TRIM8#
main71480-05101-B0i199412-199601
***,SEAT=TYPE A-*104,SHADOW GRAY,TRIM1#
main71480-05101-B0i199412-199601
***,W(VERTICAL SEAT);SEAT=TYPE A-*104,SHADOW GRAY,TRIM1#
main71480-05101-B0i199505-199601
***,XL LUXURY PACKAGE;SEAT=TYPE A-*104,SHADOW GRAY,TRIM1#
main71480-05101-J0i199412-199601
***,SEAT=TYPE A-*104,DK.BLUE,TRIM8#
main71480-05101-J0i199412-199601
***,W(VERTICAL SEAT);SEAT=TYPE A-*104,DK.BLUE,TRIM8#
main71480-05101-J0i199505-199601
***,XL LUXURY PACKAGE;SEAT=TYPE A-*104,DK. BLUE,TRIM8#
main71480-05110-B0i199410-199412
***,XL LUXURY PACKAGE;SEAT=TYPE A OR TYPE B-*104,SHADOW GRAY,TRIM1#
main71480-05110-B0i199407-199409
***,GL FABRIC;SEAT=TYPE A OR TYPE B-*104,SHADOW GRAY,TRIM1#
main71480-05110-B0i199405-199412
***,SEAT=TYPE A OR TYPE B-*104,SHADOW GRAY,TRIM1#
main71480-05110-J0i199410-199412
***,XL LUXURY PACKAGE;SEAT=TYPE A OR TYPE B-*104,DK. BLUE,TRIM8#
main71480-05110-J0i199405-199412
***,SEAT=TYPE A OR TYPE B-*104,DK. BLUE,TRIM8#
main71480-05110-J0i199407-199409
***,GL FABRIC;SEAT=TYPE A OR TYPE B-*104,DK. BLUE,TRIM8#
main71480-05111-B3i199412-199601
***,SEAT=TYPE A OR TYPE B-*104,SHADOW GRAY,TRIM1#
main71480-05111-B3i199412-199601
***,XL LUXURY PACKAGE;SEAT=TYPE A OR TYPE B-*104,SHADOW GRAY,TRIM1#
main71480-05111-J2i199412-199601
***,XL LUXURY PACKAGE;SEAT=TYPE A OR TYPE B-*104,DK. BLUE,TRIM8#
main71480-05111-J2i199412-199601
***,SEAT=TYPE A OR TYPE B-*104,DK. BLUE,TRIM8#
main71480-05120-B0i199407-199412
***,W(VERTICAL SEAT);SEAT=TYPE A-*104,SHADOW GRAY,TRIM1#
main71480-05120-B0i199405-199412
***,SEAT=TYPE A-*104,SHADOW GRAY,TRIM1#
main71480-05120-J0i199407-199412
***,W(VERTICAL SEAT);SEAT=TYPE A-*104,DK. BLUE,TRIM8#
main71480-05120-J0i199405-199412
***,SEAT=TYPE A-*104,DK. BLUE,TRIM8#
main71480-05121-B0i199412-199601
***,SEAT=TYPE A-*104,SHADOW GRAY,TRIM1#
main71480-05121-B0i199505-199601
***,XL LUXURY PACKAGE;SEAT=TYPE A-*104,SHADOW GRAY,TRIM1#
main71480-05121-B0i199501-199601
***,W(VERTICAL SEAT);SEAT=TYPE A-*104,SHADOW GRAY,TRIM1#
main71480-05121-J0i199505-199601
***,XL LUXURY PACKAGE;SEAT=TYPE A-*104,DK. BLUE,TRIM8#
main71480-05121-J0i199412-199601
***,SEAT=TYPE A-*104,DK. BLUE,TRIM8#
main71480-05130-B0i199405-199412
***,SEAT=TYPE A OR TYPE B-*104,SHADOW GRAY,TRIM1#
main71480-05130-B0i199410-199412
***,XL LUXURY PACKAGE;SEAT=TYPE A OR TYPE B-*104,SHADOW GRAY,TRIM1#
main71480-05130-B0i199407-199409
***,GL FABRIC;SEAT=TYPE A OR TYPE B-*104,SHADOW GRAY,TRIM1#
main71480-05130-J0i199407-199409
***,GL FABRIC;SEAT=TYPE A OR TYPE B-*104,DK. BLUE,TRIM8#
main71480-05130-J0i199405-199412
***,SEAT=TYPE A OR TYPE B-*104,DK. BLUE,TRIM8#
main71480-05130-J0i199410-199412
***,XL LUXURY PACKAGE;SEAT=TYPE A OR TYPE B-*104,DK. BLUE,TRIM8#
main71480-05140-B0i199505-199601
***,W(VERTICAL SEAT);SEAT=TYPE A-*104,SHADOW GRAY,TRIM1#
main71480-05140-B0i199505-199601
***,SEAT=TYPE A-*104,SHADOW GRAY,TRIM1#
main71480-05140-J0i199505-199601
***,SEAT=TYPE A-*104,DK. BLUE,TRIM8#
main71480-05140-J0i199505-199601
***,W(VERTICAL SEAT);SEAT=TYPE A-*104,DK. BLUE,TRIM8#
main71480-05150-B1i199506-199601
***,SEAT=TYPE A OR TYPE B-*104;W(GL FABRIC-*99),SHADOW GRAY,TRIM1#
main71480-05150-B1i199505-199601
***,SEAT=TYPE A OR TYPE B-*104,SHADOW GRAY,TRIM1#
main71480-05150-B1i199505-199601
***,XL LUXURY PACKAGE;SEAT=TYPE A OR TYPE B-*104,SHADOW GRAY,TRIM1#
main71480-05150-J1i199506-199601
***,SEAT=TYPE A OR TYPE B-*104;W(GL FABRIC-*99),DK. BLUE,TRIM8#
main71480-05150-J1i199505-199601
***,SEAT=TYPE A OR TYPE B-*104,DK. BLUE,TRIM8#
main71480-05150-J1i199505-199601
***,XL LUXURY PACKAGE;SEAT=TYPE A OR TYPE B-*104,DK. BLUE,TRIM8#
main71480-05160-B0i199505-199601
***,SEAT=TYPE C-*104;W(SPORTS SEAT),SHADOW GRAY,TRIM1#
main71480-05170-B0i199501-199601
***,EX FABRIC;SEAT=TYPE E-*104,SHADOW GRAY,TRIM1#
main71480-05190-B0i199601-199710
***,SEAT=TYPE A-*104,SHADOW GRAY,TRIM1#
main71480-05190-B0i199611-199710
***,W(VERTICAL ADJUSTER & SEAT HEATER);SEAT=TYPE A-*104,SHADOW GRAY,TRIM1#
main71480-05190-J0i199601-199710
***,SEAT=TYPE A-*104,DK. BLUE,TRIM8#
main71480-05200-B0i199601-199710
***,SEAT=TYPE B-*104,SHADOW GRAY,TRIM1#
main71480-05200-J0i199601-199710
***,SEAT=TYPE B-*104,DK. BLUE,TRIM8#
main71480-05210-B2i199611-199710
***,W(VERTICAL ADJUSTER & SEAT HEATER);SEAT=TYPE A-*104,SHADOW GRAY,TRIM1#
main71480-05210-B2i199601-199710
***,SEAT=TYPE A-*104,SHADOW GRAY,TRIM1#
main71480-05210-J2i199601-199710
***,SEAT=TYPE A-*104,DK. BLUE,TRIM8#
main71480-05220-B2i199601-199710
***,SEAT=TYPE B-*104,SHADOW GRAY,TRIM1#
main71480-05220-J2i199601-199710
***,SEAT=TYPE B-*104,DK. BLUE,TRIM8#
main71480-05230-B0i199506-199601
***,EX FABRIC;SEAT=TYPE E-*104,SHADOW GRAY,TRIM1#
main71480-05240-B0i199611-199710
SEAT=TYPE D-*104;'97 SPRING CAMPAIGN OR '97 AUTUMN CAMPAIGN & W(VERTICAL ADJUSTER),SHADOW GRAY,TRIM1#
main71480-05250-B0i199611-199710
SEAT=TYPE D-*104;'97 SPRING CAMPAIGN OR '97 AUTUMN CAMPAIGN & W(VERTICAL ADJUSTER),SHADOW GRAY,TRIM1#
main71480-05320-B0i199705-199710
'97 AUTUMN CAMPAIGN FABRIC & W(VERTICAL ADJUSTER);SEAT=TYPE E-*104,SHADOW GRAY,TRIM1#
main71480-05320-B0i199705-199710
'97 AUTUMN CAMPAIGN FABRIC;SEAT=TYPE E-*104,SHADOW GRAY,TRIM1#
main71480-05330-B0i199705-199710
'97 AUTUMN CAMPAIGN FABRIC & W(VERTICAL ADJUSTER);SEAT=TYPE E-*104,SHADOW GRAY,TRIM1#
main71480-05330-B0i199705-199710
'97 AUTUMN CAMPAIGN FABRIC;SEAT=TYPE E-*104,SHADOW GRAY,TRIM1#
71490SBACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)
main71490-05010-C0i199212-199405
***,SEAT=TYPE A-*104,BLACK,TRIM2#
main71490-05010-J0i199212-199405
***,SEAT=TYPE A-*104,DK. BLUE,TRIM8#
main71490-05020-C0i199401-199405
***,GL FABRIC;SEAT=TYPE B-*104,BLACK,TRIM2#
main71490-05020-C0i199212-199405
***,SEAT=TYPE B-*104,BLACK,TRIM2#
main71490-05020-J0i199401-199405
***,GL FABRIC;SEAT=TYPE B-*104,DK. BLUE,TRIM8#
main71490-05020-J0i199212-199405
***,SEAT=TYPE B-*104,DK. BLUE,TRIM8#
main71490-05030-B0i199405-199601
***,SEAT=TYPE C-*104;W(SPORTS SEAT),BLACK,TRIM1#
main71490-05030-C0i199212-199405
***,SEAT=TYPE C-*104;W(SPORTS SEAT),BLACK,TRIM2#
main71490-05031-B0i199412-199601
***,SEAT=TYPE C-*104;W(SPORTS SEAT),SHADOW GRAY,TRIM1#
sub71490-05031
main71490-05031-B1i199605-199710
***,SEAT=TYPE C-*104;SPORTS SEAT & W(VERTICAL ADJUSTER)-*99,GRAY,TRIM1#
sub71490-05031
main71490-05040-C0i199312-199405
***,SEAT=TYPE A-*104,BLACK,TRIM2#
main71490-05040-J0i199312-199405
***,SEAT=TYPE A-*104,DK. BLUE,TRIM8#
main71490-05050-C0i199401-199405
***,GL FABRIC;SEAT=TYPE B-*104,BLACK,TRIM2#
main71490-05050-C0i199312-199405
***,SEAT=TYPE B-*104,BLACK,TRIM2#
main71490-05050-J0i199312-199405
***,SEAT=TYPE B-*104,DK. BLUE,TRIM8#
main71490-05050-J0i199401-199405
***,GL FABRIC;SEAT=TYPE B-*104,DK. BLUE,TRIM8#
main71490-05060-B0i199405-199601
***,SEAT=TYPE C-*104;W(SPORTS SEAT),BLACK,TRIM1#
main71490-05060-C0i199312-199405
***,SEAT=TYPE C-*104;W(SPORTS SEAT),BLACK,TRIM2#
main71490-05061-B0i199412-199601
***,SEAT=TYPE C-*104;W(SPORTS SEAT),SHADOW GRAY,TRIM1#
sub71490-05061
main71490-05061-B1i199605-199710
***,SEAT=TYPE C-*104;SPORTS SEAT & W(VERTICAL ADJUSTER)-*99,GRAY,TRIM1#
sub71490-05061
main71490-05070-B0i199405-199412
***,SEAT=TYPE A-*104,SHADOW GRAY,TRIM1#
main71490-05070-B0i199407-199412
***,W(VERTICAL SEAT);SEAT=TYPE A-*104,SHADOW GRAY,TRIM1#
main71490-05070-J0i199405-199412
***,SEAT=TYPE A-*104,DK. BLUE,TRIM8#
main71490-05070-J0i199407-199409
***,W(VERTICAL SEAT);SEAT=TYPE A-*104,DK. BLUE,TRIM8#
main71490-05070-J0i199409-199412
***,W(VERTICAL SEAT);SEAT=TYPE B-*104,DK. BLUE,TRIM8#
main71490-05071-B0i199505-199601
***,XL LUXURY PACKAGE;SEAT=TYPE A-*104,SHADOW GRAY,TRIM1#
main71490-05071-B0i199412-199601
***,W(VERTICAL SEAT);SEAT=TYPE A-*104,SHADOW GRAY,TRIM1#
main71490-05071-B0i199412-199601
***,SEAT=TYPE A-*104,SHADOW GRAY,TRIM1#
main71490-05071-J0i199412-199601
***,SEAT=TYPE A-*104,DK. BLUE,TRIM8#
main71490-05071-J0i199412-199601
***,W(VERTICAL SEAT);SEAT=TYPE A-*104,DK. BLUE,TRIM8#
main71490-05071-J0i199505-199601
***,XL LUXURY PACKAGE;SEAT=TYPE A-*104,DK. BLUE,TRIM8#
main71490-05080-B0i199407-199409
***,GL FABRIC;SEAT=TYPE A OR TYPE B-*104,SHADOW GRAY,TRIM1#
main71490-05080-B0i199410-199412
***,XL LUXURY PACKAGE;SEAT=TYPE A OR TYPE B-*104,SHADOW GRAY,TRIM1#
main71490-05080-B0i199405-199412
***,SEAT=TYPE A OR TYPE B-*104,SHADOW GRAY,TRIM1#
main71490-05080-J0i199405-199412
***,SEAT=TYPE A OR TYPE B-*104,DK. BLUE,TRIM8#
main71490-05080-J0i199407-199409
***,GL FABRIC;SEAT=TYPE A OR TYPE B-*104,DK. BLUE,TRIM8#
main71490-05080-J0i199410-199412
***,XL LUXURY PACKAGE;SEAT=TYPE A OR TYPE B-*104,DK. BLUE,TRIM8#
main71490-05081-B3i199412-199601
***,XL LUXURY PACKAGE;SEAT=TYPE A OR TYPE B-*104,SHADOW GRAY,TRIM1#
main71490-05081-B3i199412-199601
***,SEAT=TYPE A OR TYPE B-*104,SHADOW GRAY,TRIM1#
main71490-05081-J2i199412-199601
***,XL LUXURY PACKAGE;SEAT=TYPE A OR TYPE B-*104,DK. BLUE,TRIM8#
main71490-05081-J2i199412-199601
***,SEAT=TYPE A OR TYPE B-*104,DK. BLUE,TRIM8#
main71490-05090-B0i199407-199412
***,W(VERTICAL SEAT);SEAT=TYPE A-*104,SHADOW GRAY,TRIM1#
main71490-05090-B0i199405-199412
***,SEAT=TYPE A-*104,SHADOW GRAY,TRIM1#
main71490-05090-J0i199407-199412
***,W(VERTICAL SEAT);SEAT=TYPE B-*104,DK. BLUE,TRIM8#
main71490-05090-J0i199405-199412
***,SEAT=TYPE A-*104,DK. BLUE,TRIM8#
main71490-05091-B0i199412-199601
***,W(VERTICAL SEAT);SEAT=TYPE A-*104,SHADOW GRAY,TRIM1#
main71490-05091-B0i199505-199601
***,XL LUXURY PACKAGE;SEAT=TYPE A-*104,SHADOW GRAY,TRIM1#
main71490-05091-B0i199412-199601
***,SEAT=TYPE A-*104,SHADOW GRAY,TRIM1#
main71490-05091-J0i199412-199601
***,SEAT=TYPE A-*104,DK. BLUE,TRIM8#
main71490-05091-J0i199412-199601
***,W(VERTICAL SEAT);SEAT=TYPE A-*104,DK. BLUE,TRIM8#
main71490-05091-J0i199505-199601
***,XL LUXURY PACKAGE;SEAT=TYPE A-*104,DK. BLUE,TRIM8#
main71490-05100-B0i199405-199412
***,SEAT=TYPE A OR TYPE B-*104,SHADOW GRAY,TRIM1#
main71490-05100-B0i199407-199409
***,GL FABRIC;SEAT=TYPE A OR TYPE B-*104,SHADOW GRAY,TRIM1#
main71490-05100-B0i199410-199412
***,XL LUXURY PACKAGE;SEAT=TYPE A OR TYPE B-*104,SHADOW GRAY,TRIM1#
main71490-05100-J0i199405-199412
***,SEAT=TYPE A OR TYPE B-*104,DK. BLUE,TRIM8#
main71490-05100-J0i199410-199412
***,XL LUXURY PACKAGE;SEAT=TYPE A OR TYPE B-*104,DK. BLUE,TRIM8#
main71490-05100-J0i199407-199409
***,GL FABRIC;SEAT=TYPE A OR TYPE B-*104,DK. BLUE,TRIM8#
main71490-05101-B0i199412-199601
***,SEAT=TYPE A OR TYPE B-*104,SHADOW GRAY
main71490-05101-B0i199412
***,XL LUXURY PACKAGE-*99;SEAT=TYPE A OR TYPE B-*104,SHADOW GRAY
main71490-05101-B3i199412-199601
***,XL LUXURY PACKAGE;SEAT=TYPE A OR TYPE B-*104,SHADOW GRAY,TRIM1#
main71490-05101-B3i199412-199601
***,SEAT=TYPE A OR TYPE B-*104,SHADOW GRAY,TRIM1#
main71490-05101-J2i199412-199601
***,SEAT=TYPE A OR TYPE B-*104,DK. BLUE,TRIM8#
main71490-05101-J2i199412-199601
***,XL LUXURY PACKAGE;SEAT=TYPE A OR TYPE B-*104,DK. BLUE,TRIM8#
main71490-05110-B0i199505-199601
***,W(VERTICAL SEAT);SEAT=TYPE A-*104,SHADOW GRAY,TRIM1#
main71490-05110-B0i199505-199601
***,SEAT=TYPE A-*104,SHADOW GRAY,TRIM1#
main71490-05110-J0i199505-199601
***,W(VERTICAL SEAT);SEAT=TYPE A-*104,DK. BLUE,TRIM8#
main71490-05110-J0i199505-199601
***,SEAT=TYPE A-*104,DK. BLUE,TRIM8#
main71490-05120-B1i199505-199601
***,SEAT=TYPE B-*104,SHADOW GRAY,TRIM1#
main71490-05120-B1i199505-199601
***,XL LUXURY PACKAGE;SEAT=TYPE B-*104,SHADOW GRAY,TRIM1#
main71490-05120-B1i199506-199601
***,GL FABRIC;SEAT=TYPE B-*104,SHADOW GRAY,TRIM1#
main71490-05120-J1i199506-199601
***,GL FABRIC;SEAT=TYPE B-*104,DK. BLUE,TRIM8#
main71490-05120-J1i199505-199601
***,SEAT=TYPE B-*104,DK. BLUE,TRIM8#
main71490-05120-J1i199505-199601
***,XL LUXURY PACKAGE;SEAT=TYPE B-*104,DK. BLUE,TRIM8#
main71490-05130-B0i199505-199601
***,SEAT=TYPE C-*104;W(SPORTS SEAT),SHADOW GRAY,TRIM1#
main71490-05140-B0i199501-199601
***,EX FABRIC;SEAT=TYPE E-*104,SHADOW GRAY,TRIM1#
main71490-05150-B0i199501-199601
***,EX FABRIC;SEAT=TYPE E-*104,SHADOW GRAY,TRIM1#
main71490-05160-B0i199611-199710
***,W(VERTICAL ADJUSTER & SEAT HEATER);SEAT=TYPE A-*104,SHADOW GRAY,TRIM1#
main71490-05160-B0i199601-199710
***,SEAT=TYPE A-*104,SHADOW GRAY,TRIM1#
main71490-05160-J0i199601-199710
***,SEAT=TYPE A-*104,DK. BLUE,TRIM8#
main71490-05170-B0i199601-199710
***,SEAT=TYPE B-*104,SHADOW GRAY,TRIM1#
main71490-05170-J0i199601-199710
***,SEAT=TYPE B-*104,DK. BLUE,TRIM8#
main71490-05180-B2i199601-199710
***,SEAT=TYPE A-*104,SHADOW GRAY,TRIM1#
main71490-05180-B2i199611-199710
***,W(VERTICAL ADJUSTER & SEAT HEATER);SEAT=TYPE A-*104,SHADOW GRAY,TRIM1#
main71490-05180-J2i199601-199710
***,SEAT=TYPE A-*104,DK. BLUE,TRIM8#
main71490-05190-B2i199601-199710
***,SEAT=TYPE B-*104,SHADOW GRAY,TRIM1#
main71490-05190-J2i199601-199710
***,SEAT=TYPE B-*104,DK. BLUE,TRIM8#
main71490-05200-B0i199506-199601
***,EX FABRIC;SEAT=TYPE E-*104,SHADOW GRAY,TRIM1#
main71490-05210-B0i199611-199710
SEAT=TYPE D-*104;'97 SPRING CAMPAIGN OR '97 AUTUMN CAMPAIGN & W(VERTICAL ADJUSTER),SHADOW GRAY,TRIM1#
main71490-05220-B0i199611-199710
SEAT=TYPE D-*104;'97 SPRING CAMPAIGN OR '97 AUTUMN CAMPAIGN & W(VERTICAL ADJUSTER),SHADOW GRAY,TRIM1#
main71490-05290-B0i199705-199710
'97 AUTUMN CAMPAIGN FABRIC;SEAT=TYPE E-*104,SHADOW GRAY,TRIM1#
main71490-05290-B0i199705-199710
'97 AUTUMN CAMPAIGN FABRIC & W(VERTICAL ADJUSTER);SEAT=TYPE E-*104,SHADOW GRAY,TRIM1#
main71490-05300-B0i199705-199710
'97 AUTUMN CAMPAIGN FABRIC & W(VERTICAL ADJUSTER);SEAT=TYPE E-*104,SHADOW GRAY,TRIM1#
main71490-05300-B0i199705-199710
'97 AUTUMN CAMPAIGN FABRIC;SEAT=TYPE E-*104,SHADOW GRAY,TRIM1#
71540ABACK ASSY, REAR SIDE SEAT, RH
main71540-05010-C0i199212-199405
SEAT=TYPE A OR TYPE D-*104,BLACK,TRIM2#
main71540-05010-J0i199212-199405
SEAT=TYPE A OR TYPE D-*104,DK. BLUE,TRIM8#
main71540-05020-B2i199405-199710
SEAT=TYPE C-*104;W(SPORTS SEAT),DK. GRAY,TRIM1#
main71540-05020-B2i199605-199710
SEAT=TYPE C-*104;SPORTS SEAT & W(VERTICAL ADJUSTER)-*99,DK. GRAY,TRIM1#
main71540-05020-B2i199405-199412
SEAT=TYPE C-*104,DK. GRAY,TRIM1#
main71540-05020-B2i199501-199601
SEAT=TYPE C-*104;W(SPORTS SEAT) OR EX FABRIC,DK. GRAY,TRIM1#
main71540-05020-B3i199407-199409
GL FABRIC;SEAT=TYPE B-*104,SHADOW GRAY,TRIM1#
main71540-05020-B3i199506-199601
EX FABRIC;SEAT=TYPE E-*104,SHADOW GRAY,TRIM1#
main71540-05020-B3i199405-199412
SEAT=TYPE B-*104,SHADOW GRAY,TRIM1#
main71540-05020-B3i199410-199412
XL LUXURY PACKAGE;SEAT=TYPE B-*104,SHADOW GRAY,TRIM1#
main71540-05020-B3i199501-199601
SEAT=TYPE C-*104;EX FABRIC,SHADOW GRAY,TRIM1#
main71540-05020-C0i199212-199405
SEAT=TYPE B-*104,GRAY,TRIM2#
main71540-05020-C0i199401-199405
GL FABRIC;SEAT=TYPE B-*104,BLACK,TRIM2#
main71540-05020-C1i199212-199405
SEAT=TYPE C-*104;W(SPORTS SEAT),BLACK,TRIM2#
main71540-05020-J0i199212-199405
SEAT=TYPE B-*104,DK. BLUE,TRIM8#
main71540-05020-J1i199407-199409
GL FABRIC;SEAT=TYPE B-*104,DK. BLUE,TRIM8#
main71540-05020-J1i199405-199412
SEAT=TYPE B-*104,DK. BLUE,TRIM8#
main71540-05020-J1i199410-199412
XL LUXURY PACKAGE;SEAT=TYPE B-*104,DK. BLUE,TRIM8#
main71540-05021-B5i199412-199601
XL LUXURY PACKAGE;SEAT=TYPE B-*104,GRAY,TRIM1#
main71540-05021-B5i199412-199601
SEAT=TYPE B-*104,GRAY,TRIM1#
main71540-05021-B5i199506-199601
GL FABRIC;SEAT=TYPE B-*104,GRAY,TRIM1#
main71540-05021-J2i199412-199601
XL LUXURY PACKAGE;SEAT=TYPE B-*104,BLUE,TRIM8#
main71540-05021-J2i199412-199601
SEAT=TYPE B-*104,BLUE,TRIM8#
main71540-05021-J2i199506-199601
GL FABRIC;SEAT=TYPE B-*104,BLUE,TRIM1#
main71540-05030-B5i199407-199601
W(VERTICAL SEAT);SEAT=TYPE A-*104,SHADOW GRAY,TRIM1#
main71540-05030-B5i199505-199601
XL LUXURY PACKAGE;SEAT=TYPE A-*104,SHADOW GRAY,TRIM1#
main71540-05030-B5i199405-199601
SEAT=TYPE A-*104,SHADOW GRAY,TRIM1#
main71540-05030-B7i199601-199710
SEAT=TYPE A-*104,SHADOW GRAY,TRIM1#
main71540-05030-B7i199611-199710
W(VERTICAL ADJUSTER & SEAT HEATER);SEAT=TYPE A-*104,SHADOW GRAY,TRIM1#
main71540-05030-J6i199407-199601
W(VERTICAL SEAT);SEAT=TYPE A-*104,DK. BLUE,TRIM8#
main71540-05030-J6i199505-199601
XL LUXURY PACKAGE;SEAT=TYPE A-*104,DK. BLUE,TRIM8#
main71540-05030-J6i199405-199601
SEAT=TYPE A-*104,DK. BLUE,TRIM8#
main71540-05030-J7i199601-199710
SEAT=TYPE A-*104,DK. BLUE,TRIM8#
main71540-05040-B0i199611-199710
SEAT=TYPE B-*104;'97 SPRING CAMPAIGN OR '97 AUTUMN CAMPAIGN & W(VERTICAL ADJUSTER),SHADOW GRAY,TRIM1#
main71540-05040-B0i199601-199710
SEAT=TYPE B-*104,SHADOW GRAY,TRIM1#
main71540-05040-J0i199601-199710
SEAT=TYPE B-*104,DK. BLUE,TRIM8#
main71540-05090-B0i199705-199710
'97 AUTUMN CAMPAIGN FABRIC & W(VERTICAL ADJUSTER);SEAT=TYPE E-*104,SHADOW GRAY,TRIM1#
main71540-05090-B0i199705-199710
'97 AUTUMN CAMPAIGN FABRIC;SEAT=TYPE E-*104,SHADOW GRAY,TRIM1#
71550ABACK ASSY, REAR SIDE SEAT, LH
main71550-05010-C0i199212-199405
SEAT=TYPE A OR TYPE D-*104,BLACK,TRIM2#
main71550-05010-J0i199212-199405
SEAT=TYPE A OR TYPE D-*104,DK. BLUE,TRIM8#
main71550-05020-B2i199605-199710
SEAT=TYPE C-*104;SPORTS SEAT & W(VERTICAL ADJUSTER)-*99,DK. GRAY,TRIM1#
main71550-05020-B2i199405-199601
SEAT=TYPE C-*104;W(SPORTS SEAT),DK. GRAY,TRIM1#
main71550-05020-B3i199501-199601
EX FABRIC;SEAT=TYPE E-*104,SHADOW GRAY,TRIM1#
main71550-05020-B3i199407-199409
GL FABRIC;SEAT=TYPE B-*104,SHADOW GRAY,TRIM1#
main71550-05020-B3i199405-199412
SEAT=TYPE B-*104,SHADOW GRAY,TRIM1#
main71550-05020-B3i199410-199412
XL LUXURY PACKAGE;SEAT=TYPE B-*104,SHADOW GRAY,TRIM1#
main71550-05020-C0i199401-199405
GL FABRIC;SEAT=TYPE B-*104,GRAY,TRIM2#
main71550-05020-C0i199212-199405
SEAT=TYPE B-*104,GRAY,TRIM2#
main71550-05020-C1i199212-199405
SEAT=TYPE C-*104;W(SPORTS SEAT),BLACK,TRIM2#
main71550-05020-J0i199212-199405
SEAT=TYPE B-*104,DK. BLUE,TRIM8#
main71550-05020-J1i199410-199412
XL LUXURY PACKAGE;SEAT=TYPE B-*104,DK. BLUE,TRIM8#
main71550-05020-J1i199407-199409
GL FABRIC;SEAT=TYPE B-*104,DK. BLUE,TRIM1#
main71550-05020-J1i199412-199601
W(SPORTS SEAT);SEAT=TYPE B-*104,DK. BLUE
main71550-05020-J1i199405-199412
SEAT=TYPE B-*104,DK. BLUE,TRIM8#
main71550-05021-B5i199412-199601
SEAT=TYPE B-*104,GRAY,TRIM1#
main71550-05021-B5i199412-199601
XL LUXURY PACKAGE;SEAT=TYPE B-*104,GRAY,TRIM1#
main71550-05021-B5i199506-199601
GL FABRIC;SEAT=TYPE B-*104,GRAY,TRIM1#
main71550-05021-J2i199412-199601
XL LUXURY PACKAGE;SEAT=TYPE B-*104,BLUE,TRIM8#
main71550-05021-J2i199412-199601
SEAT=TYPE B-*104,BLUE,TRIM8#
main71550-05021-J2i199506-199601
GL FABRIC;SEAT=TYPE B-*104,BLUE,TRIM8#
main71550-05030-B5i199405-199601
SEAT=TYPE A-*104,SHADOW GRAY,TRIM1#
main71550-05030-B5i199407-199601
W(VERTICAL SEAT);SEAT=TYPE A-*104,SHADOW GRAY,TRIM1#
main71550-05030-B5i199505-199601
XL LUXURY PACKAGE;SEAT=TYPE E-*104,SHADOW GRAY,TRIM1#
main71550-05030-B7i199601-199710
SEAT=TYPE A-*104,SHADOW GRAY,TRIM1#
main71550-05030-B7i199611-199710
W(VERTICAL ADJUSTER & SEAT HEATER);SEAT=TYPE A-*104,SHADOW GRAY,TRIM1#
main71550-05030-J6i199505-199601
XL LUXURY PACKAGE;SEAT=TYPE A-*104,DK. BLUE,TRIM8#
main71550-05030-J6i199407-199601
W(VERTICAL SEAT);SEAT=TYPE A-*104,DK. BLUE,TRIM8#
main71550-05030-J6i199405-199601
SEAT=TYPE A-*104,DK. BLUE,TRIM8#
main71550-05030-J7i199601-199710
SEAT=TYPE A-*104,DK. BLUE,TRIM8#
main71550-05040-B0i199611-199710
SEAT=TYPE B-*104;'97 SPRING CAMPAIGN OR '97 AUTUMN CAMPAIGN & W(VERTICAL ADJUSTER),SHADOW GRAY,TRIM1#
main71550-05040-B0i199601-199710
SEAT=TYPE B-*104,SHADOW GRAY,TRIM1#
main71550-05040-J0i199601-199710
SEAT=TYPE B-*104,DK. BLUE,TRIM8#
main71550-05090-B0i199705-199710
'97 AUTUMN CAMPAIGN FABRIC;SEAT=TYPE E-*104,SHADOW GRAY,TRIM1#
main71550-05090-B0i199705-199710
'97 AUTUMN CAMPAIGN FABRIC & W(VERTICAL ADJUSTER);SEAT=TYPE E-*104,SHADOW GRAY,TRIM1#
71611PAD, REAR SEAT CUSHION
main71503-05010i199212-199710
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
main71651-05010i199212-199710
71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71652-05010i199611-199710
'97 SPRING CAMPAIGN OR '97 AUTUMN CAMPAIGN & W(VERTICAL ADJUSTER)
main71652-05010i199401-199601
GL FABRIC
main71652-05010i199410-199601
XL LUXURY PACKAGE
main71652-05010i199501-199601
EX FABRIC
main71652-05010i199506-199601
W(VERTICAL SEAT)
main71652-05010i199506-199601
XL LUXURY PACKAGE & EX FABRIC;XL LUXURY PACKAGE & EX FABRIC-*99
main71652-05010i199212-199710
main71652-05020i199505-199601
XL LUXURY PACKAGE
main71652-05020i199407-199710
W(VERTICAL SEAT)
main71652-05020i199212-199710
71880ACARPET ASSY, REAR SEATBACK BOARD, RH
main71880-05010-C2i199212-199405
BLACK,TRIM2#,8#
main71880-05011-C3i199405-199601
BLACK,TRIM1#,8#
main71880-05011-C4i199601-199710
BLACK,TRIM1#,8#
71880BCLIP(FOR REAR SEATBACK CARPET)
main90467-09066-22i199212-199405
BLACK,TRIM2#,8#
sub90467-09066
main90467-09066-22i199405-199710
BLACK,TRIM1#,8#
sub90467-09066
71890ACARPET ASSY, REAR SEATBACK BOARD, LH
main71890-05010-C2i199212-199405
BLACK,TRIM2#,8#
main71890-05011-C3i199405-199601
BLACK,TRIM1#,8#
main71890-05011-C4i199601-199710
BLACK,TRIM1#,8#
71931ASUPPORT, REAR SEAT HEADREST
main71930-05010-B0i199405-199710
W(LOCK),SHADOW GRAY,TRIM1#
sub71930-12070
main71930-05010-C0i199212-199405
W(LOCK),BLACK,TRIM2#
sub71930-12070
main71930-05010-J0i199212-199710
W(LOCK),DK. BLUE,TRIM8#
sub71930-12070
main71931-05010-B0i199405-199710
W/O(LOCK),SHADOW GRAY,TRIM1#
main71931-05010-C0i199212-199405
W/O(LOCK),BLACK,TRIM2#
main71931-05010-J0i199212-199710
W/O(LOCK),DK. BLUE,TRIM8#
71940AHEADREST ASSY, REAR SEAT
main71940-05010-B0i199212-199405
SEAT=TYPE A OR TYPE D-*104,GRAY,TRIM2#
main71940-05010-J0i199212-199405
SEAT=TYPE A OR TYPE D-*104,DK. BLUE,TRIM8#
main71940-05020-B1i199401-199405
GL FABRIC;SEAT=TYPE B-*104,GRAY,TRIM2#
main71940-05020-B1i199212-199405
SEAT=TYPE B-*104,GRAY,TRIM2#
main71940-05020-B2i199407-199409
GL FABRIC;SEAT=TYPE A OR TYPE B-*104,SHADOW GRAY,TRIM1#
main71940-05020-B2i199410-199412
XL LUXURY PACKAGE;SEAT=TYPE A OR TYPE B-*104,SHADOW GRAY,TRIM1#
main71940-05020-B2i199405-199412
SEAT=TYPE A OR TYPE B-*104,SHADOW GRAY,TRIM1#
main71940-05020-B3i199405-199412
SEAT=TYPE C-*104,DK. GRAY,TRIM1#
main71940-05020-C1i199212-199405
SEAT=TYPE C-*104,BLACK,TRIM2#
main71940-05020-J1i199401-199405
GL FABRIC;SEAT=TYPE B-*104,DK. BLUE,TRIM8#
main71940-05020-J1i199212-199405
SEAT=TYPE B-*104,DK. BLUE,TRIM8#
main71940-05020-J2i199407-199409
GL FABRIC;SEAT=TYPE A OR TYPE B-*104,DK. BLUE,TRIM8#
main71940-05020-J2i199405-199412
SEAT=TYPE A OR TYPE B-*104,DK. BLUE,TRIM8#
main71940-05020-J2i199410-199412
XL LUXURY PACKAGE;SEAT=TYPE A OR TYPE B-*104,DK. BLUE,TRIM8#
main71940-05022-B2i199501-199601
SEAT=TYPE E-*104,GRAY,TRIM1#
main71940-05022-B2i199501-199601
EX FABRIC;SEAT=TYPE E-*104,GRAY,TRIM1#
main71940-05022-B3i199605-199710
SEAT=TYPE C-*104;SPORTS SEAT & W(VERTICAL ADJUSTER)-*99,DK. GRAY,TRIM1#
main71940-05022-B3i199412-199601
SEAT=TYPE C-*104;W(SPORTS SEAT),DK. GRAY,TRIM1#
main71940-05022-B5i199412-199601
XL LUXURY PACKAGE;SEAT=TYPE B-*104,SHADOW GRAY,TRIM1#
main71940-05022-B5i199506-199601
GL FABRIC;SEAT=TYPE B-*104,SHADOW GRAY,TRIM1#
main71940-05022-B5i199412-199601
SEAT=TYPE B-*104,SHADOW GRAY,TRIM1#
main71940-05022-J4i199501-199601
EX FABRIC;SEAT=TYPE B-*104,DK. BLUE,TRIM8#
main71940-05022-J4i199501-199601
EX FABRIC;SEAT=TYPE E-*104,DK. BLUE,TRIM8#
main71940-05022-J4i199412-199601
SEAT=TYPE B-*104,DK. BLUE,TRIM8#
main71940-05022-J4i199501-199601
XL LUXURY PACKAGE & EX FABRIC;SEAT=TYPE B-*104,DK. BLUE,TRIM8#
main71940-05022-J4i199412-199506
XL LUXURY PACKAGE;SEAT=TYPE B-*104,DK. BLUE,TRIM8#
main71940-05022-J4i199506-199601
GL FABRIC OR EX FABRIC;SEAT=TYPE B-*104,DK. BLUE,TRIM8#
main71940-05030-B0i199611-199710
SEAT=TYPE B OR TYPE D-*104;'97 SPRING CAMPAIGN OR '97 AUTUMN CAMPAIGN & W(VERTICALADJUSTER),SHADOW GRAY,TRIM1#
main71940-05030-B0i199601-199710
SEAT=TYPE B OR TYPE D-*104,SHADOW GRAY,TRIM1#
main71940-05030-J0i199601-199710
SEAT=TYPE B OR TYPE D-*104,DK. BLUE,TRIM8#
main71940-05040-B0i199407-199412
W(VERTICAL SEAT);SEAT=TYPE A-*104,SHADOW GRAY,TRIM1#
main71940-05040-B0i199405-199412
SEAT=TYPE A-*104,SHADOW GRAY,TRIM1#
main71940-05040-J0i199407-199412
W(VERTICAL SEAT);SEAT=TYPE A-*104,DK. BLUE,TRIM8#
main71940-05040-J0i199405-199412
SEAT=TYPE A-*104,DK. BLUE,TRIM8#
main71940-05041-B3i199412-199601
SEAT=TYPE A-*104,SHADOW GRAY,TRIM1#
main71940-05041-B3i199412-199506
W(VERTICAL SEAT);SEAT=TYPE A-*104,SHADOW GRAY,TRIM1#
main71940-05041-B3i199506-199601
SEAT=TYPE C-*104;W(VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71940-05041-B5i199601-199710
SEAT=TYPE A-*104,SHADOW GRAY,TRIM1#
main71940-05041-B5i199611-199710
W(VERTICAL ADJUSTER & SEAT HEATER);SEAT=TYPE A-*104,SHADOW GRAY,TRIM1#
main71940-05041-J3i199412-199506
W(VERTICAL SEAT);SEAT=TYPE A-*104,DK. BLUE,TRIM8#
main71940-05041-J3i199412-199601
SEAT=TYPE A-*104,DK. BLUE,TRIM8#
main71940-05041-J3i199506-199601
SEAT=TYPE C-*104;W(VERTICAL SEAT),DK. BLUE,TRIM8#
main71940-05041-J5i199601-199710
SEAT=TYPE A-*104,DK. BLUE,TRIM8#
main71940-05090-J0i199705-199710
'97 AUTUMN CAMPAIGN FABRIC & W(VERTICAL ADJUSTER);SEAT=TYPE E-*104,BLUE,TRIM1#
main71940-05090-J0i199705-199710
'97 AUTUMN CAMPAIGN FABRIC;SEAT=TYPE E-*104,BLUE,TRIM1#
72067LEVER SUB-ASSY, REAR BACK LOCK CONTROL, RH
main72067-20060i199212-199710
72068LEVER SUB-ASSY, REAR BACK LOCK CONTROL, LH
main72068-20060i199212-199710
72069CABLE SUB-ASSY, REAR SEATBACK LOCK CONTROL
main72069-20020i199212-199710
72601BSTRIKER SUB-ASSY, REAR SEATBACK LOCK
main72601-20080i199212-199710
72603LOCK SUB-ASSY, REAR SEATBACK, RH
main72603-20090i199212-199709
main72603-20170i199709-199710
main72630-20210i199709-199710
main72630-21010i199505-199709
72604LOCK SUB-ASSY, REAR SEATBACK, LH
main72604-20090i199212-199709
main72604-20170i199709-199710
main72640-20150i199709-199710
main72640-21010i199505-199709
72646AGROMMET, REAR SEATBACK STOP BUTTON
main72646-05010-B0i199405-199710
SHADOW GRAY,TRIM1#
main72646-05010-C0i199212-199405
BLACK,TRIM2#
main72646-05010-J0i199212-199710
DK. BLUE,TRIM8#
72646BGROMMET, REAR SEATBACK STOP BUTTON
main72646-05010-B0i199405-199710
SHADOW GRAY,TRIM1#
main72646-05010-C0i199212-199405
BLACK,TRIM2#
main72646-05010-J0i199212-199710
DK. BLUE,TRIM8#
72653ASNAP, REAR SEATBACK LOCK ROD
main69759-24010i199212-199710
RH
main69759-24020i199212-199710
LH
72656BBUTTON, REAR SEATBACK STOP RELEASE
main72661-05010-B0i199405-199710
SHADOW GRAY,TRIM1#
main72661-05010-C0i199212-199405
BLACK,TRIM2#
main72661-05010-J0i199212-199710
DK. BLUE,TRIM8#
72656CBUTTON, REAR SEATBACK STOP RELEASE
main72661-05010-B0i199405-199710
SHADOW GRAY,TRIM1#
main72661-05010-C0i199212-199405
BLACK,TRIM2#
main72661-05010-J0i199212-199710
DK. BLUE,TRIM8#
72679BEZEL, REAR SEATBACK LOCK CONTROL
main72679-20020-C0i199405-199710
BLACK,TRIM1#,8#
sub72679-20020
main72679-20020-C0i199212-199405
BLACK,TRIM2#,8#
sub72679-20020
72693HOOK, REAR SEAT CUSHION LOCK
main72693-20040i199212-199710
6777133030WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-33030
9008046007
main90080-46007
9010508102
main90105-08102
9011908160
main90119-08160
9046818071
main90468-18071
9151160608
main91511-60608
9151160814
main91511-60814
9151160818
main91511-60818
9151281020
main91512-81020
9152160814
main91521-60814
9162140608
main91621-40608
9165160816
main91651-60816
9165160818
main91651-60818
9353054010
main93530-54010

49 parts on this diagram · 6 diagrams in section

Toyota CARINA E (UKP) REAR SEAT & SEAT TRACK — Parts Diagram | EPC Data
