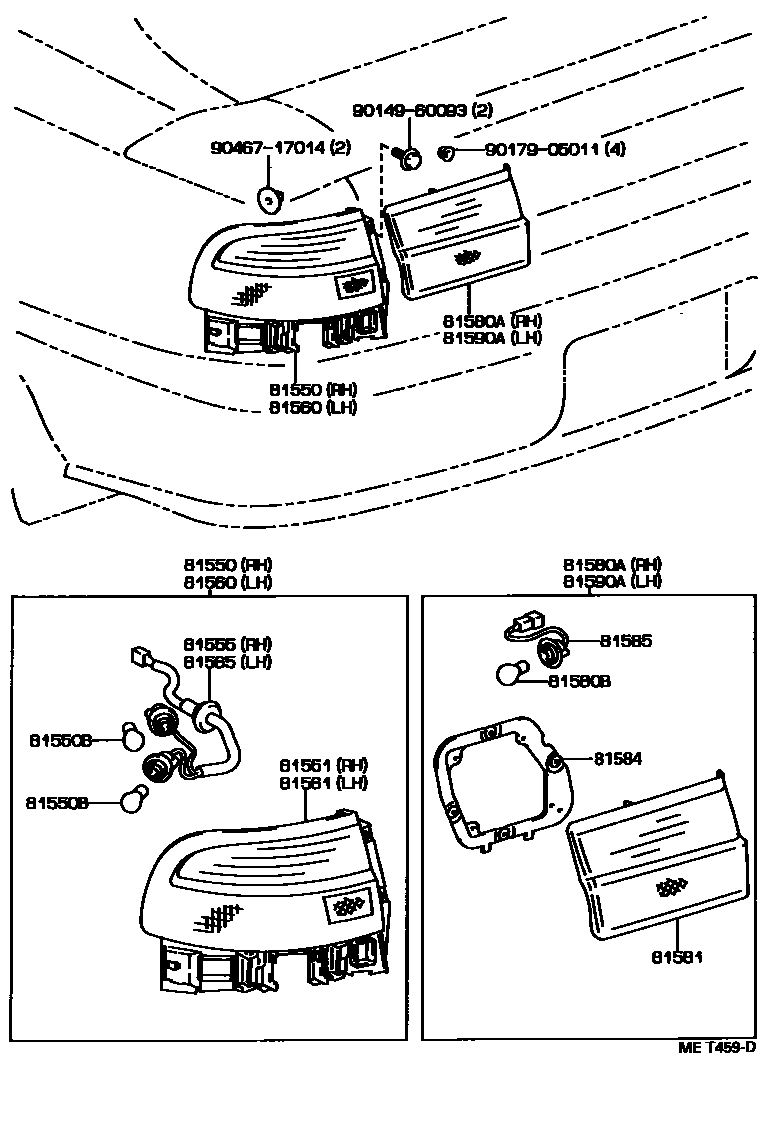

Toyota CARINA E (UKP) — REAR COMBINATION LAMP

0001 1 0002 1HONG KONG SPEC 0003 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-05010iAT190,ST191..UKP199308-199312

VALEO

sub81551-05010

sub81555-05010

sub90080-81046

sub99132-21210

main81550-05010iAT19#,CT190,ST191..UKP..SED199312-199601

sub81551-05010

sub81555-05010

sub90080-81046

sub99132-21210

main81550-05020iAT19#,CT190,ST191..UKP..LB199312-199601

sub81551-05020

sub81555-05020

sub90080-81046

sub99132-21210

main81550-05030iAT19#,CT190,ST191..UKP..SED199601-199710

sub81551-05030

sub81555-05030

sub90080-81046

sub99132-21210

main81550-05040iAT19#,CT190,ST191..UKP..LB199601-199710

sub81551-05040

sub81555-05040

sub90080-81046

sub99132-21210

main81550-21151iAT19#,CT190,ST191..UKP..WG199505-199710

main81550-2B270iAT190,ST191..UKP199308-199312

KOITO

sub81550-2B271

main81550-2B270iAT190,ST191..UKP199212-199308

sub81550-2B271

81550BBULB(FOR REAR COMBINATION LAMP)

main90080-81034iAT19#,CT190,ST191..UKP..(LB,SED)199601-199710

12V 21/5W

main90080-81034iAT19#,CT190,ST191..UKP..(LB,SED)199308-199601

12V 21/5W,VALEO

main90080-81046iAT19#,CT190,ST191..UKP..(LB,SED)199308-199601

12V 21W,VALEO

main90080-81046iAT19#,CT190,ST191..UKP..(LB,SED)199601-199710

12V 21W

main99132-11210iAT19#,CT190,ST191..UKP..SED199212-199601

12V 21W,KOITO

main99132-11210iAT19#,CT190,ST191..UKP..WG199212-199710

12V 21W

main99132-21210iAT19#,CT190,ST191..UKP..SED199212-199601

12V 21/5W,KOITO

main99132-21210iAT19#,CT190,ST191..UKP..WG199212-199710

12V 21/5W

81551LENS, REAR COMBINATION LAMP, RH

main81551-05010iAT19#,CT190,ST191..UKP..SED199308-199601

VALEO

main81551-05020iAT19#,CT190,ST191..UKP..LB199312-199601

main81551-05030iAT19#,CT190,ST191..UKP..SED199601-199710

main81551-05040iAT19#,CT190,ST191..UKP..LB199601-199710

main81551-21151iAT19#,CT190,ST191..UKP..WG199505-199710

main81551-2B270iAT190,ST191..UKP199212-199308

sub81551-2B271

main81551-2B270iAT19#,CT190,ST191..UKP..SED199308-199601

KOITO

sub81551-2B271

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-05010iAT19#,CT190,ST191..UKP..SED199308-199601

VALEO

main81555-05020iAT19#,CT190,ST191..UKP..LB199312-199601

main81555-05030iAT19#,CT190,ST191..UKP..SED199601-199710

main81555-05040iAT19#,CT190,ST191..UKP..LB199601-199710

main81555-21150iAT19#,CT190,ST191..UKP..WG199505-199710

sub81555-21130

main81555-2B260iAT190,ST191..UKP199212-199308

main81555-2B260iAT19#,CT190,ST191..UKP..SED199308-199601

KOITO

81560LAMP ASSY, REAR COMBINATION, LH

main81560-05010iAT19#,CT190,ST191..UKP..SED199312-199601

sub81561-05010

sub81555-05010

sub90080-81046

sub99132-21210

main81560-05010iAT190,ST191..UKP199308-199312

VALEO

sub81561-05010

sub81555-05010

sub90080-81046

sub99132-21210

main81560-05020iAT19#,CT190,ST191..UKP..LB199312-199601

sub81561-05020

sub81555-05020

sub90080-81046

sub99132-21210

main81560-05030iAT19#,CT190,ST191..UKP..SED199601-199710

sub81561-05030

sub81555-05030

sub90080-81046

sub99132-21210

main81560-05040iAT19#,CT190,ST191..UKP..LB199601-199710

sub81561-05040

sub81555-05040

sub90080-81046

sub99132-21210

main81560-21151iAT19#,CT190,ST191..UKP..WG199505-199710

main81560-2B210iAT190,ST191..UKP199308-199312

KOITO

sub81560-2B211

main81560-2B210iAT190,ST191..UKP199212-199308

sub81560-2B211

81561LENS, REAR COMBINATION LAMP, LH

main81561-05010iAT19#,CT190,ST191..UKP..SED199308-199601

VALEO

main81561-05020iAT19#,CT190,ST191..UKP..LB199312-199601

main81561-05030iAT19#,CT190,ST191..UKP..SED199601-199710

main81561-05040iAT19#,CT190,ST191..UKP..LB199601-199710

main81561-21151iAT19#,CT190,ST191..UKP..WG199505-199710

main81561-2B210iAT190,ST191..UKP199212-199308

sub81561-2B211

main81561-2B210iAT19#,CT190,ST191..UKP..SED199308-199601

KOITO

sub81561-2B211

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-05010iAT19#,CT190,ST191..UKP..SED199308-199601

VALEO

main81555-05020iAT19#,CT190,ST191..UKP..LB199312-199601

main81555-05030iAT19#,CT190,ST191..UKP..SED199601-199710

main81555-05040iAT19#,CT190,ST191..UKP..LB199601-199710

main81555-21150iAT19#,CT190,ST191..UKP..WG199505-199710

sub81555-21130

main81555-2B260iAT19#,CT190,ST191..UKP..SED199308-199601

KOITO

main81555-2B260iAT190,ST191..UKP199212-199308

81580ALAMP ASSY, REAR

main81580-05010iAT19#,CT190,ST191..UKP..SED199312-199601

sub81581-05010

sub81674-05010

sub81675-05010

sub99132-11210

main81580-05010iAT190,ST191..UKP199308-199312

VALEO

sub81581-05010

sub81674-05010

sub81675-05010

sub99132-11210

main81580-05020iAT19#,CT190,ST191..UKP..LB199312-199601

sub81581-05020

sub81674-05020

sub81675-05020

sub99132-11210

main81580-05030iAT19#,CT190,ST191..UKP..SED199601-199710

sub81581-05030

sub81674-05010

sub81675-05030

sub99132-21210

main81580-05040iAT19#,CT190,ST191..UKP..LB199601-199710

sub81581-05040

sub81674-05020

sub81675-05040

sub99132-11210

main81580-05050iAT190..UKP..LHD..SED..GL199601-199710

LATIN AMERICA SPEC

sub81581-05050

sub81674-05010

sub81675-05030

sub99132-11210

main81580-05050iST191..UKP..LHD..SED199601-199710

LATIN AMERICA SPEC OR BRAZIL SPEC

sub81581-05050

sub81674-05010

sub81675-05030

sub99132-11210

main81580-20110iAT190,ST191..UKP199308-199312

KOITO

main81580-20110iAT190,ST191..UKP199212-199308

main81580-21010iAT19#,CT190,ST191..UKP..LHD..WG199505-199710

main81580-21020iAT19#,CT190,ST191..UKP..RHD..WG199505-199710

81580BBULB (FOR REAR LAMP)

main90080-81035iAT19#,CT190,ST191..UKP..(LB,SED)199308-199710

12V 21W

main90080-81035iAT19#,CT190,ST191..UKP..SED199308-199601

12V 21W,VALEO

main99132-11210iAT19#,CT190,ST191..UKP..WG199212-199710

12V 21W

main99132-11210iAT19#,CT190,ST191..UKP..SED199308-199601

12V 21W,KOITO

81581LENS, REAR LAMP

main81581-05010iAT19#,CT190,ST191..UKP..SED199308-199601

VALEO

main81581-05020iAT19#,CT190,ST191..UKP..LB199312-199601

RH

main81581-05030iAT19#,CT190,ST191..UKP..SED199601-199710

RH

main81581-05040iAT19#,CT190,ST191..UKP..LB199601-199710

RH

main81581-05050iST191..UKP..LHD..SED199601-199710

LATIN AMERICA SPEC OR BRAZIL SPEC,RH

main81581-05050iAT190,CT190..UKP..LHD..SED..GL199601-199710

LATIN AMERICA SPEC,RH

main81581-20110iAT19#,CT190,ST191..UKP..SED199212-199601

KOITO

main81581-21010iAT19#,CT190,ST191..UKP..LHD..WG199505-199710

RH

main81581-21020iAT19#,CT190,ST191..UKP..RHD..WG199505-199710

RH

main81591-05010iAT19#,CT190,ST191..UKP..SED199308-199601

VALEO

main81591-05020iAT19#,CT190,ST191..UKP..LB199312-199601

LH

main81591-05030iAT19#,CT190,ST191..UKP..SED199601-199710

LH

main81591-05040iAT19#,CT190,ST191..UKP..LB199601-199710

LH

main81591-05050iST191..UKP..LHD..SED199601-199710

LATIN AMERICA SPEC OR BRAZIL SPEC,LH

main81591-05050iAT190..UKP..LHD..SED..GL199601-199710

LATIN AMERICA SPEC,LH

main81591-20060iAT19#,CT190,ST191..UKP..SED199212-199601

KOITO

main81591-21010iAT19#,CT190,ST191..UKP..RHD..WG199505-199710

LH

main81591-21020iAT19#,CT190,ST191..UKP..LHD..WG199505-199710

LH

81584PACKING, REAR LAMP RH

main81584-20090iAT190,ST191..UKP199212-199308

main81584-20090iAT19#,CT190,ST191..UKP..SED199308-199601

KOITO

main81674-05010iAT19#,CT190,ST191..UKP..SED199308-199601

VALEO

main81674-05010iAT19#,CT190,ST191..UKP..SED199601-199710

main81674-05020iAT19#,CT190,ST191..UKP..LB199312-199601

VALEO,RH

main81674-05020iAT19#,CT190,ST191..UKP..LB199601-199710

RH

main81684-05010iAT19#,CT190,ST191..UKP..LB199312-199601

VALEO,LH

main81684-05010iAT19#,CT190,ST191..UKP..LB199601-199710

LH

81585SOCKET & WIRE, REAR LAMP

main81585-20110iAT19#,CT190,ST191..UKP..SED199212-199601

KOITO

main81585-21010iAT19#,CT190,ST191..UKP..WG199505-199710

RH

main81585-21020iAT19#,CT190,ST191..UKP..WG199505-199710

LH

main81595-20060iAT19#,CT190,ST191..UKP..SED199212-199601

KOITO

main81675-05010iAT19#,CT190,ST191..UKP..SED199308-199601

VALEO

main81675-05020iAT19#,CT190,ST191..UKP..LB199312-199601

main81675-05030iAT19#,CT190,ST191..UKP..SED199601-199710

main81675-05040iAT19#,CT190,ST191..UKP..LB199601-199710

81590ALAMP ASSY, REAR, LH

main81590-05010iAT19#,CT190,ST191..UKP..SED199312-199601

sub81591-05010

sub81674-05010

sub81675-05010

sub99132-11210

main81590-05010iAT190,ST191..UKP199308-199312

VALEO

sub81591-05010

sub81674-05010

sub81675-05010

sub99132-11210

main81590-05020iAT19#,CT190,ST191..UKP..LB199312-199601

sub81591-05020

sub81675-05010

sub81684-05010

sub99132-11210

main81590-05030iAT19#,CT190,ST191..UKP..SED199601-199710

sub81591-05030

sub81674-05010

sub81675-05030

sub99132-11210

main81590-05040iAT19#,CT190,ST191..UKP..LB199601-199710

sub81591-05040

sub81675-05040

sub81684-05010

sub99132-11210

main81590-05050iST191..UKP..LHD..SED199601-199710

LATIN AMERICA SPEC OR BRAZIL SPEC

sub81591-05050

sub81674-05010

sub81675-05030

sub99132-11210

main81590-05050iAT190..UKP..LHD..SED..GL199601-199710

LATIN AMERICA SPEC

sub81591-05050

sub81674-05010

sub81675-05030

sub99132-11210

main81590-20060iAT190,ST191..UKP199308-199312

KOITO

main81590-20060iAT190,ST191..UKP199212-199308

main81590-21010iAT19#,CT190,ST191..UKP..RHD..WG199505-199710

main81590-21020iAT19#,CT190,ST191..UKP..LHD..WG199505-199710

9014960093

main90149-60093

9017905011

main90179-05011

9046717014

main90467-17014

16 parts on this diagram · 3 diagrams in section
