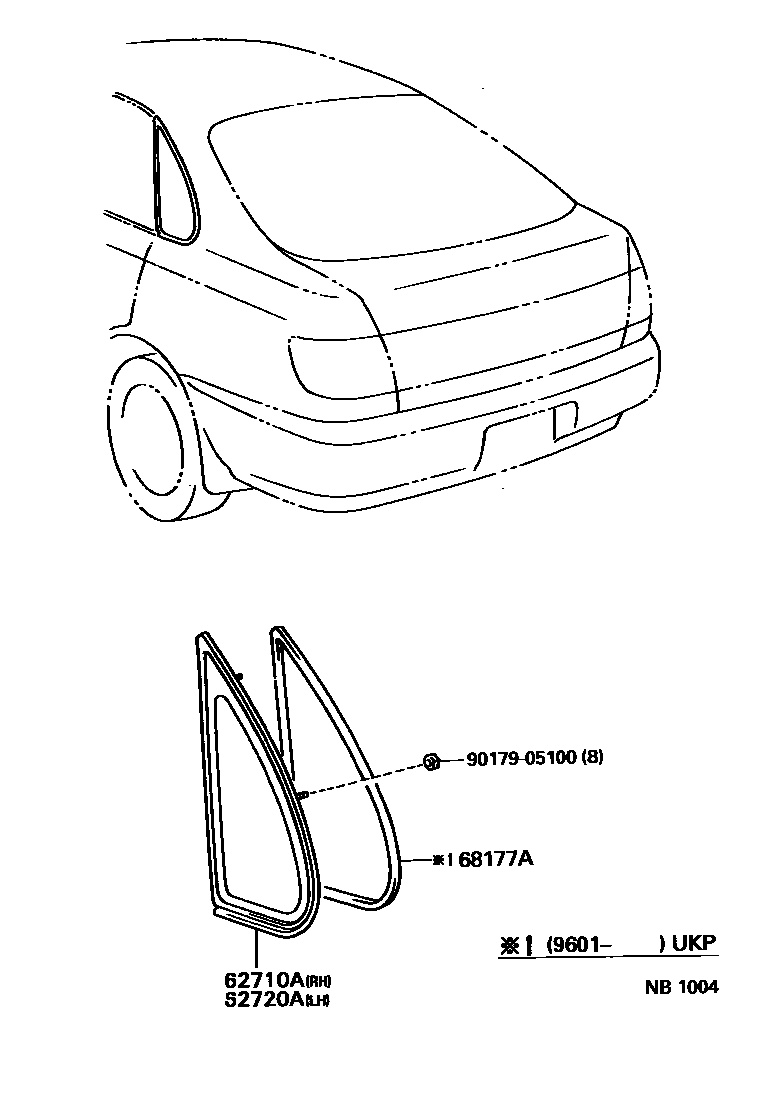

Toyota CARINA E (UKP) — QUARTER WINDOW

0001 1 0002 1

62710AWINDOW ASSY, QUARTER, RH

main62710-05010iAT19#,CT190,ST191..UKP..LB199312-199710

*TEM,T=3.1,GREEN

main62710-05030iAT19#,CT190,ST191..UKP..WG199601-199710

*TEM,T=3.1,GREEN

main62710-21031iAT19#,CT190,ST191..UKP..WG199505-199601

*TT,T=3.5

62720AWINDOW ASSY, QUARTER, LH

main62720-05010iAT19#,CT190,ST191..UKP..LB199312-199710

*TEM,T=3.1,GREEN

main62720-05030iAT19#,CT190,ST191..UKP..WG199601-199710

*TEM,T=3.1,GREEN

main62720-21031iAT19#,CT190,ST191..UKP..WG199505-199601

*TT,T=3.5

68177ASEAL, QUARTER WINDOW NO.2 GLASS, NO.1

main68177-33010iAT19#,CT190,ST191..UKP..LB199312-199710

9017905100

main90179-05100

4 parts on this diagram · 2 diagrams in section
