Toyota CARINA E (UKP) — PARTIAL ENGINE ASSEMBLY

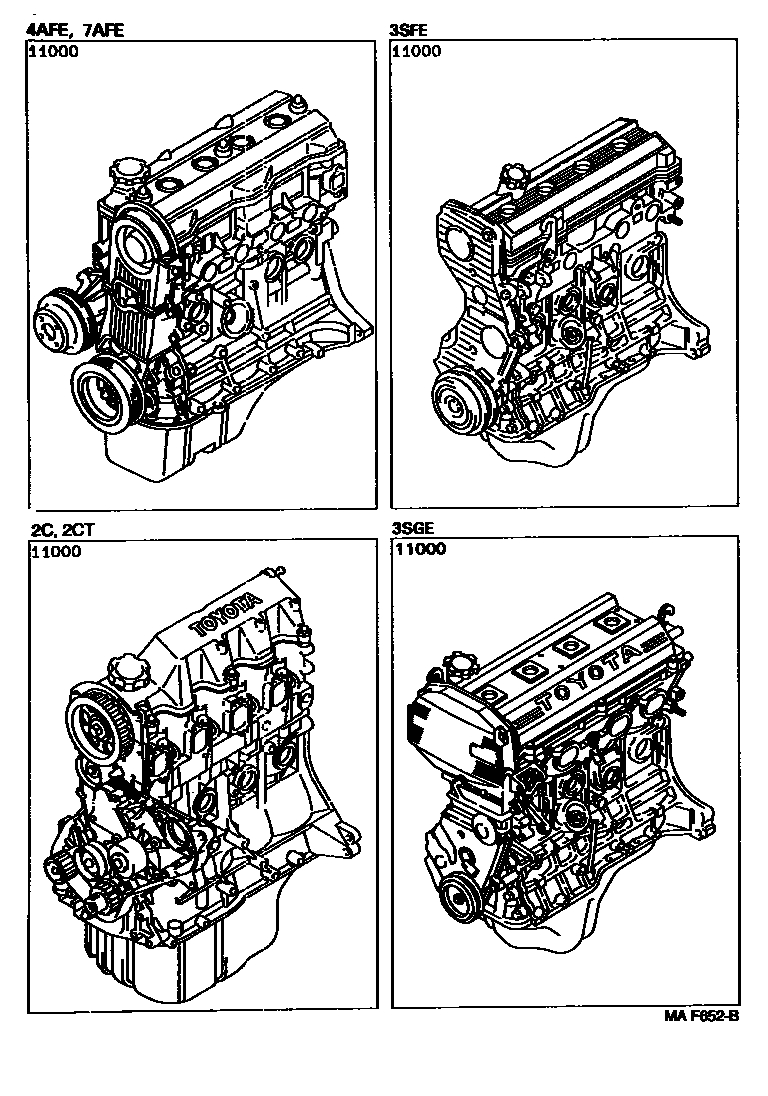

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-02060i199212-199402
main19000-02070i199212-199402
LEAN BURN
main19000-02080i199402-199601
main19000-02090i199402-199412
LEAN BURN
main19000-02091i199505-199601
main19000-02100i199402-199601
BOSCH EFI SYSTEM
main19000-02101i199601-199710
main19000-02110i199412-199710
main19000-02120i199601-199710
CIS
main19000-64780i199410-199504
main19000-64781i199504-199601
sub19000-64782
sub90105-16064
sub90560-16025
main19000-64860i199601-199710
sub19000-64861
sub90105-16064
sub90560-16025
main19000-74490i199212-199601
main19000-74820i199601-199710
main19000-74830i199601-199710

1 parts on this diagram · 1 diagram in section
