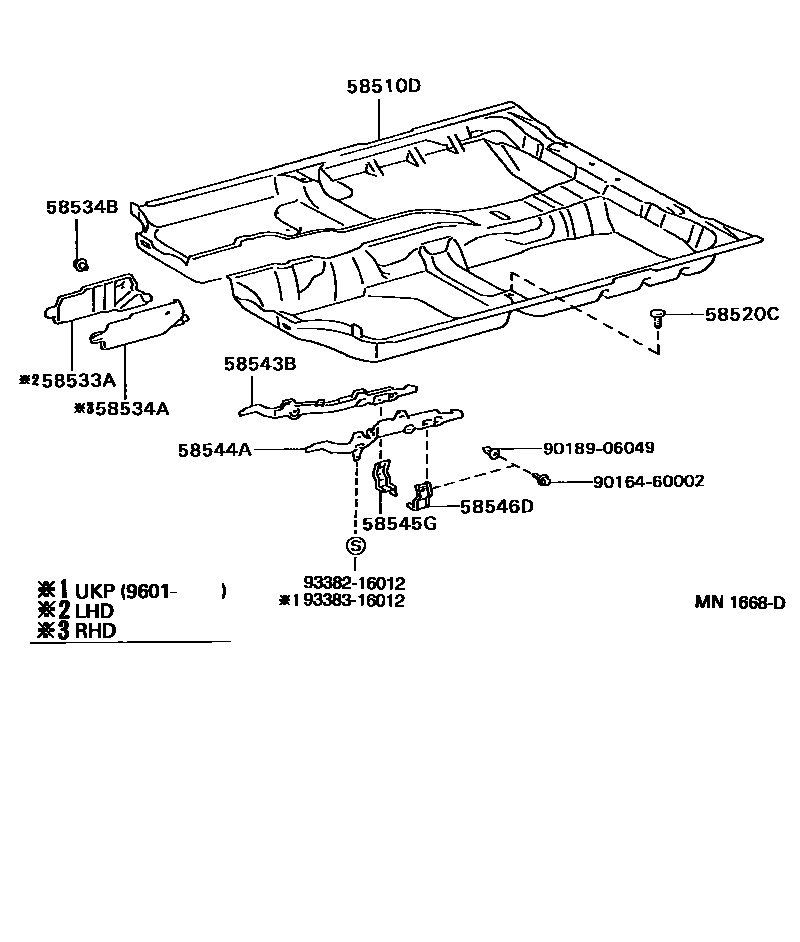

Toyota CARINA E (UKP) — MAT & CARPET

0001 1 0002 1

58510DCARPET ASSY, FLOOR, FRONT

main58510-05010-C1iAT190,ST191..UKP..RHD..SED199212-199405

BLACK,TRIM2#

sub58510-05011

main58510-05010-J0iAT190,ST191..UKP..RHD..SED199212-199405

DK. BLUE,TRIM8#

sub58510-05011

main58510-05011-B0iAT190,CT190,ST191..UKP..RHD..SED199405-199412

SHADOW GRAY,TRIM1#

sub58510-05012

main58510-05011-J0iAT190,CT190,ST191..UKP..RHD..SED199405-199412

DK. BLUE,TRIM8#

sub58510-05012

main58510-05012-B0iAT19#,CT190,ST191..UKP..RHD..SED199412-199508

SHADOW GRAY,TRIM1#

main58510-05012-J0iAT19#,CT190,ST191..UKP..RHD..SED199412-199508

DK. BLUE,TRIM8#

main58510-05013-B0iAT19#,CT190,ST191..UKP..RHD..SED199508-199601

GRAY,TRIM1#

main58510-05013-J0iAT19#,CT190,ST191..UKP..RHD..SED199508-199601

DK. BLUE,TRIM8#

main58510-05014-B0iAT19#,CT190,ST191..UKP..RHD..SED199601-199608

GRAY,TRIM1#

main58510-05014-J0iAT19#,CT190,ST191..UKP..RHD..SED199601-199608

DK. BLUE,TRIM8#

main58510-05020-C1iAT190,ST191..UKP..LHD..SED199212-199405

BLACK,TRIM2#

sub58510-05021

main58510-05020-J0iAT190,ST191..UKP..LHD..SED199212-199405

DK. BLUE,TRIM8#

sub58510-05021

main58510-05021-B0iAT190,CT190,ST191..UKP..LHD..SED199405-199412

SHADOW GRAY,TRIM1#

sub58510-05022

main58510-05021-J0iAT190,CT190,ST191..UKP..LHD..SED199405-199412

DK. BLUE,TRIM8#

sub58510-05022

main58510-05022-B0iAT19#,CT190,ST191..UKP..LHD..SED199412-199508

SHADOW GRAY,TRIM1#

main58510-05022-J0iAT19#,CT190,ST191..UKP..LHD..SED199412-199508

DK. BLUE,TRIM8#

main58510-05023-B0iAT19#,CT190,ST191..UKP..LHD..SED199508-199601

GRAY,TRIM1#

main58510-05023-J0iAT19#,CT190,ST191..UKP..LHD..SED199508-199601

DK. BLUE,TRIM8#

main58510-05024-B0iAT19#,CT190,ST191..UKP..LHD..SED199601-199608

GRAY,TRIM1#

sub58510-05140

main58510-05024-J0iAT19#,CT190,ST191..UKP..LHD..SED199601-199608

DK. BLUE,TRIM8#

sub58510-05140

main58510-05030-C1iAT190,ST191..UKP..LHD..LB199312-199405

BLACK,TRIM2#

sub58510-05031

main58510-05030-J0iAT190,ST191..UKP..LHD..LB199312-199405

DK. BLUE,TRIM8#

sub58510-05031

main58510-05031-B0iAT190,CT190,ST191..UKP..LHD..LB199405-199412

SHADOW GRAY,TRIM1#

sub58510-05032

main58510-05031-J0iAT190,CT190,ST191..UKP..LHD..LB199405-199412

DK. BLUE,TRIM8#

sub58510-05032

main58510-05032-B0iAT19#,CT190,ST191..UKP..LHD..(LB,WG)199412-199508

SHADOW GRAY,TRIM1#

main58510-05032-J0iAT19#,CT190,ST191..UKP..LHD..(LB,WG)199412-199508

DK. BLUE,TRIM8#

main58510-05033-B0iAT19#,CT190,ST191..UKP..LHD..(LB,WG)199508-199601

GRAY,TRIM1#

main58510-05033-J0iAT19#,CT190,ST191..UKP..LHD..(LB,WG)199508-199601

DK. BLUE,TRIM8#

main58510-05034-B0iAT19#,CT190,ST191..UKP..LHD..(LB,WG)199601-199608

GRAY,TRIM1#

sub58510-05150

main58510-05034-J0iAT19#,CT190,ST191..UKP..LHD..(LB,WG)199601-199608

DK. BLUE,TRIM8#

sub58510-05150

main58510-05040-C1iAT190,ST191..UKP..RHD..LB199312-199405

BLACK,TRIM2#

sub58510-05041

main58510-05040-J0iAT190,ST191..UKP..RHD..LB199312-199405

DK. BLUE,TRIM8#

sub58510-05041

main58510-05041-B0iAT190,CT190,ST191..UKP..RHD..LB199405-199412

SHADOW GRAY,TRIM1#

sub58510-05042

main58510-05041-J0iAT190,CT190,ST191..UKP..RHD..LB199405-199412

DK. BLUE,TRIM8#

sub58510-05042

main58510-05042-B0iAT19#,CT190,ST191..UKP..RHD..(LB,WG)199412-199508

SHADOW GRAY,TRIM1#

main58510-05042-J0iAT19#,CT190,ST191..UKP..RHD..(LB,WG)199412-199508

DK. BLUE,TRIM8#

main58510-05043-B0iAT19#,CT190,ST191..UKP..RHD..(LB,WG)199508-199601

GRAY,TRIM1#

main58510-05043-J0iAT19#,CT190,ST191..UKP..RHD..(LB,WG)199508-199601

DK. BLUE,TRIM8#

main58510-05044-B0iAT19#,CT190,ST191..UKP..RHD..(LB,WG)199601-199608

GRAY,TRIM1#

main58510-05044-J0iAT19#,CT190,ST191..UKP..RHD..(LB,WG)199601-199608

DK. BLUE,TRIM8#

main58510-05130-B0iAT19#,CT190,ST191..UKP..RHD..SED199608-199710

GRAY,TRIM1#

main58510-05130-J0iAT19#,CT190,ST191..UKP..RHD..SED199608-199710

DK. BLUE,TRIM8#

main58510-05140-B0iAT19#,CT190,ST191..UKP..LHD..SED199608-199710

GRAY,TRIM1#

main58510-05140-J0iAT19#,CT190,ST191..UKP..LHD..SED199608-199710

DK. BLUE,TRIM8#

main58510-05150-B0iAT19#,CT190,ST191..UKP..LHD..(LB,WG)199608-199710

GRAY,TRIM1#

main58510-05150-J0iAT19#,CT190,ST191..UKP..LHD..(LB,WG)199608-199710

DK. BLUE,TRIM8#

main58510-05160-B0iAT19#,CT190,ST191..UKP..RHD..(LB,WG)199608-199710

GRAY,TRIM1#

main58510-05160-J0iAT19#,CT190,ST191..UKP..RHD..(LB,WG)199608-199710

DK. BLUE,TRIM8#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-06016-C0iAT190,ST191..UKP..SED199212-199405

BLACK,TRIM2#,8#

sub90467-06016

sub90467-07049

main90467-06016-C0iAT190,ST191..UKP..SED199405-199601

BLACK,TRIM8#

sub90467-06016

sub90467-07049

main90467-06016-C0iAT190..UKP..RHD..SED;AT191,ST191..UKP..SED;AT190..UKP..LHD..SED..GL199407-199710

BLACK,TRIM1#,8#

sub90467-06016

sub90467-07049

58533ACOVER, FLOOR CARPET, CENTER RH

main58533-05010iAT19#,CT190,ST191..UKP..LHD199308-199710

main58533-20010iAT190,ST191..UKP..LHD199212-199308

58534AMAT, TRANSMISSION COVER

main58534-05010iAT19#,CT190,ST191..UKP..RHD199308-199710

main58534-20010iAT190,ST191..UKP..RHD199212-199308

58534BCLIP(FOR FLOOR CARPET CENTER COVER)

main90467-07042-C0iAT19#,CT190,ST191..UKP199405-199710

BLACK,TRIM1#,8#

sub90467-07042

sub90467-06175

main90467-07042-C0iAT190,ST191..UKP199212-199405

BLACK,TRIM2#,8#

sub90467-07042

sub90467-06175

58543BBRACKET, FLOOR CARPET, RH

main58543-05010iAT19#,CT190,ST191..UKP..RHD199308-199710

main58543-05020iAT19#,CT190,ST191..UKP..LHD199308-199710

main58543-20030iAT190,ST191..UKP..RHD199212-199308

main58543-20040iAT190,ST191..UKP..LHD199212-199308

58544ABRACKET, FLOOR CARPET, LH

main58544-05010iAT19#,CT190,ST191..UKP..RHD199308-199710

main58544-05020iAT19#,CT190,ST191..UKP..LHD199308-199710

main58544-20030iAT190,ST191..UKP..RHD199212-199308

main58544-20040iAT190,ST191..UKP..LHD199212-199308

58545GBRACKET, FLOOR CARPET, NO.2 RH

main58545-20010iAT19#,CT190,ST191..UKP199212-199710

58546DBRACKET, FLOOR CARPET, NO.2 LH

main58546-20010iAT19#,CT190,ST191..UKP199212-199710

9016460002

main90164-60002

9018906049

main90189-06049

9338216012

main93382-16012

9338316012

main93383-16012

13 parts on this diagram · 2 diagrams in section
