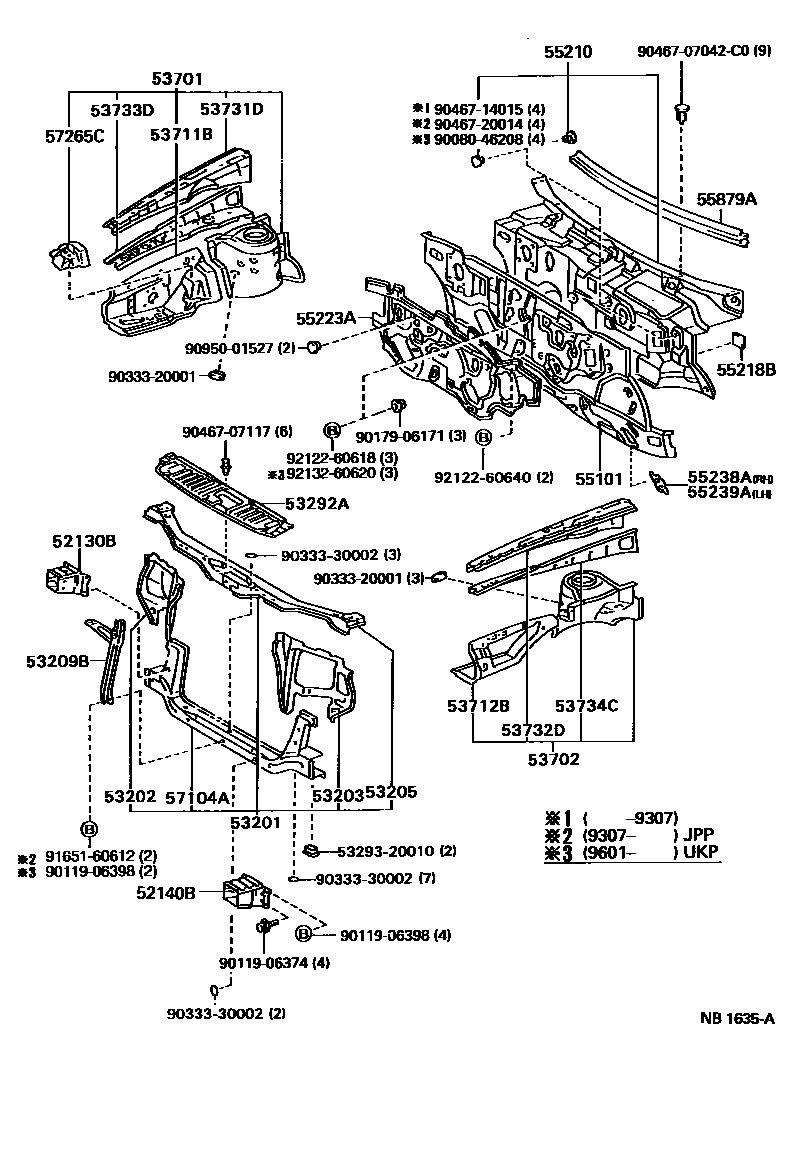

Toyota CARINA E (UKP) — FRONT FENDER APRON & DASH PANEL
52130BBRACKET ASSY, FRONT BUMPER SIDE MOUNTING, RH
52140BBRACKET ASSY, FRONT BUMPER SIDE MOUNTING, LH
53201SUPPORT SUB-ASSY, RADIATOR
53202SUPPORT SUB-ASSY, RADIATOR, RH
53203SUPPORT SUB-ASSY, RADIATOR, LH
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53209BBRACE SUB-ASSY, HOOD LOCK SUPPORT
53292ASEAL, RADIATOR SUPPORT, UPPER
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH
53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH
55101PANEL SUB-ASSY, DASH
55210INSULATOR ASSY, DASH PANEL
55218BSEAL, DASH PANEL INSULATOR
110X150
60 X 75
55238APLATE, DASH PANEL INSULATOR, NO.2
55239APLATE, DASH PANEL INSULATOR, NO.3
55879ASEAL, COWL VENT
57104AMEMBER SUB-ASSY, FRONT CROSS
57265CBRACKET, ENGINE MOUNTING, RH
5329320010BRACKET, FRONT BUMPER STAY
main53293-20010
9008046208
main90080-46208
9011906374
main90119-06374
9011906398
main90119-06398
9017906171
main90179-06171
9033320001
main90333-20001
9033330002
main90333-30002
9046707042C0
main90467-07042C0
9046707117
main90467-07117
9046714015
main90467-14015
9046720014
main90467-20014
9095001527
main90950-01527
9165160612
main91651-60612
9212260618
main92122-60618
9212260640
main92122-60640
9213260620
main92132-60620
41 parts on this diagram · 1 diagram in section
