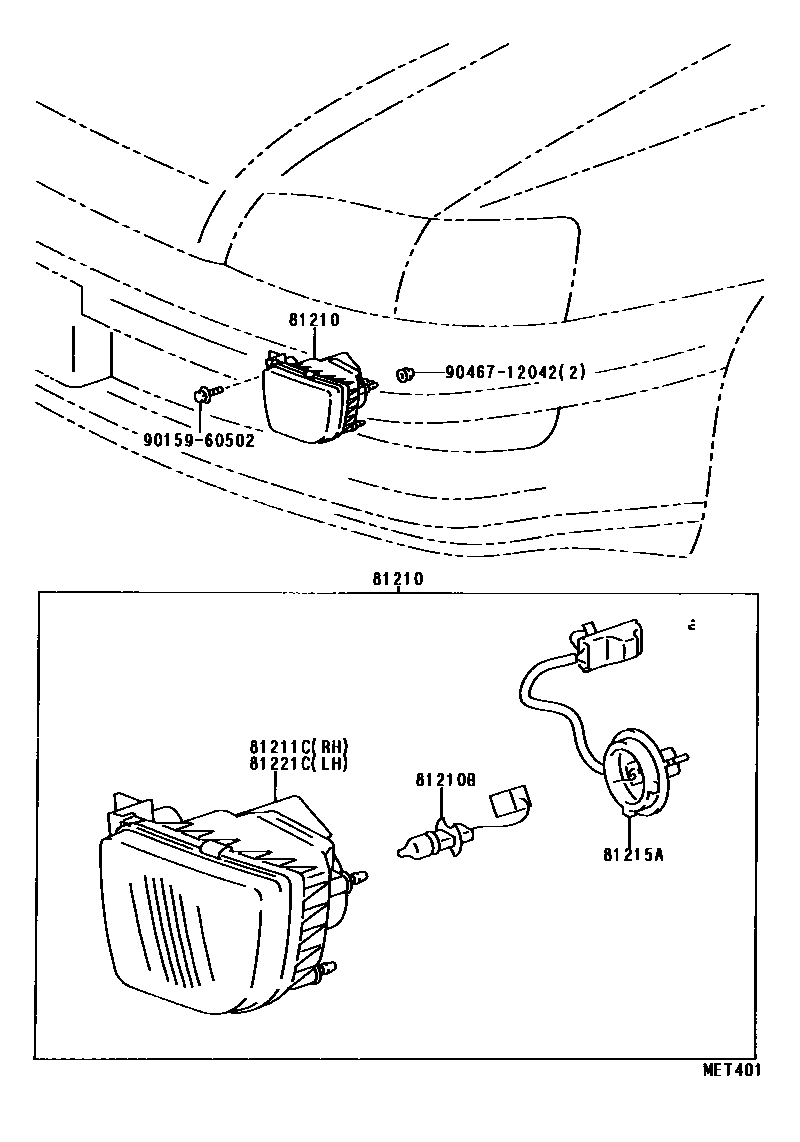

Toyota CARINA E (UKP) — FOG LAMP
81210LAMP ASSY, FOG
main81210-05010iCT190..UKP..LB;AT19#,ST191..UKP..GL;CT190..UKP..LHD..SED;AT190..UKP..LHD..WG..XL;AT190..UKP..(LB,SED)..XL199308-199601
YELLOW BULB,HELLA
main81210-05030iCT190..UKP..RHD;AT19#..UKP..RHD..XL;CT190..UKP..LHD..GL;AT19#,ST191..UKP..GL199601-199710
RH
YELLOW BULB,KOITO
main81220-05010iAT19#,ST191..UKP..GL;AT190..UKP..(LB,SED)..XL;CT190..UKP..LHD..(LB,SED)199308-199601
YELLOW BULB,HELLA
LH
YELLOW BULB,KOITO
81210BBULB, FOG LAMP
main90080-81033iAT19#,ST191..UKP..GL;AT190..UKP..(LB,SED)..XL;CT190..UKP..LHD..(LB,SED)199308-199601
12V 55W,HELLA
main90080-81033iCT190..UKP..RHD;AT19#..UKP..RHD..XL;CT190..UKP..LHD..GL;AT19#,ST191..UKP..GL199601-199710
12V 55W
main90981-13018iAT19#,ST191..UKP..GL;AT190..UKP..(LB,SED)..XL;CT190..UKP..LHD..(LB,SED)199308-199601
12V 55W,HALOGEN,KOITO
12V 55W,HALOGEN
81211CLAMP UNIT, FOG LAMP, RH
main81211-05010iCT190..UKP..LB;AT19#,ST191..UKP..GL;CT190..UKP..LHD..SED;AT190..UKP..LHD..WG..XL;AT190..UKP..(LB,SED)..XL199308-199601
HELLA
main81211-20250iAT19#,ST191..UKP..GL;AT190..UKP..(LB,SED)..XL;CT190..UKP..LHD..(LB,SED)199308-199601
KOITO
81215ASOCKET & WIRE, FOG LAMP
main81215-05010iAT19#,ST191..UKP..GL;AT190..UKP..(LB,SED)..XL;CT190..UKP..LHD..(LB,SED)199308-199601
W(FRONT FOG LAMP)
81221CLAMP UNIT, FOG LAMP, LH
main81221-05010iCT190..UKP..LB;AT19#,ST191..UKP..GL;CT190..UKP..LHD..SED;AT190..UKP..LHD..WG..XL;AT190..UKP..(LB,SED)..XL199308-199601
HELLA
main81221-20240iAT19#,ST191..UKP..GL;AT190..UKP..(LB,SED)..XL;CT190..UKP..LHD..(LB,SED)199308-199601
KOITO
9015960502
main90159-60502
9046712042
main90467-12042
7 parts on this diagram · 2 diagrams in section
