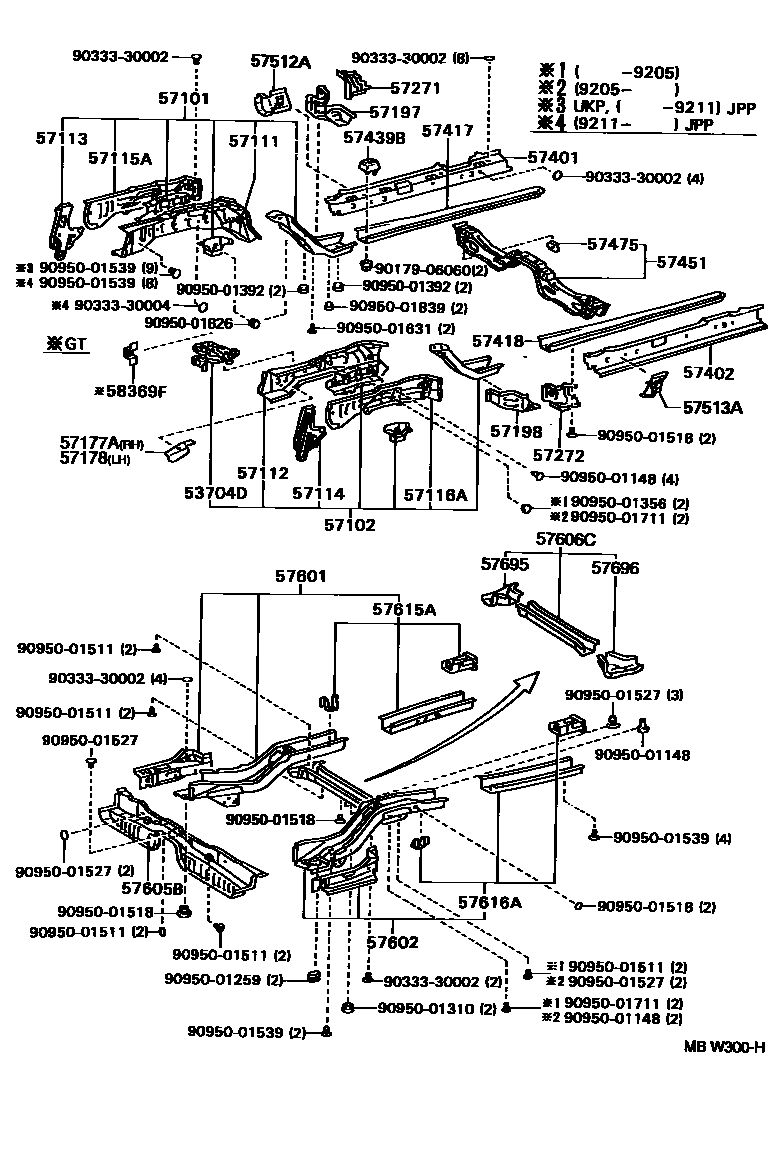

Toyota CARINA E (UKP) — FLOOR SIDE MEMBER

0001 1 0002 1

53704DSUPPORT SUB-ASSY, BATTERY, LH

main53704-20010iAT19#,CT190,ST191..UKP199212-199710

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-05011iAT19#..UKP199505-199601

sub57101-05012

main57101-05012iAT19#..UKP199601-199710

main57101-05021iCT190,ST191..UKP199505-199601

sub57101-05022

main57101-05022iCT190,ST191..UKP199601-199710

main57101-05900iAT19#..UKP199212-199505

main57101-05901iCT190,ST191..UKP199212-199505

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-05011iAT19#..UKP199505-199710

main57102-05021iCT190,ST191..UKP199505-199710

main57102-05900iAT19#..UKP199212-199505

main57102-05901iCT190,ST191..UKP199212-199505

57111MEMBER, FRONT SIDE, RH

main57111-05010iAT19#,CT190,ST191..UKP199212-199710

57112MEMBER, FRONT SIDE, LH

main57112-05010iAT19#,CT190,ST191..UKP199212-199710

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-20150iAT19#,CT190,ST191..UKP199212-199501

sub57113-20151

main57113-20151iAT19#,CT190,ST191..UKP199501-199710

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-20120iAT19#,CT190,ST191..UKP199212-199501

sub57114-20121

main57114-20121iAT19#,CT190,ST191..UKP199501-199710

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-20150iAT190,ST191..UKP199212-199412

sub57115-20160

sub90333-30002

main57115-20160iCT190,ST191..UKP199410-199710

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-20170iAT19#,CT190,ST191..UKP199212-199505

sub57116-20181

sub90333-30002

main57116-20181iAT19#,CT190,ST191..UKP199505-199710

57177APLATE, FRONT SIDE MEMBER, NO.7 RH

57178PLATE, FRONT SIDE MEMBER, NO.7 LH

57197BOX, TORQUE, FRONT RH

main57197-20040iAT19#,CT190,ST191..UKP199212-199710

57198BOX, TORQUE, FRONT LH

main57198-20050iAT19#,CT190,ST191..UKP199212-199710

57271EXTENSION, STEERING GEAR BOX SUPPORT MEMBER, RH

main57271-20040iAT19#,CT190,ST191..UKP199212-199509

sub57271-20041

main57271-20041iAT19#,CT190,ST191..UKP199509-199710

57272EXTENSION, STEERING GEAR BOX SUPORT MEMBER, LH

main57272-20040iAT19#,CT190,ST191..UKP199212-199509

sub57272-20041

main57272-20041iAT19#,CT190,ST191..UKP199509-199710

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-05010iAT19#,CT190,ST191..UKP199212-199508

sub57401-05020

main57401-05020iAT19#,CT190,ST191..UKP199508-199601

sub57401-05030

main57401-05030iAT19#,CT190,ST191..UKP199601-199710

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-05010iAT19#,CT190,ST191..UKP199212-199508

sub57402-05020

main57402-05020iAT19#,CT190,ST191..UKP199508-199601

sub57402-05030

main57402-05030iAT19#,CT190,ST191..UKP199601-199710

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57505-05010iAT19#,CT190,ST191..UKP199212-199710

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57506-05010iAT19#,CT190,ST191..UKP199212-199710

57439BDAMPER, FRONT FLOOR CROSSMEMBER DYNAMIC

main57439-20010iCT190,ST191..UKP199212-199710

57451MEMBER, FRONT FLOOR CROSS

main57408-05020iAT19#,CT190,ST191..UKP199507-199710

main57408-05900iAT19#,CT190,ST191..UKP199212-199507

57475PLATE, FRONT FLOOR CROSSMEMBER

main57475-05010iAT19#,CT190,ST191..UKP199212-199710

57512AREINFORCEMENT, FRONT FLOOR, RH

main57512-05010iAT19#,CT190,ST191..UKP..(LB,SED)199504-199710

57513AREINFORCEMENT, FRONT FLOOR, LH

main57513-05010iAT19#,CT190,ST191..UKP..(LB,SED)199504-199710

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-05010iAT19#,CT190,ST191..UKP..SED199212-199601

main57601-05020iAT19#,CT190,ST191..UKP..(LB,WG)199312-199601

main57601-05040iAT19#,CT190,ST191..UKP..SED199601-199710

sub57601-05902

main57601-05902iAT19#,CT190,ST191..UKP..(LB,WG)199601-199710

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-05010iAT19#,CT190,ST191..UKP..SED199212-199601

main57602-05020iAT19#,CT190,ST191..UKP..(LB,WG)199312-199710

main57602-05030iAT190..UKP..LHD..SED..XL199601-199710

RUSSIA SPEC

main57602-05902iAT19#,CT190,ST191..UKP..(LB,WG)199601-199710

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-05010iAT19#,CT190,ST191..UKP199212-199710

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-05030iAT19#,CT190,ST191..UKP199601-199710

main57606-05900iAT190,ST191..UKP199212-199405

sub57606-05901

main57606-05901iAT19#,CT190,ST191..UKP199410-199601

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-05900iAT19#,CT190,ST191..UKP199212-199601

main57615-20918iAT19#,CT190,ST191..UKP199601-199710

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-05900iAT19#,CT190,ST191..UKP199212-199710

main57616-20908iAT190..UKP..LHD..SED..XL199601-199710

57695EXTENSION, REAR FLOOR CROSS REAR SIDE, RH

main57695-20020iAT19#,CT190,ST191..UKP199212-199710

57696EXTENSION, REAR FLOOR CROSS REAR SIDE, LH

main57696-20020iAT19#,CT190,ST191..UKP199212-199710

58369FBRACKET, FUEL TUBE, NO.3

9017906060

main90179-06060

9033330002

main90333-30002

9033330004

main90333-30004

9095001148

main90950-01148

9095001259

main90950-01259

9095001310

main90950-01310

9095001356

main90950-01356

9095001392

main90950-01392

9095001511

main90950-01511

9095001518

main90950-01518

9095001527

main90950-01527

9095001539

main90950-01539

9095001631

main90950-01631

9095001711

main90950-01711

9095001826

main90950-01826

9095001839

main90950-01839

49 parts on this diagram · 2 diagrams in section
