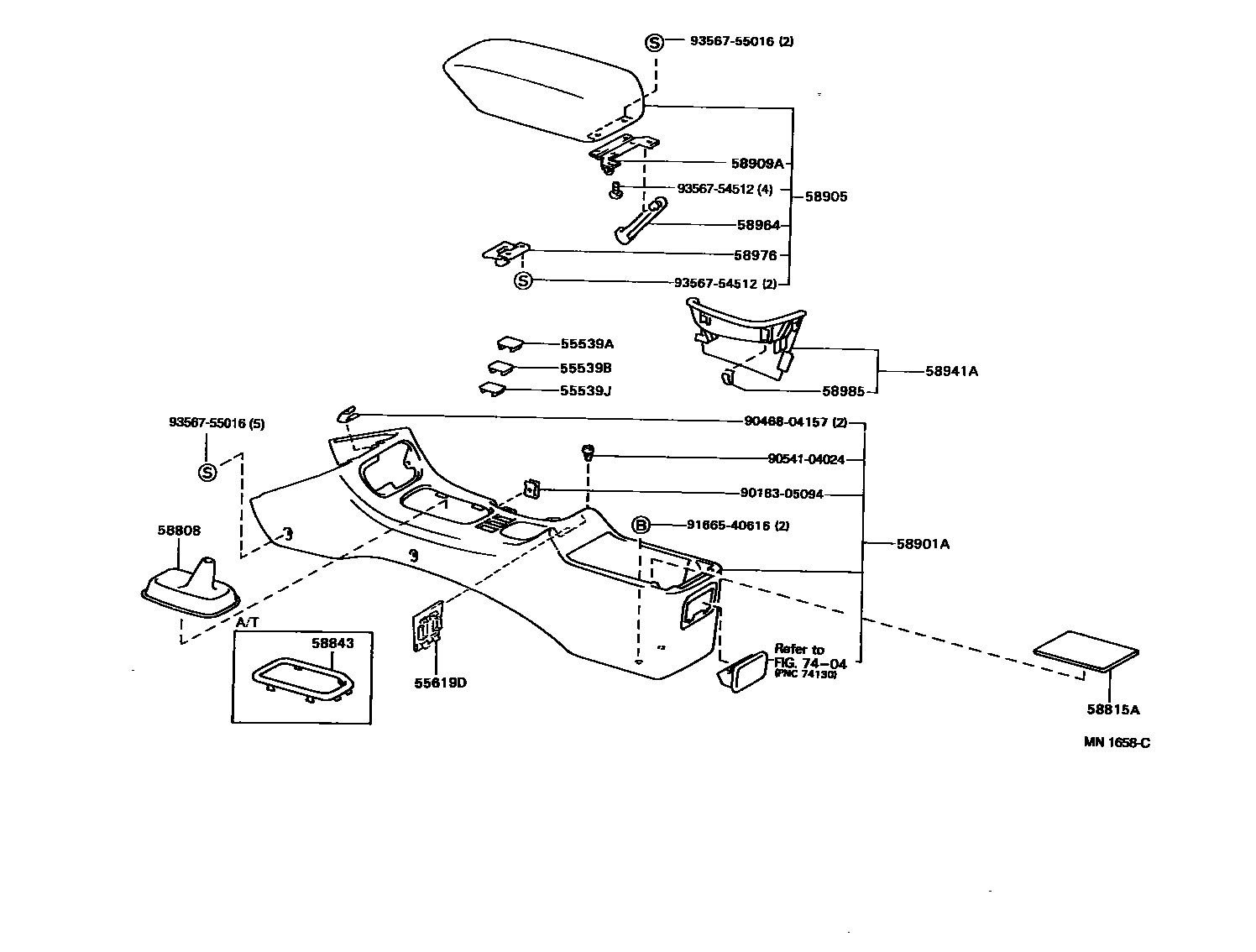

Toyota CARINA E (UKP) — CONSOLE BOX & BRACKET

55539ACOVER, SPARE SWITCH HOLE

main55539-05010-B0iAT19#,CT190,ST191..UKP199405-199606

SHADOW GRAY,TRIM1#

main55539-05010-C0iAT190,ST191..UKP199308-199405

BLACK,TRIM2#

main55539-05010-J0iAT19#,CT190,ST191..UKP199308-199606

DK. BLUE,TRIM8#

main55539-05020-B0iAT19#,CT190,ST191..UKP199606-199710

SHADOW GRAY,TRIM1#

main55539-05020-J0iAT19#,CT190,ST191..UKP199606-199710

DK.BLUE,TRIM8#

main55539-12120-B0iAT190,CT190,ST191..UKP199405-199412

SHADOW GRAY,TRIM1#

sub55539-12120

sub55539-32010

main55539-12120-C0iAT190,ST191..UKP199212-199405

BLACK,TRIM2#

sub55539-12120

sub55539-32010

main55539-12120-J0iAT190,CT190,ST191..UKP199212-199412

DARK BLUE,TRIM8#

sub55539-12120

sub55539-32010

55539BCOVER, SPARE SWITCH HOLE, NO.2

main55539-05010-B0iAT19#,CT190,ST191..UKP199405-199606

SHADOW GRAY,TRIM1#

main55539-05010-C0iAT190,ST191..UKP199308-199405

BLACK,TRIM2#

main55539-05010-J0iAT19#,CT190,ST191..UKP199308-199606

DK. BLUE,TRIM8#

main55539-12120-B0iAT190,CT190,ST191..UKP199405-199412

SHADOW GRAY,TRIM1#

sub55539-12120

sub55539-32010

main55539-12120-C0iAT190,ST191..UKP199212-199405

BLACK,TRIM2#

sub55539-12120

sub55539-32010

main55539-12120-J0iAT190,CT190,ST191..UKP199212-199412

DARK BLUE,TRIM8#

sub55539-12120

sub55539-32010

55539JCOVER, SPARE SWITCH HOLE

main55539-05010-B0iAT19#,CT190,ST191..UKP199405-199606

SHADOW GRAY,TRIM1#

main55539-05010-C0iAT190,ST191..UKP199308-199405

BLACK,TRIM2#

main55539-05010-J0iAT19#,CT190,ST191..UKP199308-199606

DK. BLUE,TRIM8#

main55539-12120-B0iAT190,CT190,ST191..UKP199405-199412

SHADOW GRAY,TRIM1#

sub55539-12120

sub55539-32010

main55539-12120-C0iAT190,ST191..UKP199212-199405

BLACK,TRIM2#

sub55539-12120

sub55539-32010

main55539-12120-J0iAT190,CT190,ST191..UKP199212-199412

DARK BLUE,TRIM8#

sub55539-12120

sub55539-32010

55619DCOVER, CUP HOLDER HOLE

main55619-20010-B1iAT190,CT190,ST191..UKP199405-199412

SHADOW GRAY,TRIM1#

sub55619-20010

main55619-20010-C0iAT190,ST191..UKP199212-199405

BLACK,TRIM2#

sub55619-20010

main55619-20010-J0iAT190,CT190,ST191..UKP199212-199412

DK.BLUE,TRIM8#

sub55619-20010

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-05010-C1iAT19#,CT190,ST191..UKP..RHD..MTM199405-199710

BLACK,TRIM1#,8#

main58808-05010-C1iAT190..UKP..RHD..SED..MTM;CT190,ST191..UKP..RHD..MTM;AT190..UKP..RHD..LB..MTM..GL199405-199412

BLACK,TRIM8#

main58808-05010-C1iAT190,ST191..UKP..RHD..MTM199308-199405

BLACK,TRIM2#,8#

main58808-05020-C1iAT19#,CT190..UKP..LHD..MTM;ST191..UKP..LHD..(LB,SED)..MTM199405-199710

BLACK,TRIM1#,8#

main58808-05020-C1iAT190,ST191..UKP..LHD..MTM199308-199405

BLACK,TRIM2#,8#

main58808-20100-C0iAT190,CT190,ST191..UKP..RHD..MTM199405-199412

BLACK,TRIM1#,8#

main58808-20100-C0iAT190,ST191..UKP..RHD..MTM199212-199405

BLACK,TRIM2#,8#

main58808-20110-C0iAT190,ST191..UKP..LHD..MTM199212-199405

BLACK,TRIM2#,8#

main58808-20110-C0iAT190,CT190,ST191..UKP..LHD..MTM199405-199412

BLACK,TRIM1#,8#

58815ACARPET, CONSOLE BOX

main58815-20030-C0iAT190,ST191..UKP..RHD199212-199405

BLACK,TRIM2#

sub58815-20030

main58815-20030-C0iAT190,CT190,ST191..UKP..RHD199405-199412

BLACK,TRIM1#,8#

sub58815-20030

main58815-20030-J0iAT190,ST191..UKP..RHD199212-199402

DK.BLUE,TRIM8#

sub58815-20030

58843BEZEL, SHIFTING HOLE

main58843-20060iST191..UKP..LHD..WG..MTM;AT190,ST191..UKP..RHD..ATM199212-199710

main58843-20080iAT19#,ST191..UKP..LHD..ATM199212-199710

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-05010-B0iAT19#,CT190,ST191..UKP..RHD199405-199510

SHADOW GRAY,TRIM1#

sub58901-05030

main58901-05010-C1iAT190,ST191..UKP..RHD199310-199405

BLACK,TRIM2#

sub58901-05030

main58901-05010-J1iAT19#,CT190,ST191..UKP..RHD199310-199510

DK. BLUE,TRIM8#

sub58901-05030

main58901-05020-B0iAT190,CT190,ST191..UKP..LHD199405-199510

SHADOW GRAY,TRIM1#

sub58901-05040

main58901-05020-C1iAT190,ST191..UKP..LHD199310-199405

BLACK,TRIM2#

sub58901-05040

main58901-05020-J1iAT19#,CT190,ST191..UKP..LHD199310-199510

DK. BLUE,TRIM8#

sub58901-05040

main58901-05030-B0iAT19#,CT190,ST191..UKP..RHD199510-199710

SHADOW GRAY,TRIM1#

main58901-05030-J0iAT19#,CT190,ST191..UKP..RHD199510-199710

DK.BLUE,TRIM8#

main58901-05040-B0iAT19#,CT190,ST191..UKP..LHD199510-199710

SHADOW GRAY,TRIM1#

main58901-05040-J0iAT19#,CT190,ST191..UKP..LHD199510-199710

DK.BLUE,TRIM8#

main58901-20120-B2iAT190,CT190,ST191..UKP..RHD199405-199412

SHADOW GRAY,TRIM1#

sub58901-20120

main58901-20120-C0iAT190,ST191..UKP..RHD199212-199305

BLACK,TRIM2#

sub58901-20120

main58901-20120-C1iAT190,ST191..UKP..RHD199212-199405

BLACK,TRIM2#

sub58901-20120

main58901-20120-J1iAT190,CT190,ST191..UKP..RHD199212-199412

DK. BLUE,TRIM8#

sub58901-20120

main58901-20130-B0iAT190,CT190,ST191..UKP..LHD199405-199412

SHADOW GRAY,TRIM1#

sub58901-20130

main58901-20130-C1iAT190,ST191..UKP..LHD199212-199405

BLACK,TRIM2#

sub58901-20130

main58901-20130-J1iAT190,CT190,ST191..UKP..LHD199212-199412

DK. BLUE,TRIM8#

sub58901-20130

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-05010-B0iAT190..UKP199405-199710

SHADOW GRAY,TRIM1#

main58905-05010-C0iAT190,ST191..UKP199308-199405

BLACK,TRIM2#

main58905-05010-J0iAT19#,CT190,ST191..UKP199308-199710

DK. BLUE,TRIM8#

main58905-20170-B1iAT190,CT190,ST191..UKP199405-199412

SHADOW GRAY,TRIM1#

sub58905-20170

main58905-20170-C0iAT190,ST191..UKP199212-199405

BLACK,TRIM2#

sub58905-20170

main58905-20170-J0iAT190,CT190,ST191..UKP199212-199412

DK.BLUE,TRIM8#

sub58905-20170

58909ASTOPPER SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58909-05010iAT19#,CT190,ST191..UKP199308-199710

main58909-20030iAT190,CT190,ST191..UKP199212-199412

58941ACOVER, PARKING BRAKE HOLE

main58904-05010-B0iAT19#,CT190,ST191..UKP..RHD199405-199710

SHADOW GRAY,TRIM1#

main58904-05010-C0iAT190,ST191..UKP..RHD199310-199405

BLACK,TRIM2#

main58904-05010-J0iAT19#,CT190,ST191..UKP..RHD199310-199710

DK. BLUE,TRIM8#

main58904-05020-B0iAT191..UKP..LHD199405-199710

SHADOW GRAY,TRIM1#

main58904-05020-C0iAT190,ST191..UKP..LHD199310-199405

BLACK,TRIM2#

main58904-05020-J0iAT19#,CT190,ST191..UKP..LHD199310-199710

DK. BLUE,TRIM8#

main58904-20030-B1iAT190,CT190,ST191..UKP..RHD199405-199412

SHADOW GRAY,TRIM1#

sub58904-20030

main58904-20030-C0iAT190,ST191..UKP..RHD199212-199405

BLACK,TRIM2#

sub58904-20030

main58904-20030-J0iAT190,CT190,ST191..UKP..RHD199212-199412

DK.BLUE,TRIM8#

sub58904-20030

main58904-20040-B0iAT190,CT190,ST191..UKP..LHD199405-199412

SHADOW GRAY,TRIM1#

sub58904-20040

main58904-20040-C0iAT190,ST191..UKP..LHD199212-199405

BLACK,TRIM2#

sub58904-20040

main58904-20040-J0iAT190,CT190,ST191..UKP..LHD199212-199412

DK.BLUE,TRIM8#

sub58904-20040

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-05010iAT19#,CT190,ST191..UKP199308-199710

RH

main58964-12040iAT190,CT190,ST191..UKP199308-199412

RH

main58965-05010iAT19#,CT190,ST191..UKP199308-199710

LH

main58965-12040iAT190,ST191..UKP..(LB,SED)199212-199601

LH

58976STRIKER, CONSOLE COMPARTMENT DOOR LOCK

main58976-20020iAT19#,CT190,ST191..UKP199212-199710

58985RETAINER, CONSOLE BOX

main58985-20050iAT190,ST191..UKP..LHD199212-199710

7404

9018305094

main90183-05094

9046804157

main90468-04157

9054104024

main90541-04024

9166540616

main91665-40616

9356754512

main93567-54512

9356755016

main93567-55016

21 parts on this diagram · 1 diagram in section
