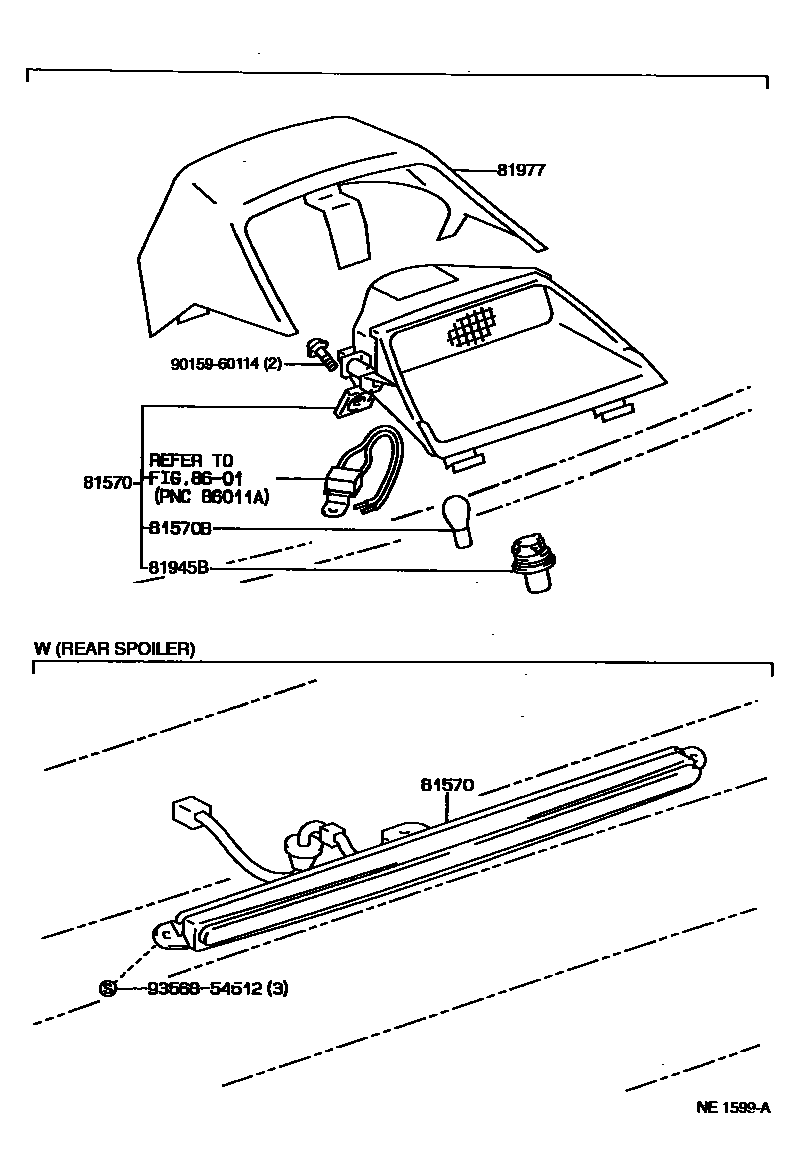

Toyota CARINA E (UKP) — CENTER STOP LAMP

0001 1 0002 1 0003 1

81570LAMP ASSY, CENTER STOP

main81570-05010-C0iAT19#,CT190,ST191..UKP..SED199601-199710

BLACK,TRIM1#,8#

main81570-05020iAT19#,CT190,ST191..UKP..LB199601-199710

main81570-05030-C0iAT19#,CT190,ST191..UKP..WG199601-199710

BLACK,TRIM1#,8#

main81570-20181iAT19#,CT190,ST191..UKP..SED..GL199601-199710

W(REAR SPOILER)

main81570-20211iAT19#,CT190,ST191..UKP..LB..GL199601-199710

W(REAR SPOILER)

81570BBULB (FOR CENTER STOP LAMP)

main90080-81035iAT19#,CT190,ST191..UKP199601-199710

12V 21W

81945BSOCKET, STOP CENTER LAMP BULB

main81945-05010iAT19#,CT190,ST191..UKP..(SED,WG)199601-199710

sub81576-05050

main81945-05020iAT19#,CT190,ST191..UKP..LB199601-199710

81977COVER, CENTER STOP LAMP

main81977-05010-B0iAT19#,CT190,ST191..UKP..SED199601-199710

SHADOW GRAY,TRIM1#

main81977-05010-J0iAT19#,CT190,ST191..UKP..SED199601-199710

DK.BLUE,TRIM8#

main81977-05020-B0iAT19#,CT190,ST191..UKP..LB199601-199710

SHADOW GRAY,TRIM1#

main81977-05020-J0iAT19#,CT190,ST191..UKP..LB199601-199710

DK. BLUE,TRIM8#

main81977-05030-C0iAT19#,CT190,ST191..UKP..WG199601-199710

BLACK,TRIM1#,8#

8601

9015960114

main90159-60114

9356854512

main93568-54512

7 parts on this diagram · 3 diagrams in section
