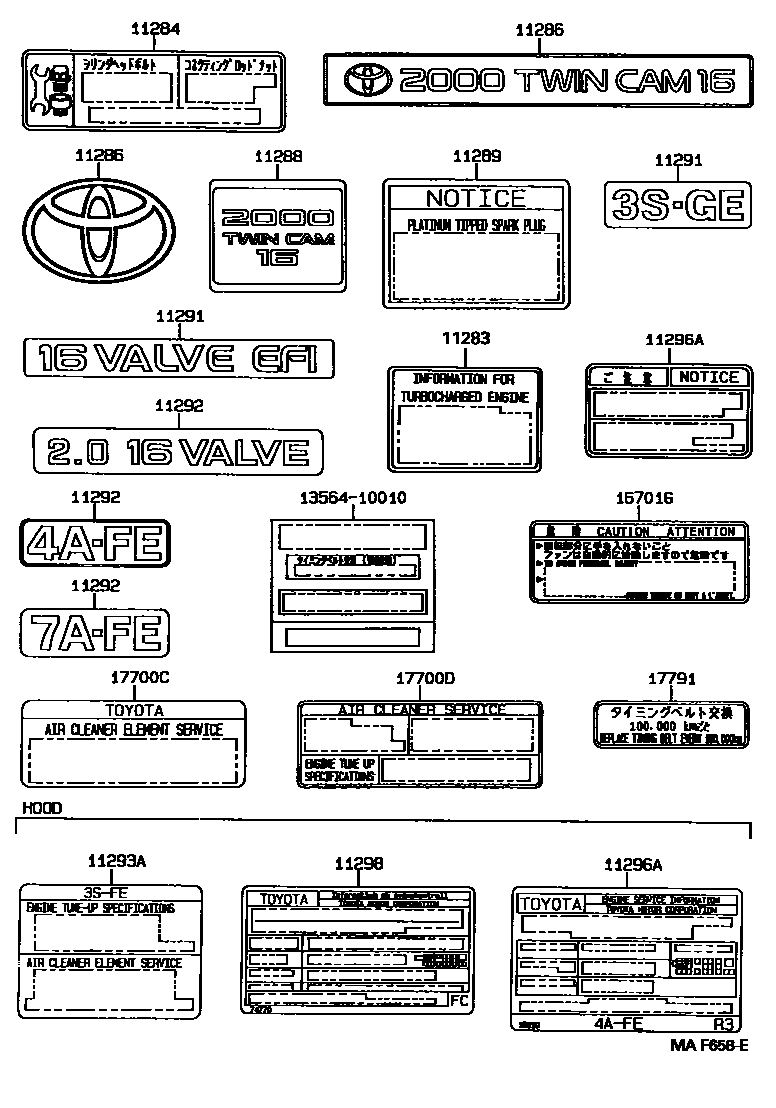

Toyota CARINA E (UKP) — CAUTION PLATE & NAME PLATE (ENGINE)

11283PLATE, TURBOCHARGER CAUTION

main11294-0B010i2CT..CT190..UKP199601-199710

11284PLATE, ENGINE BOLT INFORMATION

main11284-16060i4AFE..AT190..UKP199212-199311

main11284-74040i3SFE..ST191..UKP199305-199403

main11284-74050i3SFE..ST191..UKP199212-199305

sub11284-74040

11286PLATE, ENGINE SPECIFICATION

11288PLATE, ENGINE SYSTEM

11289PLATE, SPARK PLUG CAUTION

main11289-73020i4AFE,7AFE..AT19#..UKP..MTM199212-199604

11291PLATE, ENGINE NAME

main11291-16080i4AFE,7AFE..AT19#..UKP199212-199506

main11291-64050i2CT..CT190..UKP199601-199710

main11291-74070i3SFE..ST191..UKP199212-199710

11292PLATE, ENGINE NAME, NO.2

main11292-16020i4AFE..AT190..UKP199212-199710

main11292-16030i7AFE..AT191..UKP199412-199710

main11292-74100i3SFE..ST191..UKP199212-199305

sub11292-74101

main11292-74101i3SFE..ST191..UKP199305-199601

11293APLATE, ENGINE CAUTION

main11293-74130i3SFE..ST191..UKP199212-199710

11296ALABEL, ENGINE SERVICE INFORMATION

main11296-02030i4AFE..AT190..UKP199308-199412

main11296-02060i4AFE,7AFE..AT19#..UKP199412-199710

main11296-16210i4AFE..AT190..UKP199212-199308

main11296-64010i2C#..CT190..UKP199410-199710

11298PLATE, EMISSION CONTROL INFORMATION

main11298-02070i4AFE..AT190..UKP..LHD..(LB,SED)199412-199601

FINLAND SPEC

main11298-02070i4AFE..AT190..UKP..LHD199308-199412

NORWAY SPEC OR FINLAND SPEC

main11298-02090i4AFE..AT190..UKP..LHD..SED..MTM..XL199311-199412

SWEDEN SPEC

main11298-02100i4AFE..AT190..UKP..LHD..WG..XL199505-199507

SWEDEN OR FINLAND SPEC

main11298-02100i4AFE..AT190..UKP..LHD..SED..MTM..XL199412-199507

SWEDEN SPEC

main11298-02100i4AFE..AT190..UKP..WG..GL199505-199601

FINLAND SPEC

main11298-02110i7AFE..AT191..UKP..LHD199412-199507

SWEDEN OR FINLAND SPEC

main11298-02110i7AFE..AT191..UKP..LHD199507-199601

FINLAND SPEC

main11298-0B010i2C..CT190..UKP..LHD199410-199601

NORWAY SPEC OR FINLAND SPEC

main11298-1A460i4AFE..AT190..UKP..LHD199212-199412

NORWAY SPEC OR FINLAND SPEC

main11298-7A010i3SFE..ST191..UKP..LHD199212-199601

NORWAY SPEC OR SWEDEN SPEC OR FINLAND SPEC

16701GLABEL, CAUTION

main88596-05010i4AFE,7AFE,2CT,3SFE..AT19#,CT190,ST191..UKP199308-199710

BOSCH

main88723-12100i3SFE..ST191..UKP..LHD..SED..ATM199612-199710

ISRAEL & TURKEY OR ISRAEL SPEC

main88723-12100i3SFE..ST191..UKP..LHD..SED..ATM199612-199710

LATIN AMERICA OR BRAZIL SPEC;ISRAEL & TURKEY OR ISRAEL SPEC

main88723-12100i4AFE..AT190..UKP199302-199601

main88723-12100i3SFE..ST191..UKP199302-199312

NIPPONDENSO

main88723-12100i3SFE..ST191..UKP..LHD..SED..ATM199601-199612

LATIN AMERICA OR BRAZIL SPEC;ISRAEL & TURKEY SPEC

17700CPLATE, AIR CLEANER CAUTION (FOR ENGINE MODEL)

main17791-74010i3SFE..ST191..UKP..LHD199212-199601

NORWAY SPEC OR SWEDEN SPEC OR FINLAND SPEC

17700DPLATE, ENGINE CAUTION

main11296-55020i2C#..CT190..UKP199410-199604

main11296-64040i2CT..CT190..UKP199604-199710

17791LABEL, MAINTENANCE INFORMATION

main17791-55010i2C#..CT190..UKP199410-199710

1356410010LABEL, TIMING BELT REPLACEMENT INFORMATION

main13564-10010

15 parts on this diagram · 1 diagram in section
