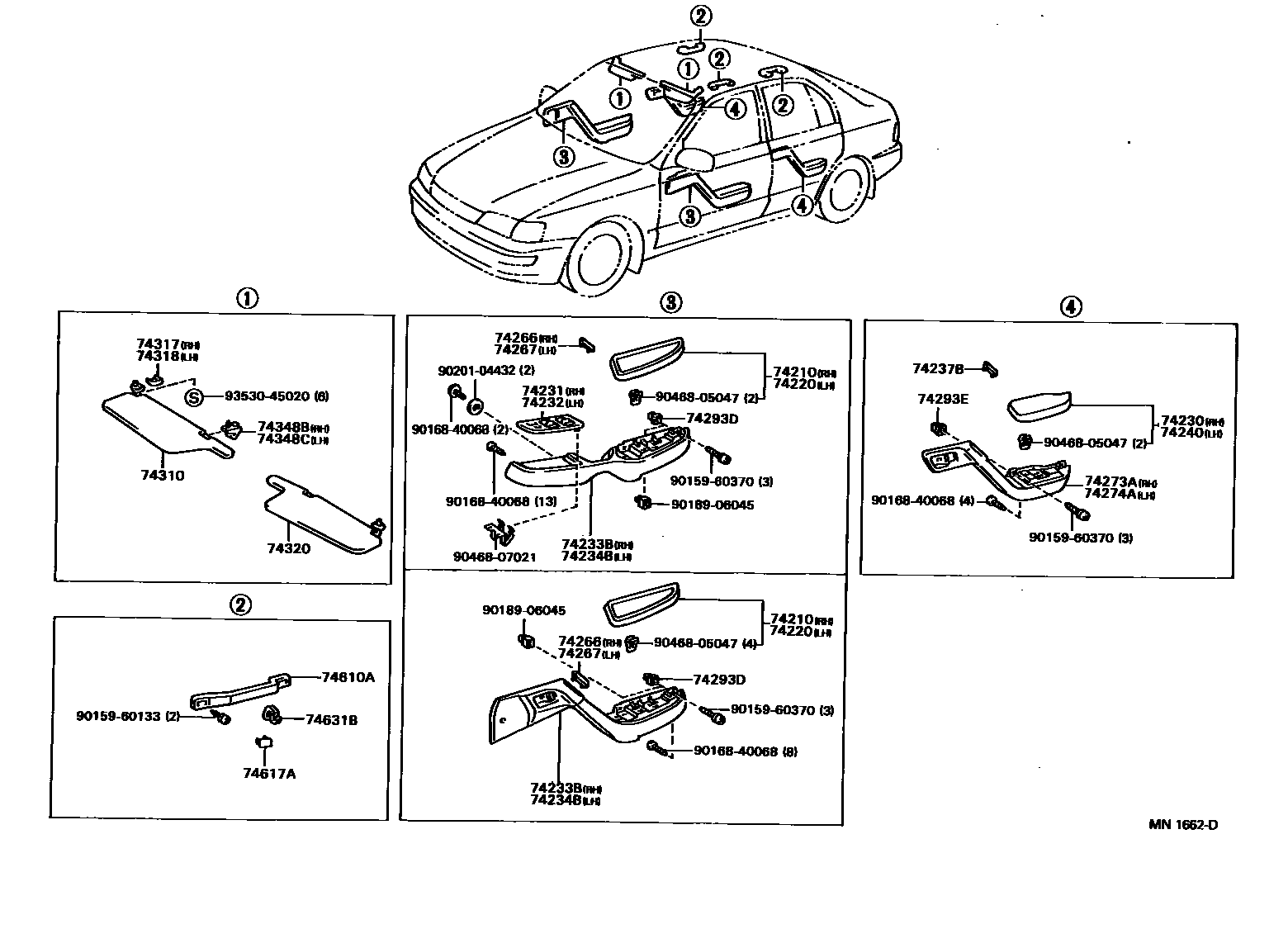

Toyota CARINA E (UKP) — ARMREST & VISOR

0001 1 0002 1

74210ARMREST ASSY, FRONT, RH

main74210-05010-B0iAT19#,CT190,ST191..UKP199405-199601

SHADOW GRAY,TRIM1#

main74210-05010-C0iAT190,ST191..UKP199308-199405

BLACK,TRIM2#

main74210-05010-J0iAT19#,CT190,ST191..UKP199308-199601

DK. BLUE,TRIM8#

main74210-20220-C0iAT190,ST191..UKP199212-199308

BLACK,TRIM2#

sub74210-20220

main74210-20220-J0iAT190,ST191..UKP199212-199308

DK.BLUE,TRIM8#

sub74210-20220

74220ARMREST ASSY, FRONT, LH

main74220-05010-B0iAT19#,CT190,ST191..UKP199405-199601

SHADOW GRAY,TRIM1#

main74220-05010-C0iAT190,ST191..UKP199308-199405

BLACK,TRIM2#

main74220-05010-J0iAT19#,CT190,ST191..UKP199308-199601

DK. BLUE,TRIM8#

main74220-20220-C0iAT190,ST191..UKP199212-199308

BLACK,TRIM2#

sub74220-20220

main74220-20220-J0iAT190,ST191..UKP199212-199308

DK.BLUE,TRIM8#

sub74220-20220

74230ARMREST ASSY, REAR, RH

main74250-05010-B0iAT19#,CT190,ST191..UKP199405-199601

SHADOW GRAY,TRIM1#

main74250-05010-C0iAT190,ST191..UKP199308-199405

BLACK,TRIM2#

main74250-05010-J0iAT19#,CT190,ST191..UKP199308-199601

DK. BLUE,TRIM8#

main74250-20130-C0iAT190,ST191..UKP199212-199308

BLACK,TRIM2#

main74250-20130-J0iAT190,ST191..UKP199212-199308

DK.BLUE,TRIM8#

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-05010-C0iAT190,ST191..UKP..RHD199405-199601

BLACK,TRIM1#,8#

main74231-05010-C0iAT190,ST191..UKP..RHD199308-199405

BLACK,TRIM2#,8#

main74231-05010-C0iAT19#,CT190,ST191..UKP..RHD199601-199710

W(FR-POWER WINDOW RR-POWER WINDOW),BLACK,TRIM1#,8#

main74231-05020-C0iAT19#,CT190,ST191..UKP..RHD..GL199601-199710

W(FR-POWER WINDOW RR-MANUAL WINDOW),BLACK,TRIM1#,8#

main74231-05020-C0iAT19#,CT190..UKP..RHD..XL199601-199710

BLACK,TRIM1#,8#

main74231-20270-C0iAT190,ST191..UKP..RHD199212-199308

BLACK,TRIM2#,8#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-05010-C0iAT190,ST191..UKP..LHD199308-199405

BLACK,TRIM2#,8#

main74232-05010-C0iAT19#,ST191..UKP..LHD199405-199601

BLACK,TRIM1#,8#

main74232-05010-C0iAT19#,CT190,ST191..UKP..LHD199601-199710

W(FR-POWER WINDOW RR-POWER WINDOW),BLACK,TRIM1#,8#

main74232-05020-C0iAT19#,CT190..UKP..LHD..XL199601-199710

W(FR-POWER WINDOW RR-MANUAL WINDOW),BLACK,TRIM1#,8#

main74232-05020-C0iAT19#,CT190,ST191..UKP..LHD..GL199601-199710

BLACK,TRIM1#,8#

main74232-05030iAT19#,CT190,ST191..UKP..LHD..GL199611-199710

BYZANTINE GRAIN & W(FR-POWER WINDOW RR-POWER WINDOW)

main74232-05040iAT19#,CT190..UKP..LHD..XL199611-199710

BYZANTINE GRAIN

main74232-05040iAT19#,CT190,ST191..UKP..LHD..GL199611-199710

BYZANTINE GRAIN & W(FR-POWER WINDOW RR-MANUAL WINDOW)

main74232-20230-C0iAT190,ST191..UKP..LHD199212-199308

BLACK,TRIM2#,8#

main74232-20230-J0iAT190..UKP..LHD..XL199212-199308

DK.BLUE,TRIM8#

74233BPANEL, FRONT DOOR ARMREST BASE, LOWER RH

main74233-05010-B0iCT190..UKP..RHD..LB199405-199601

SHADOW GRAY,TRIM1#

main74233-05010-B0iAT19#,ST191..UKP..GL;AT190,CT190..UKP..(LB,SED)..XL199405-199601

SHADOW GRAY,TRIM1#,8#

main74233-05010-C0iAT190..UKP..RHD..SED..XL199308-199405

BLACK,TRIM2#

main74233-05010-J0iCT190..UKP..RHD..SED199308-199601

DK. BLUE,TRIM8#

main74233-05020-B0iAT191..UKP..RHD..SED199405-199601

W(POWER WINDOW),SHADOW GRAY,TRIM1#

main74233-05020-C0iAT190,ST191..UKP..RHD199308-199402

W(POWER WINDOW),BLACK,TRIM2#

main74233-05020-J0iAT190,CT190,ST191..UKP..RHD199308-199601

W(POWER WINDOW),DARK BLUE,TRIM8#

main74233-05030-B0iAT19#,CT190..UKP..RHD..XL199601-199710

SHADOW GRAY,TRIM1#

main74233-05030-B0iAT19#,CT190..UKP..RHD..XL199611-199705

W(POWER WINDOW),SHADOW GRAY,TRIM1#

main74233-05030-J0iAT19#,CT190,ST191..UKP..RHD199601-199710

DK.BLUE,TRIM8#

main74233-05030-J0iAT19#,CT190..UKP..RHD..XL199611-199705

W(POWER WINDOW),DK.BLUE,TRIM8#

main74233-20120-C0iAT190,ST191..UKP199212-199308

BLACK,TRIM2#

sub74233-20120

main74233-20120-J0iAT190,ST191..UKP199212-199308

DK.BLUE,TRIM8#

sub74233-20120

main74233-20130-C0iAT190,ST191..UKP..RHD199212-199308

W(POWER WINDOW),BLACK,TRIM2#

sub74233-20130

main74233-20130-J0iAT190,ST191..UKP..RHD199212-199308

W(POWER WINDOW),DK.BLUE,TRIM8#

sub74233-20130

74234BPANEL, FRONT DOOR ARMREST BASE, LOWER LH

main74234-05010-B0iCT190..UKP..LHD..SED199410-199601

XL LUXURY PACKAGE-*99,SHADOW GRAY,TRIM1#

main74234-05010-B0iST191..UKP;AT190..UKP..RHD;AT190..UKP..LHD..XL199405-199601

SHADOW GRAY,TRIM1#

main74234-05010-C0iAT190,ST191..UKP199308-199405

BLACK,TRIM2#

main74234-05010-J0iCT190..UKP..LHD..LB199410-199601

XL LUXURY PACKAGE-*99,DK. BLUE,TRIM8#

main74234-05010-J0iAT191..UKP..WG;AT191..UKP..RHD;AT190,CT190,ST191..UKP199308-199601

DK. BLUE,TRIM8#

main74234-05020-B0iAT191..UKP..LHD..(LB,SED)199405-199601

W(POWER WINDOW),SHADOW GRAY,TRIM1#

main74234-05020-B0iAT190..UKP..LHD..GL199405-199407

SHADOW GRAY,TRIM1#

main74234-05020-C0iAT190,ST191..UKP..LHD199308-199405

W(POWER WINDOW),BLACK,TRIM2#

main74234-05020-J0iAT191..UKP..LHD..(LB,SED)199407-199601

W(POWER WINDOW),DK.BLUE,DK. BLUE,TRIM8#

main74234-05020-J0iAT190..UKP..LHD..GL199405-199407

DK. BLUE,TRIM8#

main74234-05020-J0iAT19#..UKP..LHD..WG;CT190,ST191..UKP..LHD;AT190..UKP..LHD..(LB,SED)..XL199308-199601

W(POWER WINDOW),DK. BLUE,TRIM8#

main74234-05030-B0iAT19#,CT190,ST191..UKP..LHD..GL199601-199710

SHADOW GRAY,TRIM1#

main74234-05030-B0iAT19#,CT190..UKP..LHD..XL199611-199705

W(POWER WINDOW),SHADOW GRAY,TRIM1#

main74234-05030-J0iAT19#,CT190,ST191..UKP..LHD199601-199710

DK.BLUE,TRIM8#

main74234-05030-J0iAT19#,CT190,ST191..UKP..LHD..GL199611-199705

W(POWER WINDOW),DK.BLUE,TRIM8#

main74234-20120-C0iAT190,ST191..UKP..LHD199212-199308

W(POWER WINDOW),BLACK,TRIM2#

sub74234-20120

main74234-20120-J0iAT190,ST191..UKP..LHD199212-199308

W(POWER WINDOW),DK.BLUE,TRIM8#

sub74234-20120

main74234-20130-C0iAT190,ST191..UKP199212-199308

BLACK,TRIM2#

sub74234-20130

main74234-20130-J0iAT190,ST191..UKP199212-199308

DK.BLUE,TRIM8#

sub74234-20130

74237BCAP, DOOR ARMREST BASE

main74237-05010-B0iST191..UKP;AT190..UKP..RHD;AT190..UKP..LHD..XL199405-199601

SHADOW GRAY,TRIM1#

main74237-05010-C0iAT190,ST191..UKP199308-199405

BLACK,TRIM2#

main74237-05010-C0iAT19#,CT190,ST191..UKP199601-199710

BLACK,TRIM1#,8#

main74237-05010-J0iAT190,ST191..UKP199308-199601

DK. BLUE,TRIM8#

main74237-20040-C0iAT190,ST191..UKP199212-199308

BLACK,TRIM2#

sub74237-20040

main74237-20040-J0iAT190,ST191..UKP199212-199308

DK.BLUE,TRIM8#

sub74237-20040

74240ARMREST ASSY, REAR, LH

main74260-05010-B0iAT19#,CT190,ST191..UKP199405-199601

SHADOW GRAY,TRIM1#

main74260-05010-C0iAT190,ST191..UKP199308-199405

BLACK,TRIM2#

main74260-05010-J0iAT19#,CT190,ST191..UKP199308-199601

DK. BLUE,TRIM8#

main74260-20080-C0iAT190,ST191..UKP199212-199308

BLACK,TRIM2#

main74260-20080-J0iAT190,ST191..UKP199212-199308

DK.BLUE,TRIM8#

74266CAP, DOOR ARMREST, RH

main74266-05010-B0iAT190..UKP..XL;ST191..UKP..LHD199405-199710

SHADOW GRAY,TRIM1#

main74266-05010-C0iAT190..UKP..LHD..XL;AT190,ST191..UKP..RHD199308-199405

BLACK,TRIM2#

main74266-05010-J0iAT190..UKP..XL;ST191..UKP..LHD199308-199710

DK. BLUE,TRIM8#

main74266-20070-C0iAT190..UKP..LHD..XL;AT190,ST191..UKP..RHD199212-199308

BLACK,TRIM2#

sub74266-20070

main74266-20070-J0iAT190..UKP..LHD..XL;AT190,ST191..UKP..RHD199212-199308

DK.BLUE,TRIM8#

sub74266-20070

74267CAP, DOOR ARMREST, LH

main74266-05010-B0iAT190,CT190..UKP..XL199405-199710

SHADOW GRAY,TRIM1#

main74266-05010-C0iAT190..UKP..XL;AT190,ST191..UKP..LHD..GL199308-199405

BLACK,TRIM2#

main74266-05010-J0iCT190..UKP;AT19#..UKP..WG;ST191..UKP..LHD;AT190..UKP..(LB,SED)..XL;AT190..UKP..LHD..(LB,SED)..GL199308-199710

DK. BLUE,TRIM8#

main74266-20070-C0iAT190..UKP..XL;AT190,ST191..UKP..LHD..GL199212-199308

BLACK,TRIM2#

sub74266-20070

main74266-20070-J0iAT190..UKP..XL;AT190,ST191..UKP..LHD..GL199212-199308

DK.BLUE,TRIM8#

sub74266-20070

74273APANEL, REAR DOOR ARMREST BASE, LOWER RH

main74273-05010-B0iAT19#,CT190,ST191..UKP199405-199601

SHADOW GRAY,TRIM1#

main74273-05010-C0iAT190,ST191..UKP199308-199405

BLACK,TRIM2#

main74273-05010-J0iAT19#,CT190,ST191..UKP199308-199601

DK. BLUE,TRIM8#

main74273-20060-C0iAT190,ST191..UKP199212-199308

BLACK,TRIM2#

sub74273-20060

main74273-20060-J0iAT190,ST191..UKP199212-199308

DK.BLUE,TRIM8#

sub74273-20060

74274APANEL, REAR DOOR ARMREST BASE, LOWER LH

main74274-05010-B0iAT19#,CT190,ST191..UKP199405-199601

SHADOW GRAY,TRIM1#

main74274-05010-C0iAT190,ST191..UKP199308-199405

BLACK,TRIM2#

main74274-05010-J0iAT19#,CT190,ST191..UKP199308-199601

DK. BLUE,TRIM8#

main74274-20050-C0iAT190,ST191..UKP199212-199308

BLACK,TRIM2#

sub74274-20050

main74274-20050-J0iAT190,ST191..UKP199212-199308

DK.BLUE,TRIM8#

sub74274-20050

74293DPLATE, FRONT DOOR ARMREST, NO.1

main74293-32010iAT19#,CT190,ST191..UKP199212-199710

74293EPLATE, REAR DOOR ARMREST, NO.1

main74293-32010iAT19#,CT190,ST191..UKP199212-199710

74310VISOR ASSY, RH

main74310-05010-B0iAT190,ST191..UKP..RHD199212-199405

GRAY,TRIM2#,8#

main74310-05010-B0iAT19#,CT190,ST191..UKP..RHD199405-199601

GRAY,TRIM1#,8#

main74310-05010-B0iAT19#,CT190,ST191..UKP..RHD199601-199710

W/O(*80),GRAY,GRAY,TRIM1#,8#

main74310-05020-B0iAT19#,CT190,ST191..UKP..LHD199405-199710

GRAY,TRIM1#,8#

main74310-05020-B0iAT190,ST191..UKP..LHD199212-199405

GRAY,TRIM2#,8#

main74310-05030-B0iAT19#,CT190,ST191..UKP..RHD199601-199710

W(MOON ROOF) & W/O(*80),GRAY,GRAY,TRIM1#,8#

main74310-05030-B0iAT190,ST191..UKP..RHD199212-199405

W(MOON ROOF),GRAY,TRIM2#,8#

main74310-05030-B0iAT19#,CT190,ST191..UKP..RHD199405-199601

W(MOON ROOF),GRAY,TRIM1#,8#

main74310-05040-B0iAT190,ST191..UKP..LHD199212-199405

W(MOON ROOF),GRAY,TRIM2#,8#

main74310-05040-B0iAT19#,CT190,ST191..UKP..LHD199405-199710

W(MOON ROOF),GRAY,TRIM1#,8#

main74310-05050-B0iAT19#,CT190,ST191..UKP..RHD199405-199601

W(*80),GRAY,TRIM1#,8#

main74310-05050-B0iAT190,ST191..UKP..RHD199212-199405

W(*80),GRAY,TRIM2#,8#

main74310-05060-B0iAT190,ST191..UKP..RHD199212-199405

W(MOON ROOF & *80),GRAY,TRIM2#,8#

main74310-05060-B0iAT19#,CT190,ST191..UKP..RHD199405-199601

W(MOON ROOF & *80),GRAY,TRIM1#,8#

main74310-05070-B0iAT19#,CT190,ST191..UKP..RHD199601-199609

MEDIUM GRAY,TRIM1#,8#

sub74310-05130

main74310-05080-B0iAT19#,CT190,ST191..UKP..RHD199601-199609

W(MOON ROOF),MEDIUM GRAY,TRIM1#,8#

sub74310-05140

main74310-05130-B0iAT19#,CT190,ST191..UKP..RHD199609-199710

W(*80),MEDIUM GRAY,MEDIUM GRAY,TRIM1#,8#

main74310-05140-B0iAT19#,CT190,ST191..UKP..RHD199609-199710

W(MOON ROOF & *80),MEDIUM GRAY,MEDIUM GRAY,TRIM1#,8#

74317COVER, VISOR BRACKET, RH

main74317-05010-B0iAT19#,CT190,ST191..UKP199405-199710

GRAY,TRIM1#,8#

main74317-05010-B0iAT190,ST191..UKP199212-199405

GRAY,TRIM2#,8#

74318COVER, VISOR BRACKET, LH

main74317-05010-B0iAT190,ST191..UKP199212-199405

GRAY,TRIM2#,8#

main74317-05010-B0iAT19#,CT190,ST191..UKP199405-199710

GRAY,TRIM1#,8#

74320VISOR ASSY, LH

main74320-05010-B0iAT190,ST191..UKP..RHD199212-199405

GRAY,TRIM2#,8#

main74320-05010-B0iAT19#,CT190,ST191..UKP..RHD199405-199710

GRAY,TRIM1#,8#

main74320-05020-B0iST191..UKP..LHD..SED199601-199605

ISRAEL OR TURKEY SPEC,GRAY,TRIM1#,8#

main74320-05020-B0iAT190,ST191..UKP..LHD199212-199405

GRAY,TRIM2#,8#

main74320-05020-B0iAT19#,CT190,ST191..UKP..LHD199405-199605

GRAY,TRIM1#,8#

main74320-05020-B0iAT19#,CT190,ST191..UKP..LHD199605-199710

W/O(*80),GRAY,GRAY,TRIM1#,8#

main74320-05030-B0iAT190,ST191..UKP..RHD199212-199405

W(MOON ROOF),GRAY,TRIM2#,8#

main74320-05030-B0iAT19#,CT190,ST191..UKP..RHD199405-199710

W(MOON ROOF),GRAY,TRIM1#,8#

main74320-05040-B0iAT19#,CT190,ST191..UKP..LHD199605-199710

W(MOON ROOF) & W/O(*80),GRAY,GRAY,TRIM1#,8#

main74320-05040-B0iAT19#,CT190,ST191..UKP..LHD199405-199605

W(MOON ROOF),GRAY,TRIM1#,8#

main74320-05040-B0iST191..UKP..LHD..SED199601-199605

W(MOON ROOF);ISRAEL OR TURKEY SPEC & W(MOON ROOF),GRAY,TRIM1#,8#

main74320-05040-B0iAT190,ST191..UKP..LHD199212-199405

W(MOON ROOF),GRAY,TRIM2#,8#

main74320-05050-B0iAT19#,CT190,ST191..UKP..LHD199405-199601

W(*80),GRAY,TRIM1#,8#

main74320-05050-B0iAT190,ST191..UKP..LHD199212-199405

W(*80),GRAY,TRIM2#,8#

main74320-05060-B0iAT190,ST191..UKP..LHD199212-199405

W(MOON ROOF & *80),GRAY,TRIM2#,8#

main74320-05060-B0iAT19#,CT190,ST191..UKP..LHD199405-199601

W(MOON ROOF & *80),GRAY,TRIM1#,8#

main74320-05070-B0iAT19#,CT190,ST191..UKP..LHD199601-199609

MEDIUM GRAY,TRIM1#,8#

sub74320-05130

main74320-05080-B0iAT19#,CT190,ST191..UKP..LHD199601-199609

W(MOON ROOF),MEDIUM GRAY,TRIM1#,8#

sub74320-05140

main74320-05130-B0iAT19#,CT190,ST191..UKP..LHD199609-199710

W(*80),MEDIUM GRAY,MEDIUM GRAY,TRIM1#,8#

main74320-05140-B0iAT19#,CT190,ST191..UKP..LHD199609-199710

W(MOON ROOF & *80),MEDIUM GRAY,MEDIUM GRAY,TRIM1#,8#

74348BHOLDER, VISOR, RH

main74348-05010-B0iAT190,ST191..UKP199308-199405

GRAY,TRIM2#,8#

main74348-05010-B0iAT19#,CT190,ST191..UKP199405-199710

GRAY,TRIM1#,8#

main74348-20030-B0iAT190,ST191..UKP199212-199308

GRAY,TRIM2#,8#

sub74348-33030

74348CHOLDER, VISOR, LH

main74348-05010-B0iAT190,ST191..UKP199308-199405

GRAY,TRIM2#,8#

main74348-05010-B0iAT19#,CT190,ST191..UKP199405-199710

GRAY,TRIM1#,8#

main74348-20030-B0iAT190,ST191..UKP199212-199308

GRAY,TRIM2#,8#

sub74348-33030

74610AGRIP SUB-ASSY, ASSIST

main74610-05010-B0iAT19#,CT190,ST191..UKP199405-199710

GRAY,TRIM1#,8#

main74610-05010-B0iAT190,ST191..UKP199308-199405

GRAY,TRIM2#,8#

main74610-32020-B1iAT190,ST191..UKP199212-199308

GRAY,TRIM2#,8#

sub74610-32020

sub74610-35012

74617APLUG, ASSIST GRIP

main74617-05010-B0iAT19#,CT190,ST191..UKP199405-199710

GRAY,TRIM1#,8#

main74617-05010-B0iAT190,ST191..UKP199308-199405

GRAY,TRIM2#,8#

main74617-16010-B4iAT190,ST191..UKP199212-199308

GRAY,TRIM2#,8#

sub74617-16010

74631BHOOK, COAT

main74631-05010-B0iAT19#,CT190,ST191..UKP199405-199710

GRAY,TRIM1#,8#

main74631-05010-B0iAT190,ST191..UKP199308-199405

GRAY,TRIM2#,8#

main74631-32020-B1iAT190,ST191..UKP199212-199308

GRAY,TRIM2#,8#

sub74631-32020

9015960133

main90159-60133

9015960370

main90159-60370

9016840068

main90168-40068

9018906045

main90189-06045

9020104432

main90201-04432

9046805047

main90468-05047

9046807021

main90468-07021

9353045020

main93530-45020

32 parts on this diagram · 2 diagrams in section
