Toyota CARINA 2 — PARTIAL ENGINE ASSEMBLY

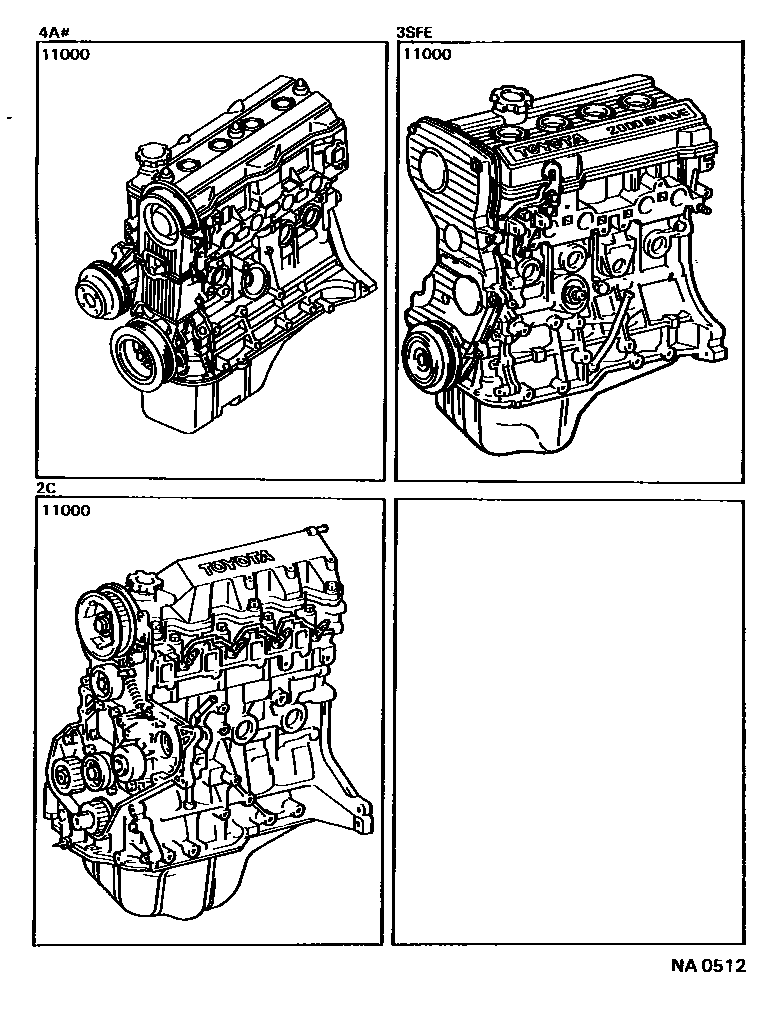

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-16420i198712-198908

ANNEX 25,23

main19000-16421i198908-198911

ANNEX 25,23

main19000-16430i198712-198908

main19000-16431i198908-198911

main19000-16490i198712-198908

main19000-16491i198908-199211

main19000-16501i198908-198909

SINGAPORE SPEC

main19000-16600i198712-198908

main19000-16601i198908-198911

main19000-16790i198911-199211

main19000-16920i198911-199001

ANNEX 23

main19000-1A030i199001-199211

ANNEX 23

main19000-64410i198712-198808

main19000-64540i198808-199008

main19000-64541i199008-199110

main19000-64542i199110-199211

main19000-74101i198712-198906

main19000-74102i198906-198907

main19000-74104i198907-199005

main19000-74106i199005-199203

main19000-74190i198712-198906

main19000-74191i198906-198907

main19000-74193i198907-199005

main19000-74195i199005-199203

1 parts on this diagram · 1 diagram in section

PARTIAL ENGINE ASSEMBLY for Toyota CARINA 2

This section contains 1 genuine Toyota parts for the PARTIAL ENGINE ASSEMBLY system of the Toyota CARINA 2. Key components include: ENGINE ASSY, PARTIAL.
