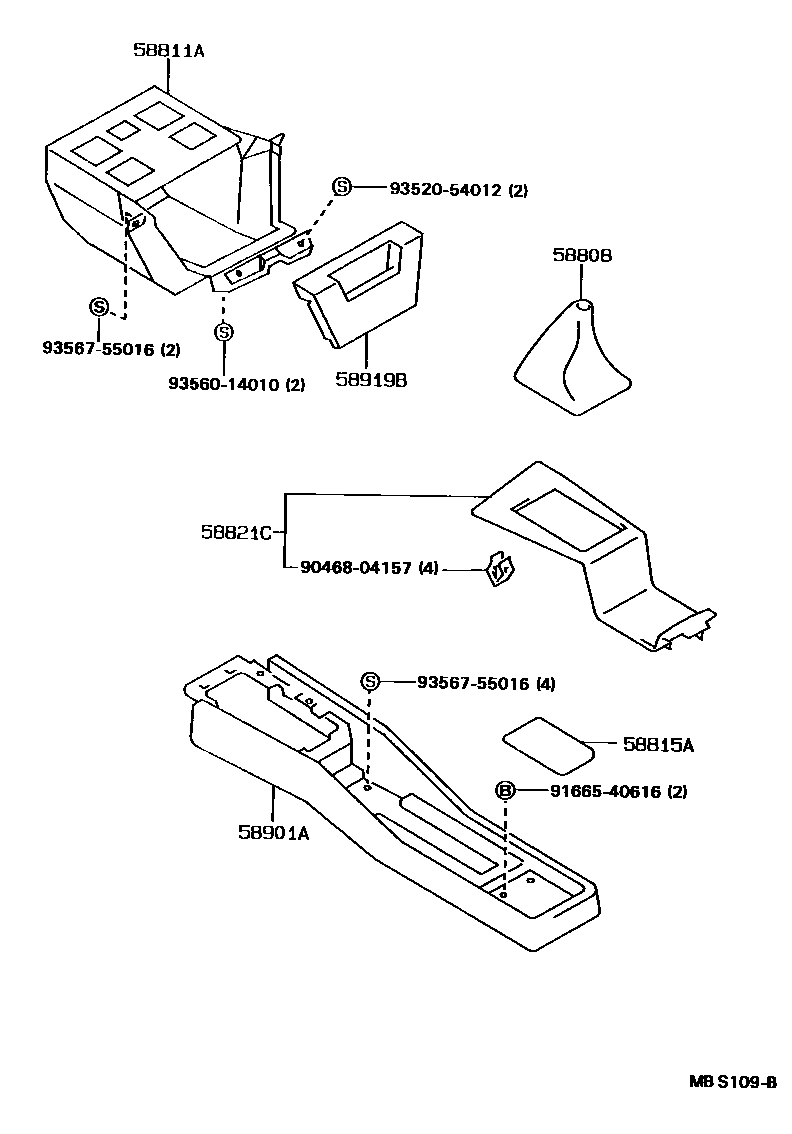

Toyota CARINA 2 — CONSOLE BOX & BRACKET

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-20060-03i198712-199211

GRAY,TRIM1#

main58808-20060-04i198712-198911

BLUE,TRIM8#

main58808-20060-06i198712-199203

SABLE,TRIM4#

main58808-20060-14i198911-199211

DARK BLUE,TRIM8#

58811ABOX, CONSOLE, FRONT

main58811-20260i198712-199211

58815ACARPET, CONSOLE BOX

main58815-20010i198712-198806

main58815-20011-03i198806-199211

GRAY,TRIM1#

main58815-20011-04i198806-198911

BLUE,TRIM8#

main58815-20011-06i198806-199203

SABLE,TRIM4#

main58815-20011-14i198911-199211

DARK BLUE,TRIM8#

58821CPANEL, CONSOLE, UPPER

main58821-20100-03i198712-199211

GRAY,TRIM1#

main58821-20100-04i198712-198911

BLUE,TRIM8#

main58821-20100-06i198712-199203

SABLE,TRIM4#

main58821-20100-14i198911-199211

DARK BLUE,TRIM8#

main58821-20110-03i198712-199211

GRAY,TRIM1#

main58821-20110-04i198712-198911

BLUE,TRIM8#

main58821-20110-06i198712-199203

SABLE,TRIM4#

main58821-20110-14i198911-199211

DARK BLUE,TRIM8#

58901ABOX SUB-ASSY, CONSOLE, REAR

main58911-20090-03i198712-199211

GRAY,TRIM1#

main58911-20090-04i198712-198911

BLUE,TRIM8#

main58911-20090-06i198712-199203

SABLE,TRIM4#

main58911-20090-14i198911-199211

DARK BLUE,TRIM8#

58919BPLATE, CONSOLE BOX

main58919-20020-03i198712-199211

GRAY,TRIM1#

main58919-20020-04i198712-198911

BLUE,TRIM8#

main58919-20020-06i198712-199203

SABLE,TRIM4#

main58919-20020-14i198911-199211

DARK BLUE,TRIM8#

main58919-20030-03i198712-199211

GRAY,TRIM1#

main58919-20030-04i198712-198911

BLUE,TRIM8#

main58919-20030-06i198712-199203

SABLE,TRIM4#

main58919-20030-14i198911-199211

DARK BLUE,TRIM8#

9046804157

main90468-04157

9166540616

main91665-40616

9352054012

main93520-54012

9356014010

main93560-14010

9356755016

main93567-55016

11 parts on this diagram · 1 diagram in section

CONSOLE BOX & BRACKET for Toyota CARINA 2

This section contains 11 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota CARINA 2. Key components include: COVER SUB-ASSY, SHIFTING HOLE, BOX, CONSOLE, FRONT, CARPET, CONSOLE BOX, PANEL, CONSOLE, UPPER, BOX SUB-ASSY, CONSOLE, REAR.
