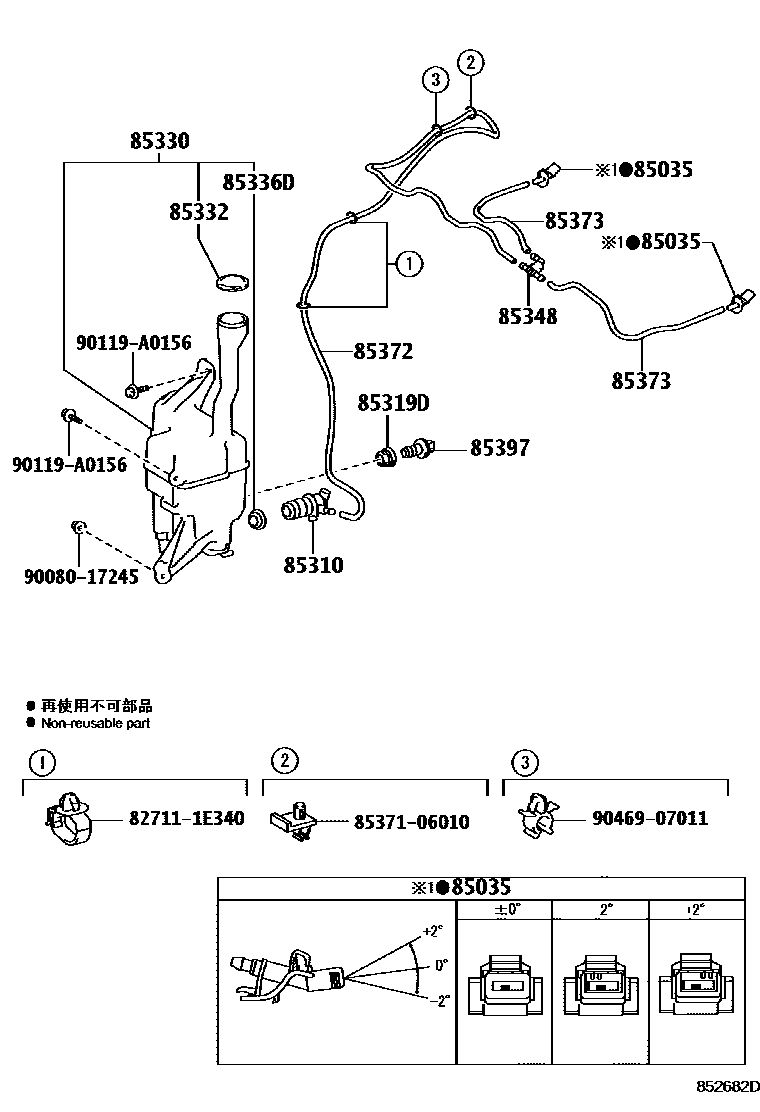

Toyota CAMRY — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-30150×2i201409

ANGLE +2

main85381-30160×2i201109-201409

ANGLE -2,ANGLE -2

main85381-33080×2i201109-201409

ANGLE 0

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-06070i201411

main85330-60190i201109-201409

85319DPACKING, FRONT WASHER

main85319-AA020i201109-201409

85330JAR ASSY, WINDSHIELD WASHER

main85315-06220i201109-201409

85332CAP, WINDSHIELD WASHER JAR

main85386-0C010i201109-201409

85336DPACKING, WINDSHIELD WASHER JAR

main85336-60300i201109-201409

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85321-08010i201109-201409

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85374-06160i201109-201409

L=2285

main85374-06180i201409

L=2062

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90068-33161×2i201109-201409

L=465

main90068-33247i201409

L=660,LH

main90068-33248i201409

L=280,RH

85397SWITCH ASSY,LEVEL WARNING

main85397-AA040i201109-201409

827111E340WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E340

8537106010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-06010

9008017245

main90080-17245

90119A0156

main90119-A0156

9046907011

main90469-07011

15 parts on this diagram · 2 diagrams in section

WINDSHIELD WASHER for Toyota CAMRY

This section contains 15 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota CAMRY. Key components include: NOZZLE SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, PACKING, FRONT WASHER, JAR ASSY, WINDSHIELD WASHER, CAP, WINDSHIELD WASHER JAR.
